Caravan Doors, Door Locks, Handles, Blinds & Parts

Find the right caravan door, lock, handle, blind, hinge, access door or replacement part by matching the door family, cut-out size, hinge side, lock type and existing hardware before ordering.

Shop Caravan Doors & Parts

Choose complete entry doors, access doors and boot doors
Match Camec, Aussie Traveller, Dometic, Milenco, Thetford and Coast parts
Check door locks, handles, barrels, keys, latches, hinges and blinds
Use fit checks for cut-out size, hinge side, radius corners and lock family

Shop Doors, Locks And Door Parts

Use the old door, lock or fitting as your reference, then choose the closest matching door section below.

Camec 3-Point Lock Parts

Quick Guide To Choosing Caravan Doors And Locks

Have the old door or lock in front of you before choosing parts. Measure the outside frame and cut-out, note the hinge side from outside the caravan, and take a clear photo of the lock, handle, barrel and catch. These details usually decide whether you need a complete door, a lock body, a handle kit, a barrel, a blind or an access-door part.

Replacing the whole door? Measure before choosing

For a full entrance-door replacement, start with caravan doors, boots and parts and measure the cut-out as well as the outside frame. Also check hinge side, corner style, colour, wall depth and whether the door includes a screen, blind or vent. Camec/Odyssey and Aussie Traveller doors have different generations, sizes and corner styles, so the old door is the best reference.

Older Camec caravan door styles and generations

Fixing a lock? Match the lock family first

If the door will not lock, latch or open cleanly, identify the lock family before buying parts. A Camec 3-point lock, Trimatic lock, Panorama lock, Dometic/CARAD lock, Milenco Columbia lock, Jayco camper lock and Thetford/Zadi service-door lock use different parts. Use door locks and catches for the broad range, then narrow the choice by the old lock body, handle shape, barrel, latch and catch-pin position.

Camec 3-point caravan door lock example

Camec 3-point locks need the exact part

Camec 3-point parts are common, but they are not all the same part. Before ordering from Camec 3-point lock parts, decide whether you need the main lock body, a complete lock kit, outer handle, inner handle, barrel and key, catch pin, strike plate or remote latch. Left/right hinge and door-frame depth can change the answer. The Camec caravan doors guide and the Camec lock spare parts diagram are useful checks before guessing.

One-Key only works with compatible locks

Camec One-Key can be handy when you want matching keys across compatible doors, boots, water fillers and access locks. It does not make every old lock compatible. Check the lock housing and barrel style first, then use One-Key solutions and the Camec One-Key guide to confirm the right barrel or adapter.

Camec One-Key barrel overview

Blinds and access doors are separate checks

Door blinds are usually matched to the door model and size. Measure the blind opening and frame before ordering door blinds, especially for Milenco Columbia, Camec Odyssey and Aussie Traveller styles. Access doors are separate again: match the cut-out, hinge side, colour, service-door type and lock/barrel before choosing from access doors.

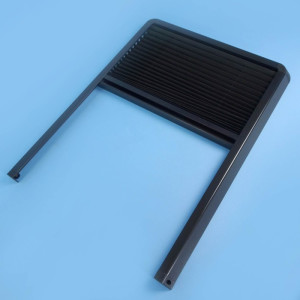

Milenco Columbia caravan door blind example

Find The Door Part You Need

Most caravan door orders start with one decision: replace the complete door, repair a lock, match a Camec 3-point part, measure a blind, or identify access-door hardware.

Replace A Complete Door For full entrance doors after checking opening size, overall frame size, corner radius, hinge side and colour. Shop doors Repair Locks & Handles For lock bodies, outer handles, inner handles, barrels, keys, latches, catches and striker parts. Shop locks Camec 3-Point Lock Parts Camec lock parts are left/right and part-specific. Check whether you need a main lock, kit, handle, barrel, catch pin or latch. Find Camec parts Measure Before Ordering For complete doors and blinds, measure the opening, frame, blind width/height and wall depth before choosing a product. Check measurements Diagrams & Guides Use Camec guides, One-Key instructions and spare-parts diagrams when identifying old lock or door parts. View guides

Popular Caravan Door Locks, Handles & Parts

View Door Locks & Catches

Popular

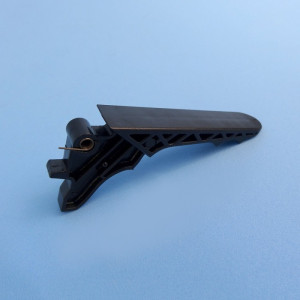

Outer Handle with Spring - Strengthened Design - Suits Camec 3-Point Door Locks

Camec 3-Point Main Door Lock - Left-Hand Hinge / Viewed from Outside / One-Key Compatible

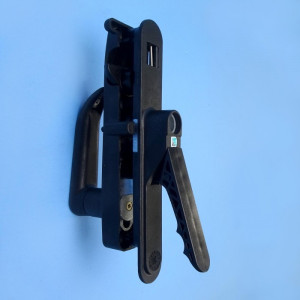

Camec 3-Point Main Door Lock - Right-Hand Hinge / Viewed from Outside / One-Key Compatible

(23)

$165$115

In Stock

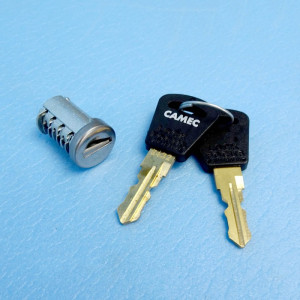

Lock Barrel & Key - Original Style / One-Key Compatible - Suits Camec 3-Point Door Locks

(12)

$34$25.95

In Stock

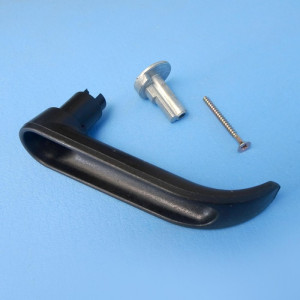

Inner Handle Kit - Suits Camec 3-Point Door Locks

(21)

$75$56.95

In Stock

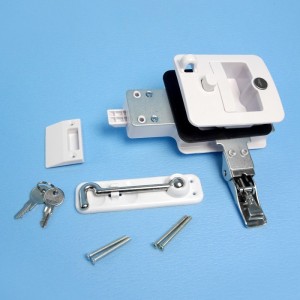

Door Lock Set - White - Suits Jayco Camper Trailers from 2013

(1)

$55.95

In Stock

Door Blind - Suits 1750mm-High Milenco Columbia Doors

(5)

$105

In Stock

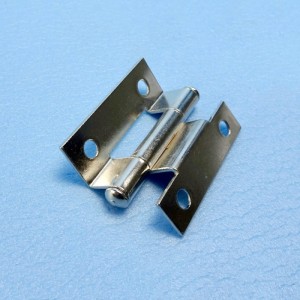

DIY Door Hinge Pair - Suits Camper Trailer Doors

(5)

$8.75

In Stock

Complete Door, Lock, Blind Or Access Door?

Complete doors, lock repairs, blinds, hinges and access-door parts solve different problems. Match the door family before choosing parts.

Door choice	Best for	Brand and style checks	Check carefully
Complete entrance doors	Replacing a damaged, leaking or outdated main caravan door.	Camec, Aussie Traveller, Coast and other complete door ranges cover different sizes and corner styles.	Check cut-out size, overall frame size, hinge side, radius corners, colour, wall thickness and whether the door includes blind/screen features.
Locks, handles and barrels	Fixing a door that will not lock, latch, open cleanly or match existing keys.	Camec 3-point, Trimatic, Panorama, Jayco, Milenco and Dometic/CARAD locks vary by family.	Confirm left/right hand, lock body shape, barrel/key type, inner/outer handle and catch-pin position before ordering.
Door blinds and screens	Replacing a broken or worn blind on a caravan entry door.	Milenco, Aussie Traveller and door-specific blind systems have different sizes and fitting styles.	Measure visible opening, frame width and blind height. A window blind guide may help, but door blinds are not always interchangeable.
Hinges, catches and seals	Repairing movement, rattles, closing issues, missing pins, catches or worn seal points.	Hinges, catches, pins, hook catches, striker plates and seals are usually model-specific.	Match the old part visually and by measurement. Similar-looking catches and pins can have different depths.
Access and service doors	Replacing boot, water filler, cassette, storage or service doors and their locks.	Thetford, Dometic/CARAD, Zadi and general access-door categories cover service-door jobs.	Access doors are not the same as entry doors. Check cut-out, hinge side, lock/barrel and colour.

Check Door Size, Hinge Side And Lock Family

Caravan door mistakes are usually measurement or identification mistakes. Check the door family before ordering locks, blinds or a complete replacement.

Common door jobs

Complete entry doorMeasure cut-out, overall frame, corner radius, hinge side, colour and wall depth.
Camec 3-point lockConfirm left/right hinge, main lock vs complete kit, outer/inner handle and barrel/key needs.
Access doorMatch cut-out size, frame, colour, hinge side, lock barrel and service-door type.
Door blindMeasure blind frame/opening and confirm the blind system suits the door model.

Check before ordering

Photograph the existing door, lock and label before removing parts.
Measure both the opening/cut-out and the outside frame size.
Confirm hinge side and whether the product convention is from inside or outside before choosing left/right parts.
Match the lock family first: Camec 3-point, Trimatic, Panorama, Dometic/CARAD, Milenco, Jayco or Thetford/Zadi.
For lock repairs, decide whether you need a complete lock, main lock body, outer handle, inner handle, barrel/key, catch pin, strike plate or remote latch.
For One-Key setups, check barrel/key compatibility before replacing mixed lock parts.

Match The Door Brand And Model

Door parts are often brand and generation specific. Start with the door brand, then confirm the exact part by size, shape and product notes.

Door brand or model	Use for	Check carefully	Best next step
Camec / Odyssey / Invictus	Complete doors, 3-point locks, handles, barrels, catch pins and Camec-specific replacement parts.	Left/right hinge, Odyssey/Aero/Invictus generation, lock body and cut-out size matter.	Start with the Camec guide, 3-point category and diagrams.
Aussie Traveller / ATRV	2-radius and square caravan doors plus current Aussie Traveller door support.	Door size, corner style, colour and generation can change fit.	Start with Aussie Traveller door categories and guide.
Dometic CARAD	Dometic/CARAD door parts, barrels, keys and service-door repairs.	Lock barrel/key and model-family compatibility matter.	Start with Dometic CARAD parts.
Milenco Columbia	Door blinds, barrels, keys and Columbia door service parts.	Blind and lock parts are not universal across door styles.	Start with Milenco Columbia parts.
Thetford / Zadi access doors	Cassette, service and access-door locks, barrels, keys and replacement parts.	Access-door parts need cut-out, lock and barrel checks.	Start with Thetford access-door parts.
Coast / Jayco camper locks	Coast 4 Point doors and Jayco camper trailer door lock replacement.	Model year, colour and camper/entry-door type matter.	Use Coast/Jayco product specs.

Need To Identify A Door Or Lock?

If you already have a caravan door, start with the door brand, hinge side, lock family, cut-out size and existing hardware. These guides and diagrams help confirm what fits.

Guides & Diagrams

Helpful when you are identifying doors, lock families and replacement parts.

Guide Camec Caravan Doors Guide Identify Camec/Odyssey door styles and matching parts. Read Guide How To Install The Camec One-Key System One-Key setup help for matching keys across compatible locks. Read Diagram Camec Lock Spare Parts Diagram Diagram for Camec lock parts and ordering reference. Open Guide Aussie Traveller Windows And Doors Help for Aussie Traveller door and window parts. Read Guide Guide To Caravan Window Blinds Useful background when comparing blind styles and fit. Read

Shop The Right Door Section

Once you know the job, go straight to doors, locks, Camec parts, blinds or access-door repairs.

Shop Caravan Doors, Boots & Parts Main door and parts category. Shop Shop Door Locks & Catches Locks, handles, latches, barrels and catches. Shop Shop Camec 3-Point Lock Parts Camec lock bodies, handles, barrels, pins and parts. Shop Shop Door Blinds Replacement blinds and door privacy parts. Shop Shop Access Doors Service, boot, cassette and access-door options. Shop

Still Deciding Which Door Or Lock Fits?

View All Guides

These guides help identify Camec doors, One-Key barrels, Aussie Traveller parts and blinds when the old part is hard to match from the product list alone.

Caravan Door & Lock FAQs

Should I replace the whole caravan door or just the lock?

If the frame, screen, blind or door body is damaged, a complete door may be needed. If the issue is key, handle, latch or catch related, start with the lock and door-parts sections.

How do I know if I need a left-hand or right-hand caravan door lock?

Check the product notes carefully and compare them with your existing door before ordering. Hinge-side conventions can vary, so use photos and the old part as the reference point.

Can I replace just the caravan door handle?

Often yes, if the lock body and catches are still working. Match the lock family first, then choose the correct inner handle, outer handle or handle kit.

Are Camec 3-point lock parts interchangeable?

Not always. Camec 3-point parts include main lock bodies, complete kits, handles, barrels, latches, catch pins and striker parts. Match the exact part and left/right requirement.

How do I measure a caravan door or access door?

Measure the cut-out/opening, the outside frame size, hinge side, corner radius, wall depth and colour. Access doors also need service-door type and lock/barrel checks.

Can I key my caravan door, boot and water filler alike?

Some compatible locks can use One-Key barrels, but not every lock family is compatible. Check the One-Key guide and barrel product notes before ordering.
