Suburban SW5ECA Hot Water System Electric · 17.7L · 240V · White Door

Description

This Suburban is a 240V only water heater and has been WaterMark certified for the Australian market. The Suburban range of water heaters includes gas, 240V and gas/electric models and offers manual or 12V ignition. Manufactured in the USA featuring a steel tank with porcelain lining for an extended life and copolymer insulation jacket for superior heat retention.

These hot water systems fit under a seat or in the back of a cupboard, with a door and access from the outside of the RV.

The water inlet and outlet are at the rear, so allow some space for connections. This model is pre-fitted with a 240V plug for easy connection to a GPO in your RV.

Features

• Easy to replace anode rod for corrosion protection
• Pressure relief valve has a compression fitting to suit 1/2 inch copper pipe.

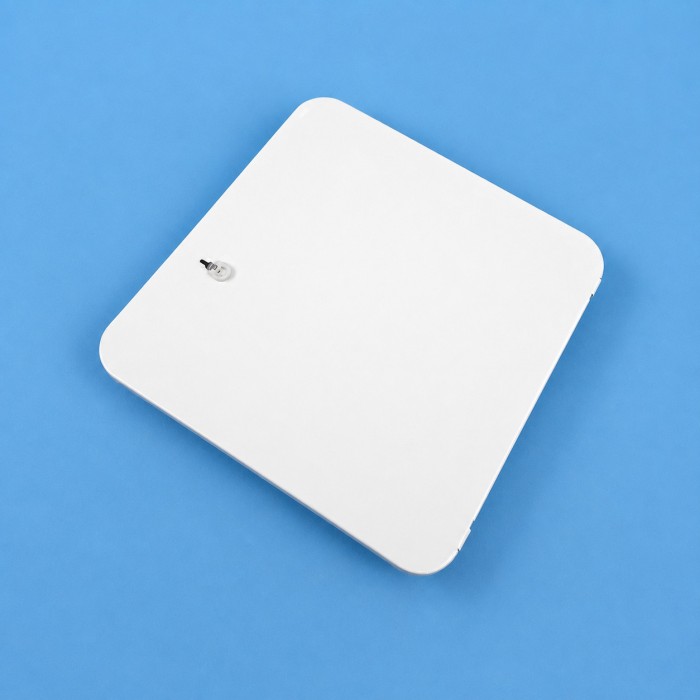

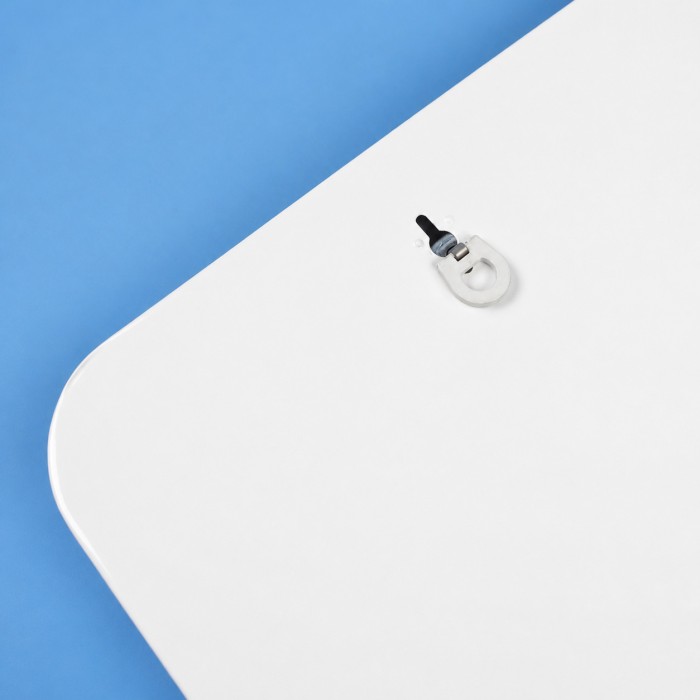

• The unit comes with the main tank as shown, plus a separate door.
• Easy access, foam tank insulation and high recovery rate.
• Range of spare parts available.
• 2 year warranty.

Specifications

• Manufacturer Part Number: 5251A
• Other Identifier: SW5ECA
• Brand: Suburban
• Barcode: 210546702
• Replaces older model SW5EA
• Heating source: 240 V
• Capacity: 17.7 L
• Recovery: 21 L/hr 45° rise
• Dimensions (mm): 320 (w) x 320 (h) x 450 (d) (plus pipe connections at rear)
• Includes door - Overall dimensions: 380 mm x 380 mm
• 240 V - 50 Hz AC, 1440 W - 6 A.
• Pressure relief valve: 700 kPa
• WaterMark certified
• Cold water inlet is 1/2 inch female BSPT
• Hot water outlet is 1/2 inch female BSPT
• Anode thread is 3/4 inch female NPT.
• The unit will slide in from the outside, in a cutout of 330 mm high and 325 mm wide.
• Shipping Weight: 12.11 Kgs.
• Shipping Dimensions: 47 cm x 34 cm x 34 cm.

Further Information

• View the related PDF: Suburban SW5ECA Hot Water System Manual

Video Guide

Our Comments

Key changes from previous SW5EA model:

• Change of pressure relief valve from 850 kPa to 700 kPa (this means the unit will expel more water on a heating cycle than the older 850 kPa valve)
• Now has a pre-fitted 240V power lead to allow direct connect to the GPO in the RV
• No more external 240V switch in the service area.

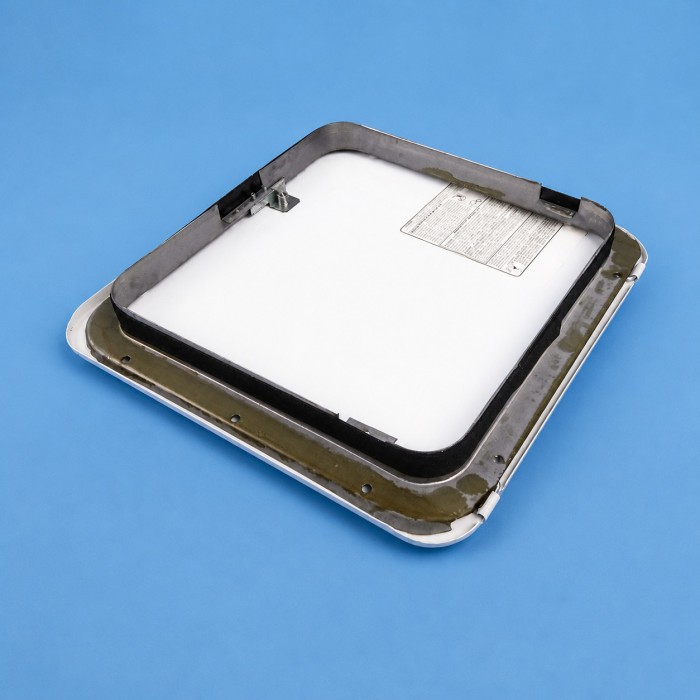

• Has the door flange/frame pre-fitted from factory

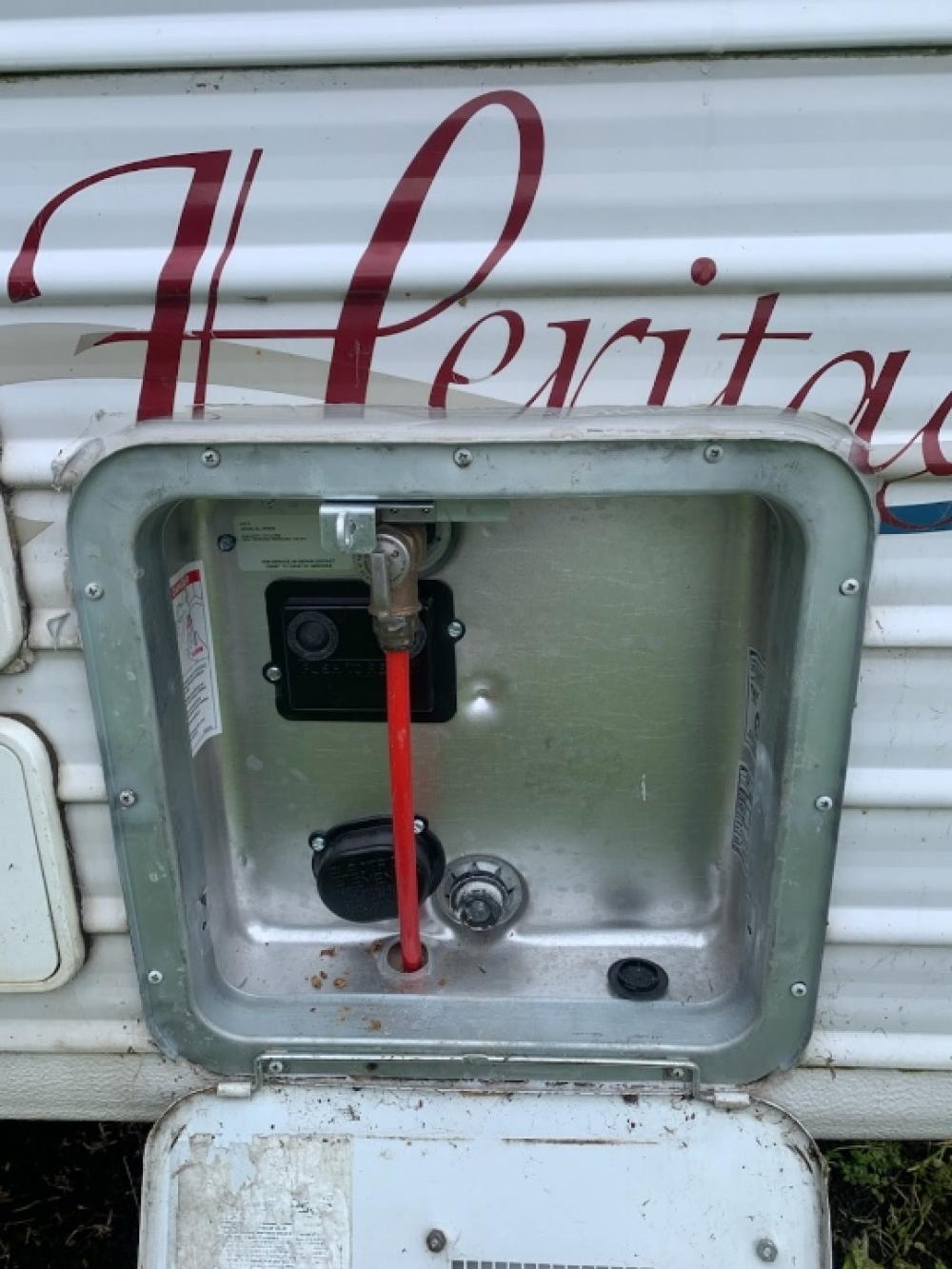

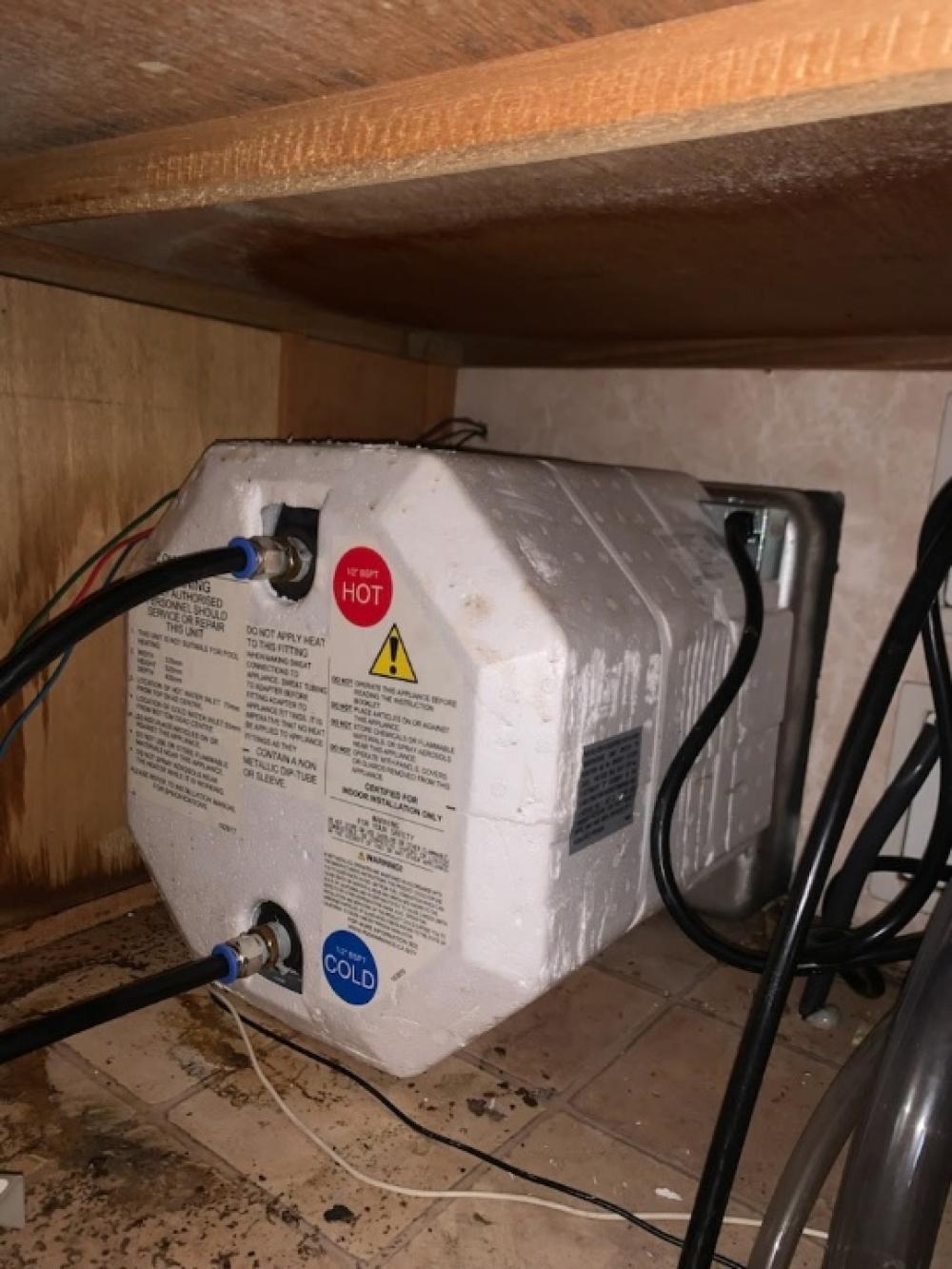

Community Photos
