Truma VarioHeat Eco Gas Air Heater Kit 2.8kW · Single Outlet · Cream Cowl

Description

The Truma VarioHeat Eco is a compact, lightweight propane gas air heater for caravans and motorhomes. It supersedes the Trumatic E2400 and provides 1.3 kW or 2.8 kW of heating output.

The included CP Plus digital control panel lets you set the desired room temperature and select Boost or Night mode. The heater automatically selects the required output level according to the difference between the set and measured temperatures, and can also circulate air without heating.

This cream-cowl kit is configured for one warm-air outlet. An optional Truma E-Kit can add 900 W or 1,800 W of electric heating when connected to 230-240 V power and is sold separately.

Features

• Automatically regulates between 1.3 kW and 2.8 kW according to the selected room temperature
• Boost mode for rapid warm-up
• Night mode operates at the lower heating level for quieter overnight use
• Circulating-air mode operates the fan without heating
• Compact, lightweight heater for recreational vehicles
• Configured for a single warm-air outlet; a second-outlet kit is available separately
• 2 year warranty.

Specifications

• Manufacturer Part Number: 37401-01
• Other Identifier: 39382-02
• Brand: Truma
• External Cowl: Cream
• Application: Recreational vehicles, including caravans and motorhomes
• Gas Type: Propane LPG, vapour phase only
• Operating Pressure: 2.75 kPa
• Test Point Pressure: 2.00 kPa
• Heating Output: 1.3 kW (Level 1), 2.8 kW (Level 2)
• Thermal Efficiency: 86.4% (Level 1), 84.3% (Level 2)
• Gas Consumption: 90 g/h (Level 1), 193 g/h (Level 2)
• Air Flow Rate: 85-175 m³/h
• Power Supply: 10.5-16 V DC (12 V nominal)
• Operating Current at 12 V: 0.85-3.65 A
• Standby Current: 0.004 A
• Control Panel Cable Length: 6 m
• Gas Inlet: 5/16 inch Male SAE
• Dimensions: 440 x 284 x 123 mm
• Heater Weight: 5.5 kg without peripherals
• Included Controls: CP Plus digital control panel and room temperature sensor
• Single-Outlet Kit Includes: Cream wall cowl, 1 m x 80 mm warm-air ducting, 1 m exhaust duct, 1 m combustion-air supply duct and one swivel warm-air outlet
• Shipping Weight: 8.66 Kgs.
• Shipping Dimensions: 37 cm x 52 cm x 45 cm.

Further Information

• View the related PDF: Truma VarioHeat Eco Gas Air Heater Kit Manual
• View the related PDF: Truma VarioHeat Eco Gas Air Heater Kit Operating Manual

Video Guide

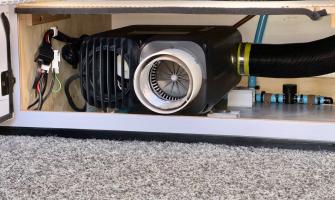

Community Photos

Connections

This product connects to other products that we sell. It has the following connections:

• MALE-SAE-5/16

Click to Show Connecting Products
