Supex Slightly Curved Awning Roof Rafter 25-35mm Curve / 1.5-2.5m Extension · White

Description

SUPEX curved awning tension roof rafter is a cost-effective way of stopping that rollout awning sagging and flapping. SUPEX have made an easy-to-fit adjustable curved roof rafter which can be added to an existing awning in just seconds.

Simple installation - simply attach bracket to van wall with 2 screws, extend awning to fully opened position making sure the key way is facing down, drill a hole in awning tube at appropriate height. Make sure to de-burr hole to avoid damage to awning fabric on closing.

The white powder-coated aluminium rafter is curved just the right amount to keep tension on the awning fabric. For a slightly larger curvature see Supex Acute Curved Rafter in the related products below. Smaller awnings need just one while larger awnings would benefit from 2 or even more. They take just seconds to place in position, and can even be used to hang light items off the ground, like drying that towel off.

This is the exact part called 'PC Rafter' by Dometic as suggested for the Dometic Power awning. You will need two for the Power Awning.

Features

• Suit Carefree Fiesta, A&E, Dometic 8300, 8500, 8700 and many other rollout type awnings
• Not suitable for Fiamma or box awnings.
• 1 year warranty.

Specifications

• Manufacturer Part Number: 563V
• Brand: Supex
• Barcode: 9343087000282
• The curve offset is approx 25 mm - 35 mm at a 2.4 m extension
• Aluminium - Powdercoat White
• Extend from 1.5 m to 2.5 m
• Wall bracket included (without screws)
• Outside Diameter (on larger section) 25.7 mm, Inside Diameter 23.4 mm
• Rounded top face to reduce wear on awning fabric, COAST version has square cross section
• Curvature is slightly more than the COAST version of this rafter
• Shipping Weight: 1.30 Kgs.
• Shipping Dimensions: 8 cm x 8 cm x 160 cm.

Our Comments

PLEASE NOTE: To work out the 25 mm curvature, extend the rafter out 8ft or 2440 mm. 25 mm is the distance measured from the underside straight line, to the underside of the rafter.

Rafters are sold individually, however we recommend using 1 rafter for awnings up to 11ft, 1 to 2 rafters for 12ft awnings, 2 rafters for awnings 13ft to 17ft, 3 rafters for use on awnings 18ft to 21ft and 4 rafters for awnings 22ft and longer.

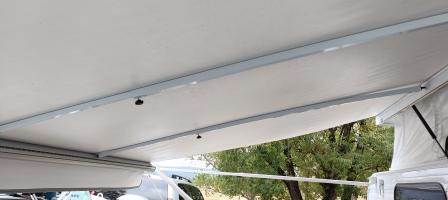

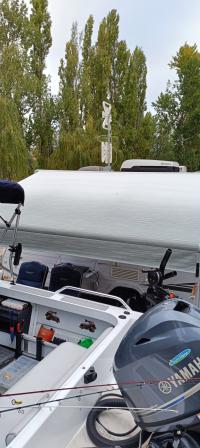

Community Photos
