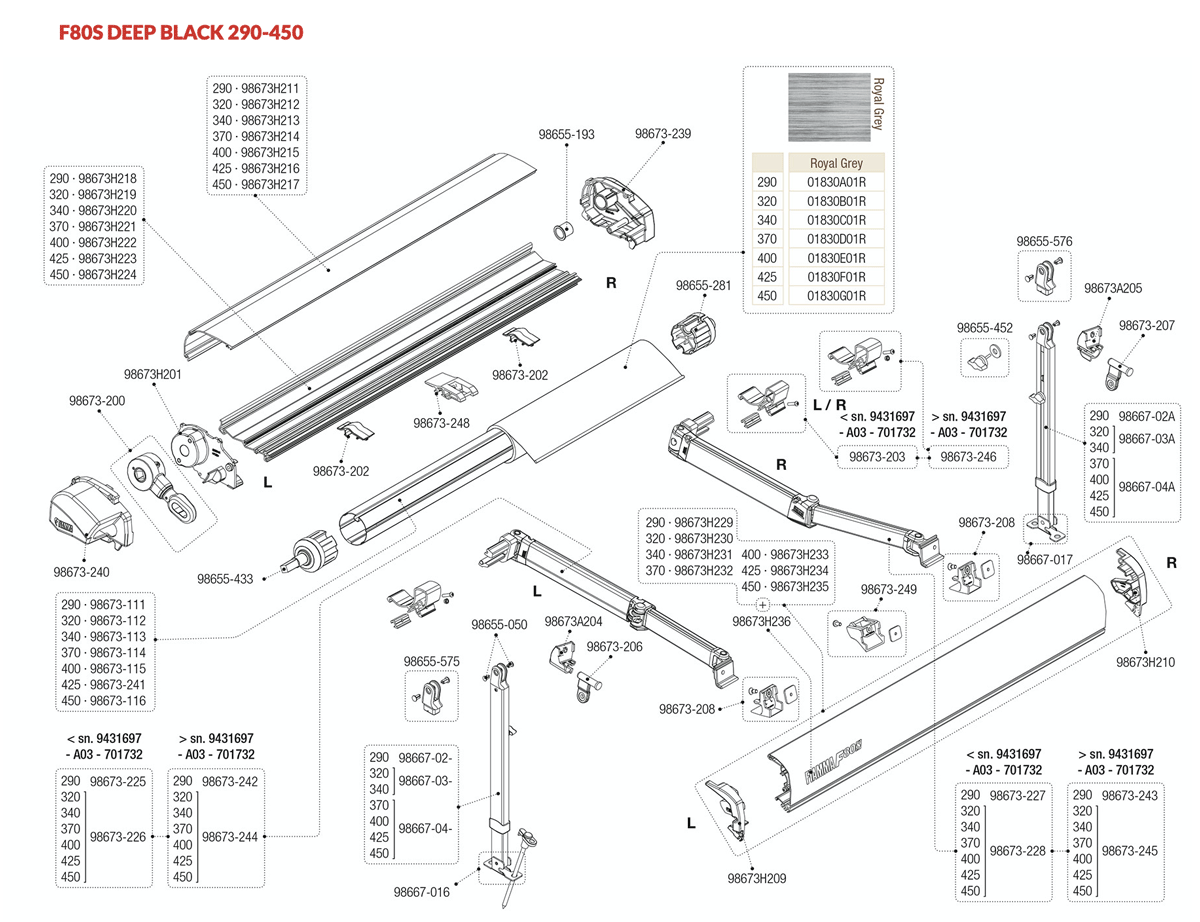

Spare Parts Diagram - Fiamma F80 S Deep Black 290-450 Awning

Key	Link	Model/Name
		98655-050 RIVET SNIP SNAP AWNING LEG END (2PC)
		98655-193 ROLLER TUBE BUSHING FOR AWNING(1PC)
		98655-281 ROLLER TUBE END CAP RIGHT D.60 F65S
		98655-452 SUPPORT LEG HAND-WHEEL FOR AWNINGS
		98655-575 LEFT LEG END PART F45S-F65S-F65
		98655-576 RIGHT LEG END PART F45 S
		98667-016 LEFT SUPPORT LEG FOOT
		98667-017 RIGHT SUPPORT LEG FOOT F45/F65
	Search	98667-02- LEFT SUPPORT LEG F65 S 260/290
	Search	98667-02A RIGHT SUPPORT LEG F65 S 260/290
	Search	98667-03- LEFT SUPPORT LEG F65 S 320/340
	Search	98667-03A RIGHT SUPPORT LEG F65 S 320/340
	Search	98667-04- LEFT SUPPORT LEG F65S 370/400-F65L
	Search	98667-04A RIGHT SUPPORT LEG F65S 370/400-F65L
		98673-200 WINCH+SLOT CC 3:1 F80 S
		98673-202 ARM GUIDE FOR F80s
	Search	98673-203 INNER BRACKET F80 S
		98673-206 LEFT LEG KNUCKLE F80 S
		98673-207 RIGHT LEG KNUCKLE FF80 S
		98673-208 LEG STOP PLATE IN LEAD BAR F80 S
	Search	98673-225 LEFT ARM F80S 290 EXT.200
		98673-226 LEFT ARM F80S 320/450 EXT.250
		98673-228 RIGHT ARM F80S 320/450 EXT.250
		98673-239 RIGHT WINCH COVER F80S BLACK
		98673-240 L.H.END COVER F80S BLACKM
	Search	98673-242 LEFT ARM F80S 290 EXT.200 UP1
	Search	98673-243 RIGHT ARM F80S 290 EXT.200 UP1
		98673-244 LEFT ARM F80S 320/450 EXT.250 UP1
		98673-245 RIGHT ARM F80S 320/450 EXT.250 UP1
	Search	98673-246 INNER BRACKET F80 S
		98673A204 FIXING KIT FOR LEFT LEG F80 S
		98673A205 FIXING KIT FOR RIGHT LEG F80 S
	Search	98673H201 LEFT CASE END CAP F80S D.BLACK
		98673H209 LEFT LEAD BAR END CAP F80S D.BLACK
		98673H210 RIGHT LEAD BAR END CAP F80S D.BLACK
