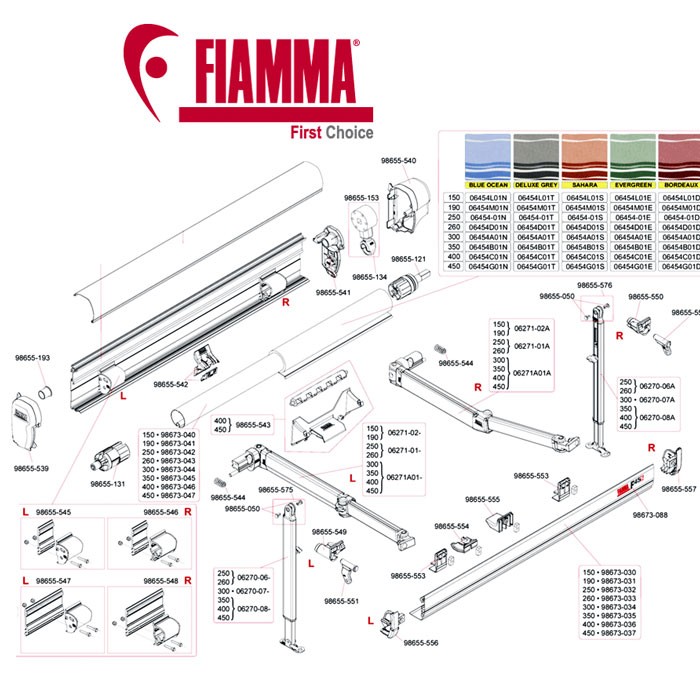

Spare Parts Diagram - Fiamma F45 S 250 - 450 Awning - Polar White

F45 Part Diagram
F45 Part Diagram
1 / 2
  • Part number example 250 - 062370-06, the actual part number is 062370-06 to suit the 250cm awning.
  • References to 450 (4.5m awnings) on this page are not for 4.5m L awnings imported into Australia
    Key Link Model/Name
    View 06270-06-
    LEFT SUPPORT LEG F45 S 250
    View 06270-06A
    RIGHT SUPPORT LEG F45 S 250
    View 06270-07-
    LEFT SUPPORT LEG F45 S 300
    View 06270-07A
    RIGHT SUPPORT LEG F45 S 300
    View 06270-08-
    LEFT SUPPORT LEG F45 S 350/450
    View 06270-08A
    RIGHT SUPPORT LEG F45 S 350/450
    View 06271-01-
    LEFT ARM F45 S 250/260 EXT.200
    View 06271-01A
    RIGHT ARM F45 S 250/260 EXT.200
    View 06271A01-
    LEFT ARM F45 S 300-450 EXT.250
    View 06271A01A
    RIGHT ARM F45 S 300-450 EXT.250
    View 98655-050
    RIVET SNIP SNAP AWNING LEG END (2PC
    View 98655-121
    STOP DEVICE D.48 RIGHT
    View 98655-131
    PRESTO FIX END CAP D. 48
    View 98655-134
    WINCH SLOT POLAR F45 I/TI/S - F65S
    View 98655-153
    WINCH+SLOT POLAR F45I/F45TI/F45S
    View 98655-193
    ROLLER TUBE BUSHING FOR AWNING(1PC)
    View 98655-539
    L.H.END COVER F45 S POLAR
    View 98655-540
    R.H.END COVER F45 S POLAR
    View 98655-541
    RIGHT END CAP F45 S
    View 98655-542
    RAFTER FIXING KIT CASE BOX F45S/ L
    		98655-543
    ROLLER TUBE SUPPORT F45 S
    View 98655-544
    SPRING FOR INNER BRACKET F45 S
    View 98655-545
    L.H.CASE INNER BRACK.F45S (250-400)
    View 98655-546
    R.H.CASE INNER BRACK.F45S (250-400)
    View 98655-547
    L.H.CASE INNER BRACKET F45S 450
    View 98655-548
    R.H.CASE INNER BRACKET F45S 450
    View 98655-549
    FIXING KIT FOR LEFT LEG F45 S
    View 98655-550
    FIXING KIT FOR RIGHT LEG F45 S
    View 98655-551
    LEFT LEG KNUCKLE F45 S
    View 98655-552
    RIGHT LEG KNUCKLE F45 S
    View 98655-553
    LEG STOP PLATE IN LEAD BAR F45S
    View 98655-554
    RAFTER FIXING KIT IN LEADBAR F45S
    		98655-555
    LEAD BAR GUIDE F45 S
    View 98655-556
    LEFT LEAD BAR END CAP F45 S POLAR
    View 98655-557
    RIGHT LEAD BAR END CAP F45 S POLAR
    View 98655-575
    LEFT LEG END PART F45 S
    View 98655-576
    RIGHT LEG END PART F45 S
    		98673-032
    LEAD BAR PAINTED POLAR F45 S 250
    		98673-033
    LEAD BAR PAINTED POLAR F45 S 260
    		98673-034
    LEAD BAR PAINTED POLAR F45 S 300
    		98673-035
    LEAD BAR PAINTED POLAR F45 S 350
    View 98673-036
    LEAD BAR PAINTED POLAR F45 S 400
    		98673-037
    LEAD BAR PAINTED POLAR F45 S 450
    • Show Fiamma F45 S Awning Parts
    Show All Fiamma F45 S Awning Parts
    51 Products
    Show Fiamma F45 Awning Diagrams
    Show All Fiamma F45 Awning Diagrams
    14 Diagrams
