Fiamma F45s Wall-Mount Awning 3m · Polar White Case / Royal Grey Fabric · 2.5m Projection

Description

The Fiamma F45s is a wall-mounted cassette awning with a protective case for campervans, motorhomes and caravans.

These easy-to-use awnings can be operated by a single person and allow you to double your living space in under a minute to make the most of the outdoors. Fully enclosed in a solid case when stowed and with no hardware running down the side of the vehicle, these are great for use on campervans, motorhomes or any vehicle with a vertically curved wall. From shade screens and sidewalls to a complete annex solution, Fiamma's incorporated design offers a range of options and accessories to customise your outdoor area.

Set Up

A detachable winder is used to extend the awning. Winding allows the front face of the sturdy case to extend horizontally, like a verandah, pulling the fabric out as it goes. When extended, you then unclip the telescopic legs from within the front face, and they are either pegged to the ground or clipped to the base of your RV with the included lower leg brackets.

All awnings come complete with the Standard Bracket Kit, which allows the awning to be attached to a vertical face on a caravan, motorhome or gooseneck. If the awning is being attached to a curved surface or roof rack, you will need to purchase a separate bracket kit or make a mounting that will accept the Standard Brackets. See the BRACKETS section for options.

Anti-Flap Options

Fiamma offers a range of anti-flap solutions. Straight and curved roof rafters add tension to the canopy to help reduce flapping and water pooling.

The Fast Clip system provides the greatest strength and enables full side walls to be added to form a complete enclosed area. This system is included with Fiamma Privacy Room Kits.

Operating Conditions

The F45s is designed primarily for sun protection. Retract the awning in wind, rain or snow. If light rain is unavoidable, lower one support leg to provide fall for drainage, keep the legs secured and do not allow water to pool on the canopy.

Features

• Durable Case - Powder coated metal case adds a sleek look to your vehicle while providing extra protection when not in use.
• 6 mm Double Guide - Allows you to use multiple accessories like screens, lights, storage organisers & tie-down kits.
• Presto Fix - Enables instant realignment of front bar on closing if needed.
• One Way Drive - Means a perfect close every time.
• Dual Shock Absorber - Protects both your awning and vehicle.
• Extra Strong Arms - Reinforced arms with 3.5 mm cable provide a fabric tension up to 32 kg.
• Anti-Scratch Canopies - With an anti-scratch coating on both sides of the canopy, they are hardwearing and UV-resistant to stop fading.
• 1 year warranty.

Specifications

• Manufacturer Part Number: 06280A01R
• Brand: Fiamma
• Barcode: 8004815351717
• Case Colour: Polar White
• Fabric Colour: Royal Grey
• Tension Rafter Included: No
• Standard Wall-Mount Brackets Included: Yes
• Case Length: 3,080 mm
• Case Height: 136 mm
• Case Thickness: 85 mm
• Fabric Length: 2,920 mm
• Awning Extension: 2,500 mm
• Shade Area: 7.3 m²
• Weight: 23 kg
• Shipping Weight: 45.00 Kgs.
• Shipping Dimensions: 325 cm x 30 cm x 30 cm.

Further Information

• View the related PDF: Fiamma F45s Awning Installation and Usage Manual

Video Guide

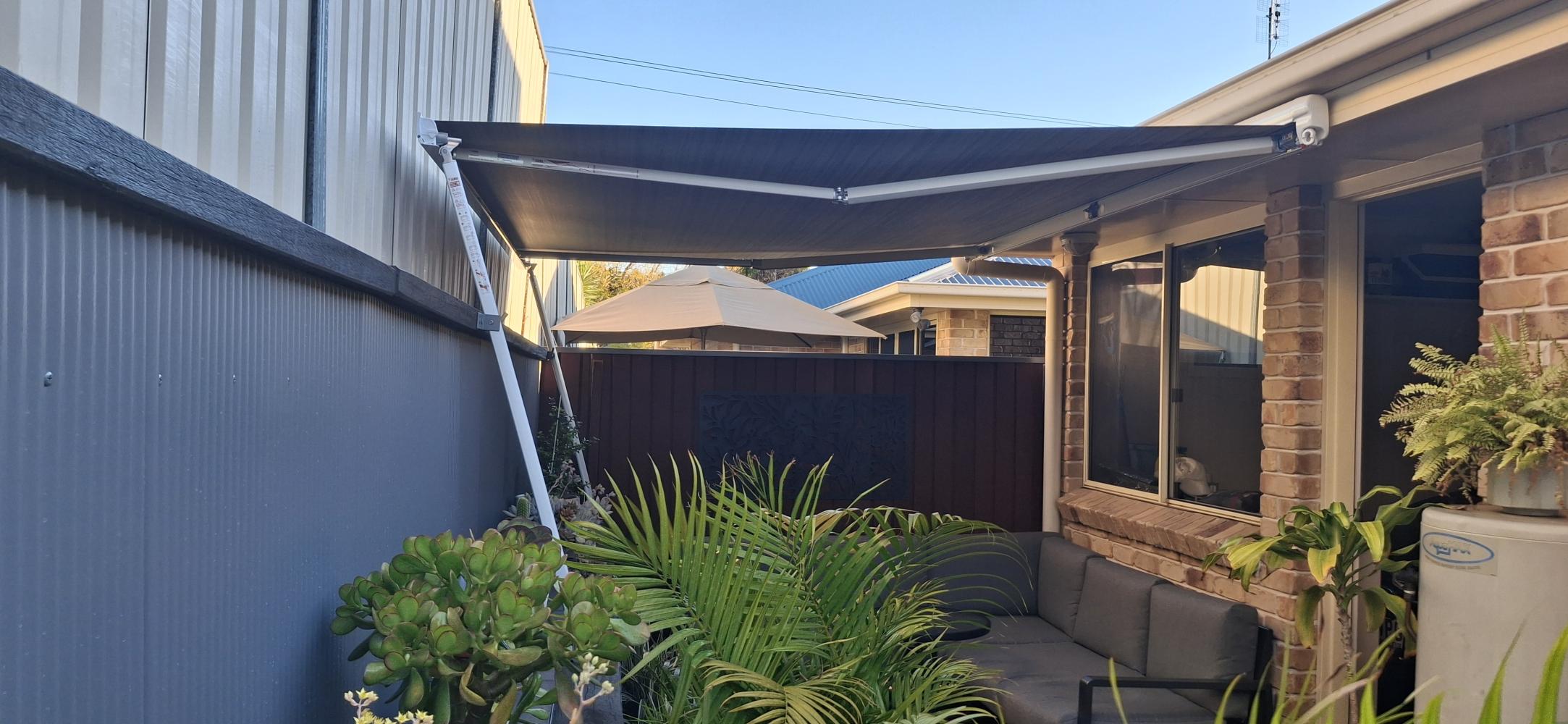

Community Photos
