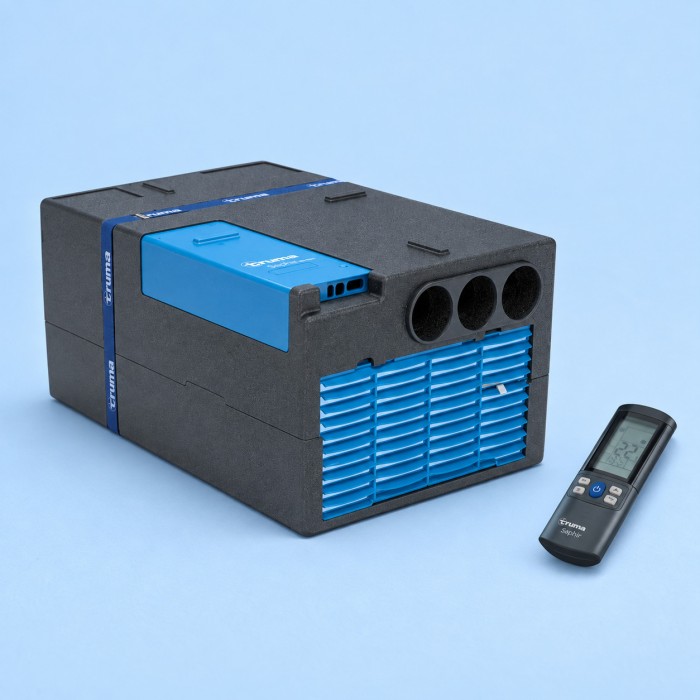

Truma Saphir Comfort RC Under-Bunk Air Conditioner 2.4kW Cooling / 1.7kW Heating

Description

A one-piece, ready-to-install air conditioner that can fit under a bed or cupboard with a vent to the outside and air is circulated within the RV through ducting (buy separately the length you need).

Thanks to its reversible cooling circuit, the new Saphir Comfort RC (Reverse Cycle) produces 2,400 watts of cooling and dehumidifying power and warmth with 1,700 watts of heating power at an outdoor temperature of over 4 °C. This is enough to efficiently cool vehicles up to 6.5 m in length to a pleasant temperature when it is hot outside and to heat up the vehicle on those cold nights.

The high-performance system requires around 4.2 A of current in heating or cooling mode.

The remote control will operate the air conditioner and an optional Truma CP Plus digital control panel can be connected with a cable for dual control of a Combi Heater/HWS and the air conditioner from the single control panel. See Related products below.

Features

• Extremely lightweight at only 23.5 kg
• For vehicles up to 6.5 m in length
• Automatic heating and cooling
• Extremely powerful cooling performance: 2.4 kW capacity
• Heating via heat pump: 1.7 kW capacity
• Most compact in its class
• Practical timer function

• Includes

• Installation kit (44070-kit) is included. It contains:
• 1 x 40040-29200: Circulation Air Intake Grill. The practical cover for concealing the circulated air intake cut-out within the interior. Cut-out dimensions: 350 mm x 190 mm; external dimensions: 380 mm x 230 mm.
• 3 x 40241-51: Clip US, Agate grey, diameter 65 mm, for fixing cold air or insulating ducts to wall
• 3 x 40171-05: End Outlet, Black, with air throttle, suitable for T-Pipe LT, end outlet nut EM and 65 mm diameter ducts
• 3 x 40181-01: End Outlet Nut EM
• 2 year warranty.

Specifications

• Manufacturer Part Number: SAPHIR R/C-KIT
• Brand: Truma
• Barcode: 4052816024912
• 240 V operation
• Best for vehicle length: up to 6.5 m (21 ft)
• Cooling Capacity: 2.4 kW
• Heating Capacity: 1.7 kW
• Max Airflow: 380 m3/h (105 L/s)
• Blower Speeds: 3 + Sleep Mode
• 628 mm x 400 mm x 290 mm
• Operating Temperature Range: +4 to +43 °C - heating is not possible when outside temperature is less than +4 °C
• 60 mm ducting must be purchased separately depending on your requirements
• Shipping Weight: 34.60 Kgs.
• Shipping Dimensions: 55 cm x 60 cm x 60 cm.

Further Information

• View the related PDF: Truma Saphir Comfort RC Under-Bunk Air Conditioner Installation Instructions
• View the related PDF: Truma Saphir Comfort RC Under-Bunk Air Conditioner Operating Manual
