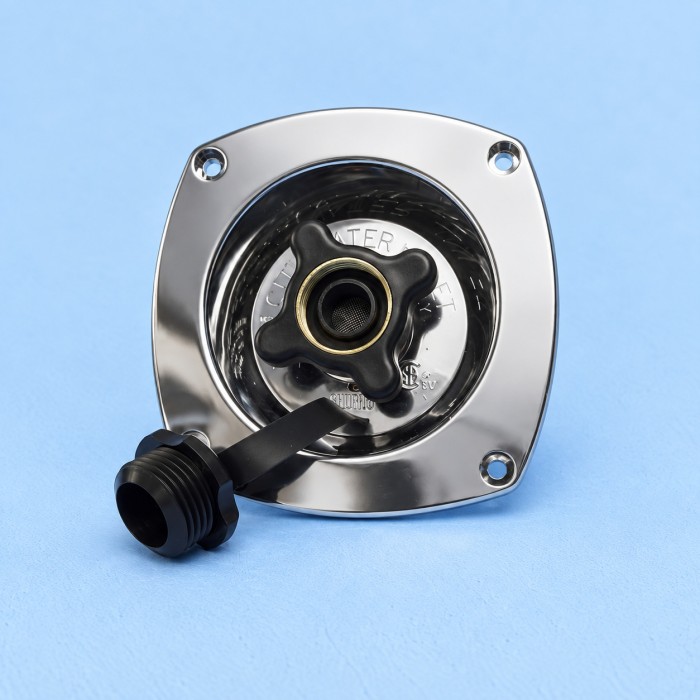

SHURflo Mains Water Inlet & Pressure Regulator 50psi / Chrome

Description

SHURFLO mains pressure regulator water inlet, chrome, USA female NPT 3/4, has a built-in regulator that helps protect the water system from high-pressure damage.

Features

• The filter screen also prevents dirt and foreign substance buildup.
• The built-in check valve prevents water loss when the pump is on.
• The water enters the inlet via a 3/4 inch NPT USA female thread.
• A screw-on protection cover is also included.
• The fitting requires a hole of about 85 mm diameter, and extends back around 80 mm with a male 1/2 inch BSP thread.
• 1 year warranty.

Specifications

• Manufacturer Part Number: 183-020-04
• Brand: SHURflo
• Barcode: 054568571465
• Pressure is reduced to a nominal 50 psi.
• Maximum inlet pressure: 125 psi (8.6 bar).
• Outside diameter approx 100 mm, with four externally fitted screws to attach to outside wall.
• Inlet thread is a non-standard Australian thread - female USA NPT 3/4 inch.
• Do not connect directly to plastic or rigid pipe. When connecting to rigid plumbing, use at least 30 cm of 13 mm ID flexible high-pressure tubing to isolate vibration and stress.
• Shipping Weight: 300 grams.
• Shipping Dimensions: 13 cm x 15 cm x 11 cm.

Further Information

• View the related PDF: SHURflo Mains Water Inlet & Pressure Regulator Installation Instructions

Our Comments

Note: The inlet thread on this filler is not a standard Australian thread, and when purchasing you should consider purchasing one of the related USA NPT 3/4 inch threaded adapters shown in Related Products below.

Connections

This product connects to other products that we sell. It has the following connections:

• FEMALE-USA-3/4
• MALE-BSP-1/2-WATER
