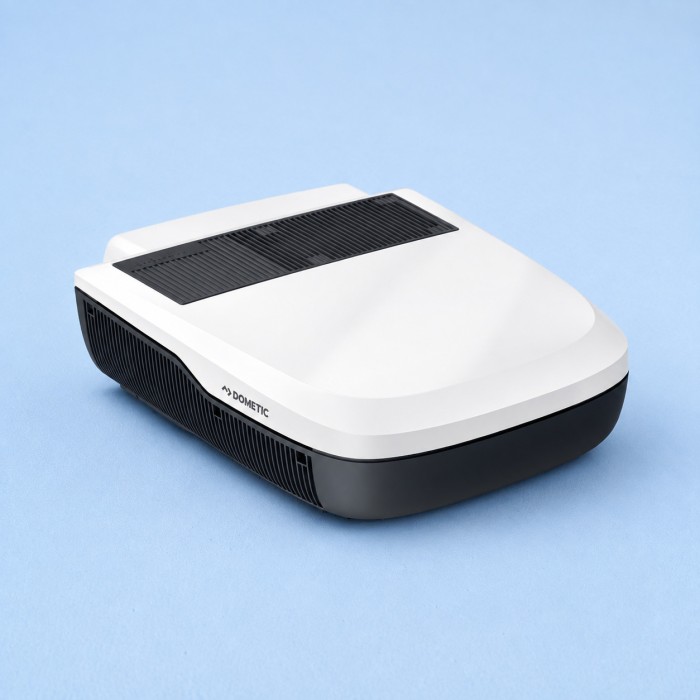

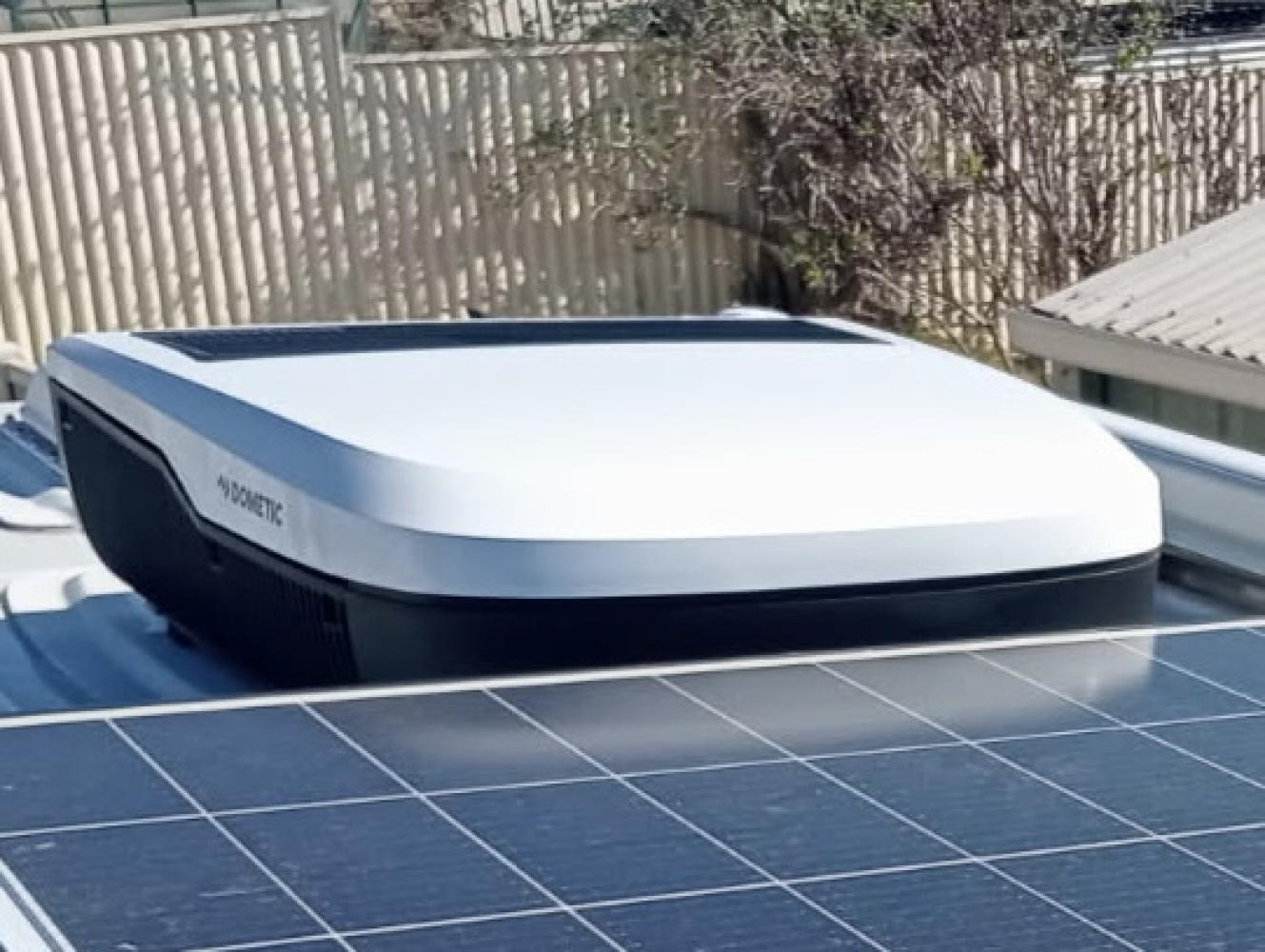

Dometic FreshJet FJZ7 Lite Rooftop Air Conditioner Kit with Electronic ADB 3kW Cooling / 2.3kW Heating

Description

The Dometic FreshJet FJZ7 Lite is a compact inverter rooftop air conditioner kit for caravans and motorhomes. This CaravansPlus bundle includes the 3.0 kW rooftop unit and the Dometic FreshJet FJZ electronic air distribution box (ADB), which provides the internal air outlets, touch controls, dimmable LED lighting, CleanAir purification and reusable filter.

Adaptive Power Mode lets you set a maximum current draw through the Dometic Power App, helping the air conditioner operate within a limited mains supply or manage energy use when supported by a battery and inverter system. Brushless motors, sleep mode and inverter compressor control reduce operating noise while delivering 2.3 kW reverse-cycle heating for cooler conditions.

Features

• 3.0 kW cooling and 2.3 kW reverse-cycle heating
• Variable-speed inverter compressor for efficient, smooth temperature control
• Adaptive Power Mode sets the maximum current draw through the Dometic Power App
• Reduced cooling current consumption - up to 15% lower than previous models
• Brushless fan motors and sleep mode for quieter operation

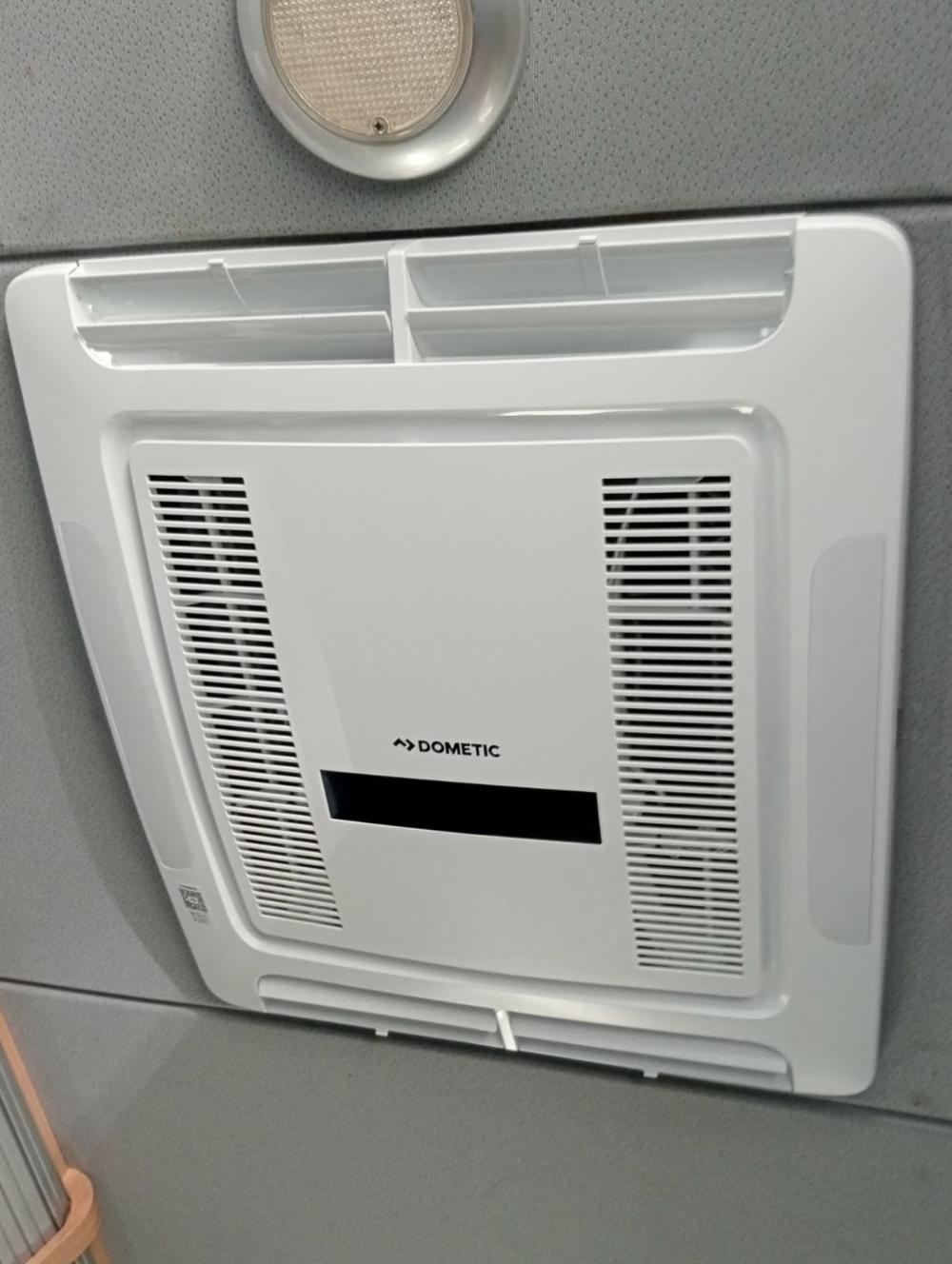

• Electronic FreshJet FJZ ADB included with touch controls and dimmable LED lighting
• Wi-Fi and Bluetooth connectivity for app control and monitoring
• CleanAir air purifier and reusable dust filter integrated into the ADB
• IPX5 rooftop-unit ingress protection
• Uses R32 refrigerant and increased recycled material content
• 3 year warranty.

Specifications

• Manufacturer Part Number: 9630000089
• Brand: Dometic
• Barcode: 936007549
• Supplied: FreshJet FJZ7 Lite rooftop unit and FreshJet FJZ electronic air distribution box
• Electrical rating: 220-240 V, 50-60 Hz
• Required fuse: 10 A
• Best for vehicle length: 6 m
• Cooling capacity: 3 kW, 5.8 A
• Heating capacity: 2.3 kW, 4.1 A
• Start-up current: < 6.9 A
• Max airflow: 449 m³/h
• Fan speeds: 5
• Operating ambient range: -2 to 52 °C; cooling is available above 16 °C
• Temperature setting range: 16 to 31 °C
• Max noise: < 70 dB(A)
• Connectivity: Wi-Fi and Bluetooth
• Rooftop dimensions: 702 x 225 x 752 mm (W x H x L)
• ADB dimensions: 518 x 48 x 579 mm (W x H x L)
• Roof opening: 360 x 360 mm or 400 x 400 mm
• Roof thickness: 25-60 mm (optional adaptors for up to 100 mm)
• Installed weight with ADB: 34 kg
• Shipping Weight: 30.60 Kgs.
• Shipping Dimensions: 120 cm x 80 cm x 40 cm.

Further Information

• View the related PDF: Dometic FreshJet Installation Instructions
• View the related PDF: Dometic FreshJet FJZ7 Lite Rooftop Air Conditioner User Manual
