Cool-J HB9000 Plus Under-Bunk Air Conditioner 2.6kW Cooling / 3.2kW Heating

Description

The Cool-J HB9000 Plus is a ducted under-bunk reverse-cycle air conditioner for caravans, RVs and motorhomes. It provides 2.6 kW cooling and 3.2 kW heating while keeping the roof clear, making it useful where roof space, overall height or roof loading limits a rooftop air conditioner.

Conditioned air is distributed through three duct outlets. A ducting kit is not included and is required for a new installation; 5 m and 10 m kits with different outlet colours are available separately. The air conditioner is controlled from the supplied digital wall panel, handheld remote or a smartphone through its built-in Wi-Fi connection.

The unit must be installed on the floor, with openings through the vehicle floor for its airflow and drainage arrangement. Allow at least 30 mm clearance on each side and 200 mm in front for filter access. Install it level where possible, with a maximum permitted angle of 10 degrees.

The reverse-cycle heat pump is supplemented by an electric heating element at low temperatures. Cooling, heating, dehumidification, fan, timer and sleep functions provide flexible climate control for insulated vehicle interiors up to 30 m³, typically caravans and RVs up to 6.5 m long.

Features

• Reverse-cycle heat pump with supplementary electric heating element
• Digital wall control panel, handheld remote and built-in Wi-Fi app control
• Cooling, heating, dehumidification and fan operating modes
• Timer and sleep functions
• Three duct outlets for distributing air through the vehicle
• One-piece EPP frame helps insulate heat, sound and vibration
• Under-bunk installation keeps roof space clear
• Uses R32 refrigerant
• AC power cord with Australian 10A three-pin plug included
• 2 year warranty.

Specifications

• Manufacturer Part Number: HB9000PLUS
• Brand: Cool-J
• Ducting kit: Not included; required for new installations
• Controls included: Digital wall panel with 7 m cable and handheld remote
• Power supply: 220-240 V / 50 Hz
• Electrical connection: Supplied with an Australian 10A three-pin plug for connection to a 230-240 V socket outlet; the unit is not connected by direct hardwiring
• Circuit and isolation: The supplying outlet and circuit must support the unit's maximum 5.1 A / 1,264 W input and provide full disconnection in the fixed wiring; the manufacturer does not specify a dedicated circuit
• Additional heating element: 500 W
• Rated cooling capacity: 2.6 kW (9,000 BTU)
• Rated heating capacity: 3.2 kW (heat pump plus electric element)
• Cooling consumption: 4.2 A / 945 W
• Heating consumption: 5.1 A / 1,264 W
• EER: 2.8
• COP: 3.3
• Maximum airflow: 350 m³/h
• Recommended vehicle size: Up to 6.5 m long / 30 m³ insulated interior volume
• Fan speeds: 3
• Operating temperature: -7 to +40 °C
• Compressor: GMCC vertical rotary type
• Refrigerant: R32
• Fan system: One motor with two fans
• Protection class after installation: IPX5
• Installation position: Floor mounted with required floor openings
• Minimum installation clearance: 30 mm on each side and 200 mm in front
• Maximum installation angle: 10°
• Dimensions: 734 L x 398 W x 296 H mm
• Weight: 29 kg
• Shipping Weight: 33.00 Kgs.
• Shipping Dimensions: 42 cm x 50 cm x 80 cm.

Further Information

• View the related PDF: Cool-J HB9000 Plus Under-Bunk Air Conditioner Manual

Our Comments

Warranty: 2 years for compressor and 1 year for other parts; for any non-human defects.

The remote is hidden in the polystyrene flap which makes up the insulation jacket.

Please Note: Fitting and installation instructions come with the unit, but it is advised a qualified installer (electrical contractor) undertakes the installation to avoid potential warranty issues. Horizontal installation only.

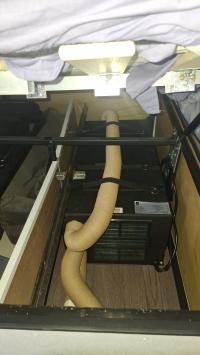

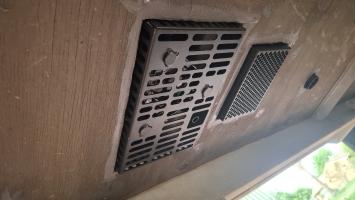

Community Photos
