AL-KO Premium Standard-Height Jockey Wheel 200mm Solid Wheel / 400kg Static Capacity

Description

ALKO's Premium range of jockey wheels is designed for general-purpose caravan and trailer applications. This standard-height model has a 200 mm solid tyre, with the larger wheel suited to manoeuvring on soft or uneven ground.

The zinc-plated 48 mm diameter tube has three clamping positions. A mounting clamp is not included.

Features

• Large heavy-duty wheel for easier manoeuvring on soft or uneven surfaces
• Compatible with AL-KO clamps for 48 mm tube clamp-type jockey wheels; clamp sold separately
• Zinc-plated finish for corrosion protection
• 1 year warranty.

Specifications

• Manufacturer Part Number: 628600
• Brand: AL-KO
• Static capacity: 400 kg
• Wheel size: 200 mm solid tyre
• Tube outside diameter: 48 mm
• Mounting: Clamp required (not included)
• Weight: 6 kg
• Maximum extension: 265 mm
• Closed ground clearance (G1): 262 mm from the centre of the drawbar
• Open ground clearance (G2): 522 mm from the centre of the drawbar
• Maximum ground-to-drawbar-centre height using the clamping positions: 697 mm
• Overall height open (H2): 832 mm
• Overall height closed (H1): 567 mm
• Finish: Zinc plated
• Shipping Weight: 6.88 Kgs.
• Shipping Dimensions: 68 cm x 21 cm x 11 cm.

Our Comments

Important - Jockey wheels are not designed to be used to manoeuvre in their extended position. The strength of the shaft is greatly reduced in the extended position and it is likely to bend or break during movement. The correct method is to lower as far as possible without preventing the wheel from pivoting before moving. Lowering the jockey wheel will make it safer and easier to manoeuvre.

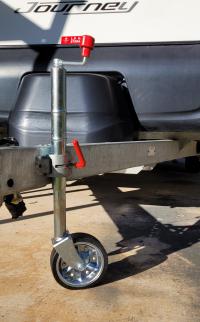

Community Photos
