Description

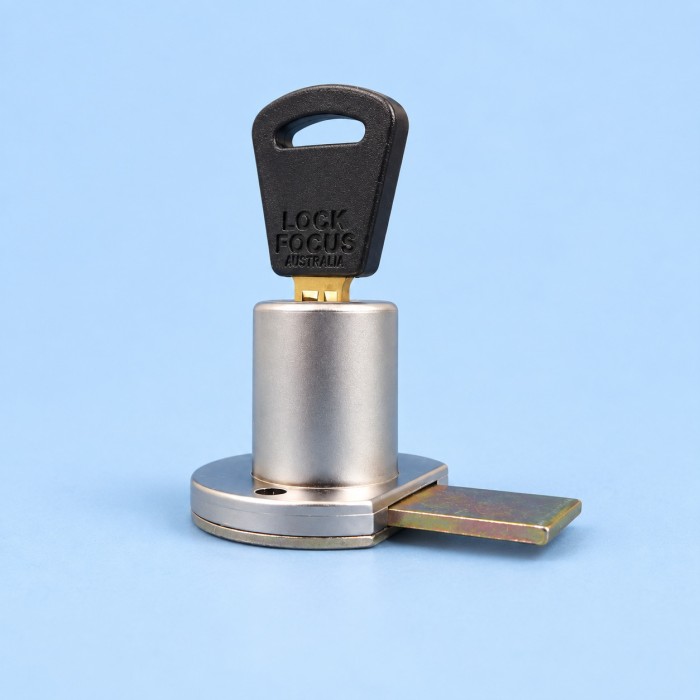

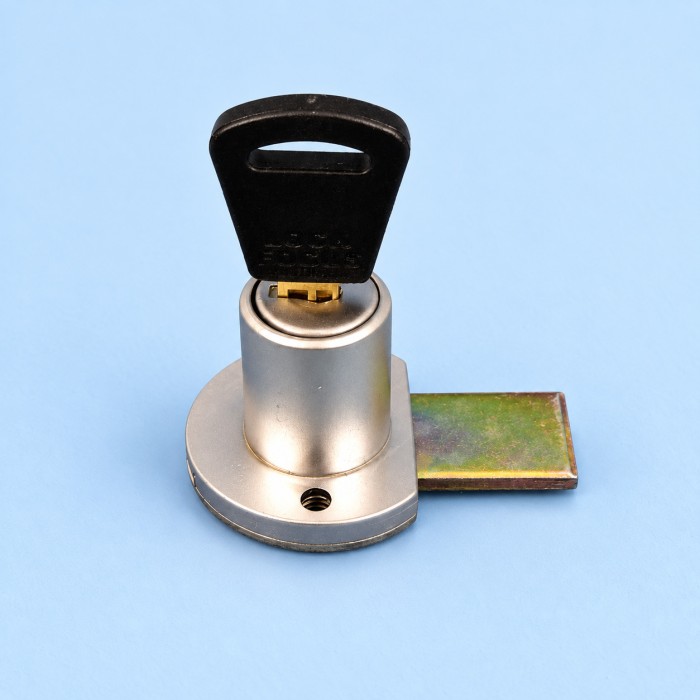

Complete keyed camlock with a straight-sliding long tongue for caravan access doors and some flyscreen doors. This style was used on some early Viscount and Jayco camper doors; match the existing cut-out, door thickness and tongue reach rather than relying on the caravan model alone.
Features
- Secures with 2 screws or pop rivets from the back of the door
- 1 year warranty.
Specifications
- Other Identifier: LOCK22MM
- Suits door thicknesses from 5 mm to 20 mm.
- Requires a 19 mm round cut-out.
- The straight-sliding tongue extends from 32 mm to 41 mm from the centre of the lock, giving 9 mm of travel.
- Supplied with 2 keys, key code 60009.
- This lock is not compatible with the One-Key solution.
- Shipping Weight: 60 grams.
- Shipping Dimensions: 5 cm x 6 cm x 4 cm.
