Two-Stage LPG Regulator with Cover & Metal Bracket 1/4 inch FNPT Inlet x 3/8 inch FNPSF Outlet

Description

The 6080 integral two-stage low-pressure LPG regulator combines a high-pressure first stage with a second-stage regulator. It is suitable for installation on a recreational vehicle with one gas cylinder, or two manually selected gas cylinders when used with a separate changeover valve.

Connecting to a single gas cylinder

a) The regulator inlet has a 1/4 inch female NPT (National Pipe Thread) connection.

b) You can connect any pigtail that has a 1/4 inch male NPT connection.

c) You can connect a pigtail with a 1/4 inch IF (inverted flare) connection using adaptor ID-7599.

Connecting to twin gas cylinders

a) The regulator inlet has a 1/4 inch female NPT (National Pipe Thread) connection.

b) The changeover valve has a 1/4 inch IF (inverted flare) inlet.

c) A copper pigtail, or any flexible pigtail with that thread, will connect.

Features

• Two-stage regulation provides a consistent inlet pressure to the second stage, minimising minor outlet pressure variations.
• Zinc die-cast construction
• Removable mounting bracket included
• High- and low-pressure test ports
• Drip-lip vent
• 1 year warranty.

Specifications

• Manufacturer Part Number: 6080
• Brand: Keefer
• Mounting hole spacing: 92 mm on the main bracket and approximately 87 mm on the body casting
• Inlet pressure: 10-250 psi
• Outlet pressure: 11 inch WC
• Inlet connection: 1/4 inch FNPT
• Regulator outlet connection: 3/8 inch FNPSF
• Capacity: 190,000 BTU/hr at 30 psi inlet pressure
• Body dimensions: 145 x 84 x 77 mm, excluding bracket
• Offset bracket adds 19 mm to the overall thickness
• Shipping Weight: 450 grams.
• Shipping Dimensions: 9 cm x 11 cm x 15 cm.

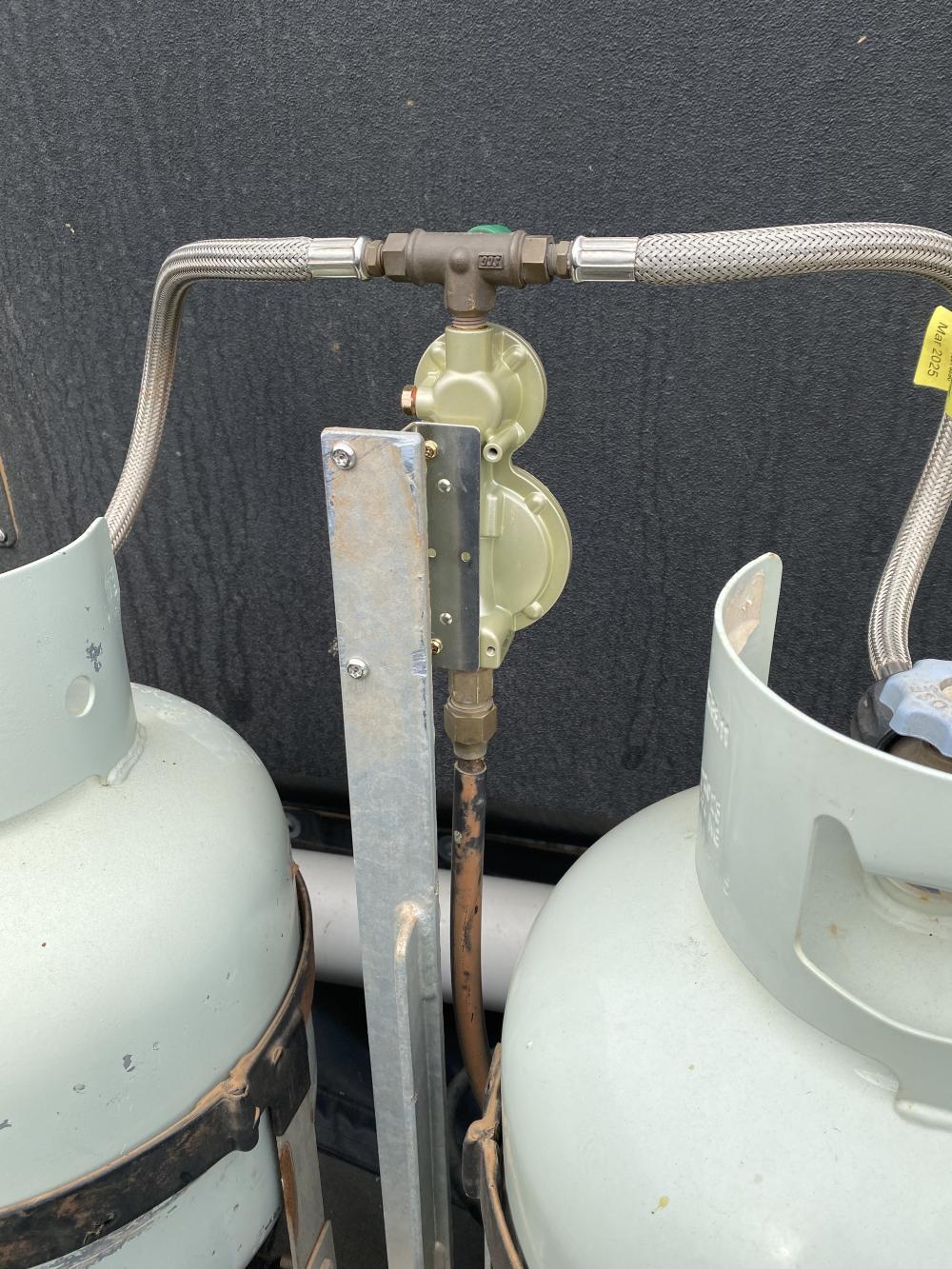

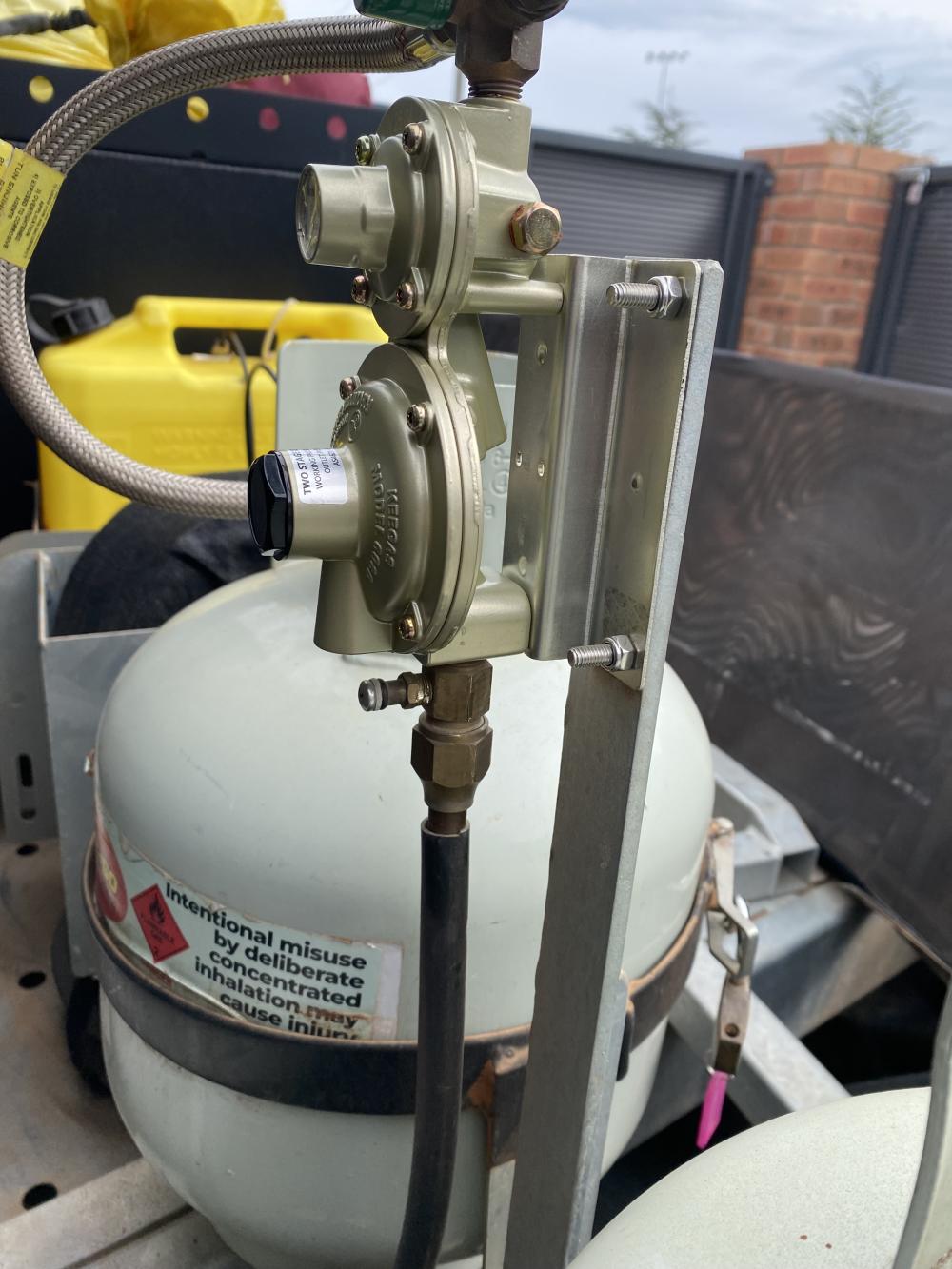

Community Photos

Connections

This product connects to other products that we sell. It has the following connections:

• FEMALE-BSP-3/8-GAS
• FEMALE-NPT-1/4
• FEMALE-NPT-3/8
