Description
This complete 12 V wired caravan reversing-camera kit provides a rear camera view on a 7-inch colour monitor mounted over the tow vehicle's rear-view mirror. It includes a black infrared eyeball camera and the principal cables and connectors needed to run the system between the tow vehicle and caravan.
Choose this version when a black camera housing is preferred; the matching kit with a white camera is the colour alternative. The monitor accepts two video inputs, but adding a second camera requires a compatible Sphere dual-camera add-on kit, which is sold separately.
Before you buy
- The monitor has a 5-pin connection and the supplied harness connects it to the system's 4-pin vehicle cabling.
- For a single-camera installation, the red power wire connects to the reversing lights so the image appears when reverse is selected.
- A dual-camera installation uses ignition power, with the green trigger wire connected to the reversing lights to switch to Camera 2.
- The second camera and dual-camera splitter are not included.

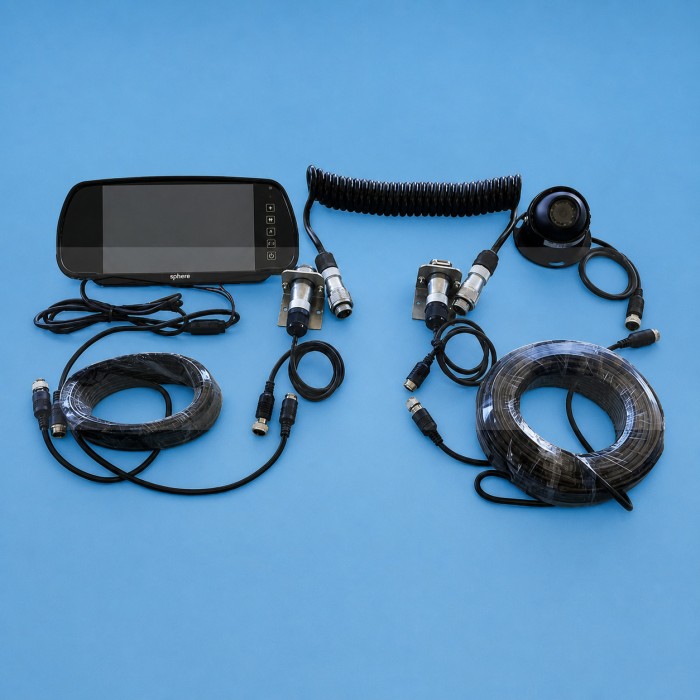

What's included
- 1 x black infrared eyeball camera
- 1 x 7-inch colour mirror-mount monitor
- 1 x monitor harness
- 1 x 6 m vehicle cable
- 1 x 20 m caravan cable
- 1 x 3 m spring cable
- Heavy-duty 4-pin connectors
- 2 x connector brackets
Features
- Complete wired cable route between the tow vehicle and caravan
- Mirror-mounted colour display keeps the dashboard clear
- Two video inputs with V1/V2 switching support a compatible second-camera installation
- Left/right image mode supports rear-view camera use
- Monitor operation by onboard buttons or remote control
- Infrared LEDs assist camera visibility in low light
- 1 year warranty.
Specifications
- Manufacturer Part Number: BTK-CVKB01
- Brand: Sphere
- System voltage: 12 V DC
- Monitor: 7-inch colour rear-view mirror-mount display
- Monitor format: 16:9
- Monitor resolution: 800 x RGB x 480
- Monitor dimensions: 385 x 148 x 23 mm
- Video inputs: 2, with V1/V2 switching
- Monitor connection: 5-pin with harness for 4-pin vehicle cabling
- Camera colour: Black
- Camera sensor: Sony CCD
- Camera effective pixels: 728 x 582 / 728 x 512
- Camera resolution: 520 TV lines
- Camera viewing angle: 120 degrees
- Camera protection rating: IP68
- Camera operating temperature: -20°C to +75°C
- Cable lengths: 6 m vehicle cable, 20 m caravan cable and 3 m spring cable
