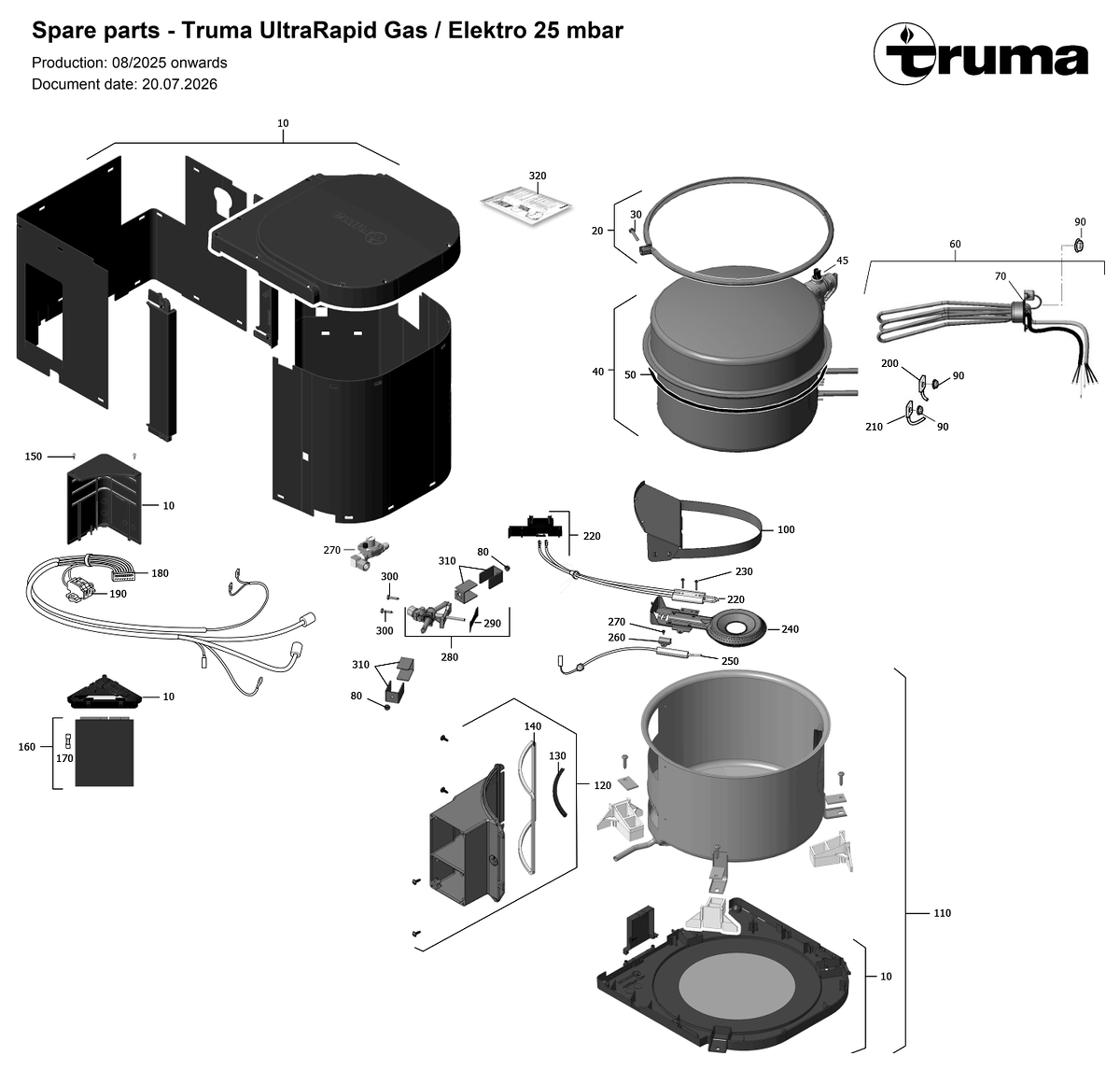

Spare Parts Diagram - Truma UltraRapid Hot Water System (>08/2025)

Spare Parts Diagram - Truma UltraRapid Hot Water System (>08/2025)
Spare Parts Diagram - Truma UltraRapid Hot Water System (>08/2025)
Key Link Model/Name
10 View 70020-00204
UltraRapid cover cpl.
20 View 70000-41200
Clamp ring with screw
40
70020-00206
UltraRapid stainless steel container
45 View 70020-00319
P+T relief valve
50
70020-00406
Boiler seal kit
60 View 70020-00272
UltraRapid heating rod
60
70020-00392
UltraRapid heating rod w/o plug
70 View 10030-16100
O-ring 38 x 3 mm EPDM
100
70000-36100
Wind quide plate cpl.
110
70020-00362
Outer pot cpl.
120
70000-36300
Oriel cpl.
130
70000-29100
Sealing profile 140 mm
140
70020-60800
Silicone square cord
160 View 70020-00065
Electronics
170
70000-07100
Fine wire fuse 1.6 AT
180 View 70020-00066
Cable harness cpl.
190
70000-26400
Connection clamp blue/orange
200 View 34000-34200
Temperature guard cpl.
210 View 34000-34300
Temperature sensor
220 View 70020-10200
Ignition electrode with base
240 View 70000-54200
Boiler burner
250 View 70000-56200
Rectification electrode
270
70020-00420
UltraRapid pre-pressure regulator
280
70020-00434
UltraRapid valve body 25 mbar
290
70000-35800
Gasket for valve
300
10010-65300
ST screw ISO 1479 ST42x19-A2K-C
310
70000-54600
U-sheet kit 2 pcs.
Show Water Heater Diagrams
Show All Water Heater Diagrams
13 Diagrams
