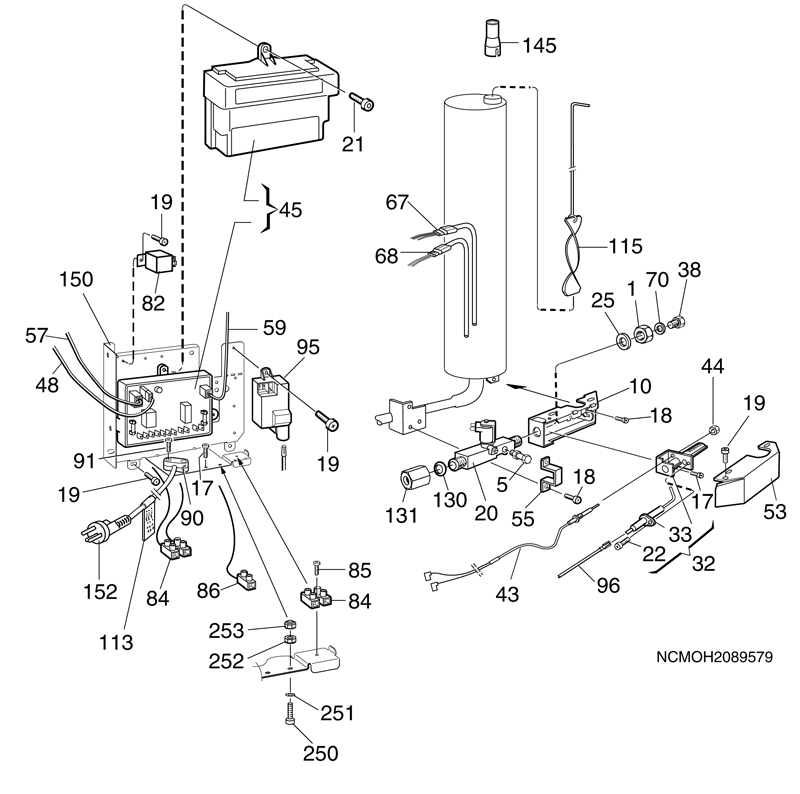

Spare Parts Diagram - RM2455 Fridge Controls

Spare Parts Diagram - RM2455 Fridge Controls

Specifications

    • Brand: Dometic
Key Link Model/Name
1 View 140207044
Nut
5 View 2932097013
Nipple
10 View 2932603018
Burner housing
17 Search 3858039039
Screw,zinc-plated,MRX M4X8
18 Search 3858039047
Screw,zinc-plated,MRX M4X10
19 Search 3858002144
Screw,zinc-plated,RXS B6X9,5
20 View 2932615038
Solenoid valve
21 Search 3858002151
Screw,zinc-plated,RXS B6X13
22 Search 3858005014
Screw,zinc-plated,RXK B6X9,5
25 Search 3858010071
Washer,12,5X18,5X1
32 View 2930697061
Burner
33 View 2930379009
Electrode
38 View 2007419167
Jet,43
43 View 2932052018
Thermocouple
44 Search 2801043015
Nut
45 Search 3850610019
Electronics module,assembly,AESIII
48 Search 3851059034
Conductor,thermistor
53 View 2932661016
Cover
55 Search 2932662014
Bracket
57 Search 2954542060
Conductor,PCB
59 Search 2954540031
Conductor,complete,solenoid valve
67 View 3850644125
Heater,195W, 240V
68 View 3850646054
Heater,175W, 12V - From serial no. 92600001
68 Search 3850646104
Heater,175W, 12V - Up to serial no. 85000107
70 Search 2007457001
Washer,0,5mm
82 Search 3851334007
Relay
84 Search 3858022019
Terminal block
85 Search 3858002185
Screw,zinc-plated,RXS B6X25
86 Search 3858062015
Terminal block
90 Search 2932342013
Cable clamp
91 Search 3858002177
Screw,zinc-plated,RXS B6X19
95 View 2932347012
Spark generator
96 View 2931360057
Ignition cable
113 Search 2932733005
Label
115 Search 2007590017
Flame spreader
130 Search 2930500000
Seal washer,copper
131 Search 3850743018
Connection,nipple
145 Search 2932195015
Adaptor
150 Search 3851474019
Bracket
152 Search 3850555040
Cord set
250 Search 3858004033
Screw,zinc-plated,MRX M4X16
251 Search 3858011012
Lock washer,zinc-plated,4,3X8
252 Search 3858009016
Hexagon nut,zinc-plated,M4X3,2
253 Search 3858028024
Lock nut,zinc-plated,M4
