RV Electronics FS1 Fridge Switch Automatic Driving Cut-Off

23 Reviews
$87$61.95
3 in stock

Estimated dispatch: Tue 13 Oct

Delivery to Your Door

Postage Australia Wide

Postage$11.40
Estimated Arrival

Check arrival using your postcode.

Not Sure This Is the Right Part?

Show us a photo or model number. We’ll help you check before you buy.

Our Recommendation Promise

Buy the part we recommend for your setup. If we get it wrong, we’ll cover return postage and delivery of the correct replacement.

Description

The easy to install Fridge Switch detects when you stop driving and automatically cuts the fridge's 12V supply after a delay to help avoid flattening your car battery.

Fridge Switch has an in-built electronic movement and vibration sensor which switches the 12V circuit of the caravan's 3-way fridge on when the vehicle is moving and turns it off after the vehicle stops. It responds to movement rather than ignition status, so it is intended for running the fridge while travelling, not for continued 12V cooling while parked.

The Fridge Switch also has a varying timing delay which may keep the fridge running for up to three minutes after you stop, to prevent it turning off during brief stops at traffic lights.

The standard switch is rated to 25A. Higher-current fridges need the additional relay arrangement shown in the attached 40A upgrade instructions. Fridges that also need 12V for gas ignition may require extra wiring so that this supply is not interrupted.

Features

  • Easy installation in under 15 minutes
  • Helps prevent fridge-related car battery drain by cutting the 12V supply after the vehicle stops moving
  • 1 year warranty.

Specifications

  • Manufacturer Part Number: FS1 FRIDGESWITCH
  • Brand: RV Electronics
  • Barcode: 9345757000158
  • Dimensions: (L)100 mm x (W)52 mm x (H)30 mm
  • Supply: 12V DC; maximum switched load: 25A
  • Application: 12V supply circuit of a caravan or motorhome 3-way fridge
  • Mounting: horizontally behind the fridge, with the label facing upwards; do not mount on a wall
  • Secure using screws or the supplied adhesive pads
  • Disconnect both 240V and 12V power to the fridge before wiring; follow the labelled vehicle and fridge connections
  • Any extension wiring must be at least the same size as the existing wiring
  • Dometic RM4211 and RM4401 gas-ignition supplies may require extra wiring beyond the standard installation diagram
  • Shipping Weight: 110 grams.
  • Shipping Dimensions: 4 cm x 11 cm x 17 cm.

Further Information

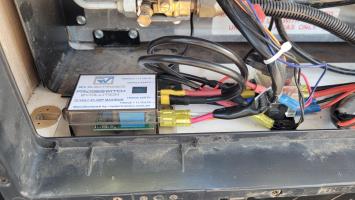

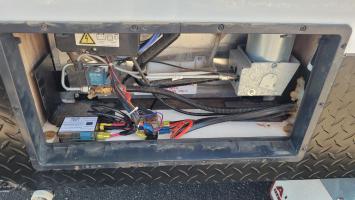

Community Photos
