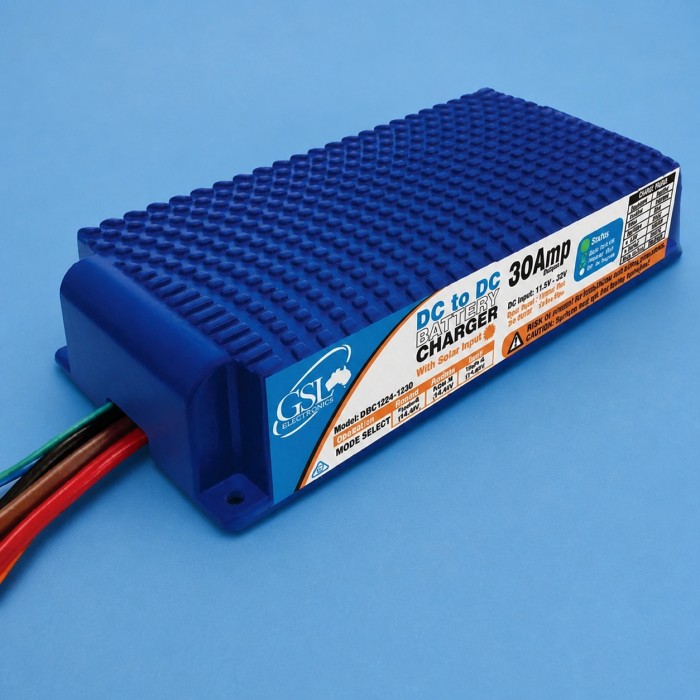

GSL Buck Booster DC-to-DC & Solar Charger 12V · 30A

Description

The GSL Buck Booster is a multi-volt DC-DC charger combined with a solar controller. This perfect combo enables highly efficient charging of your RV battery both while travelling and on location.

Features

• 30 A output capability
• Unique solar charging mode to suit long-term vehicle storage
• Full polymer encapsulation to protect against vibration, water and dust
• Solar input reverse polarity protection
• Smallest footprint in its class
• Compatible with smart alternators
• Dual-mode solar controller optimises the PWM function for dusk and dawn.
• It then automatically changes to MPPT mode for peak solar periods
• 1 year warranty.

Specifications

• Brand: GSL
• Lowest Operating Voltage: 11.5 V
• Maximum Operating Voltage: 32 V
• Maximum Current at Bulk Charge: 30 A
• Charge Voltage for Type A: 14.4 V
• Charge Voltage for Type B: 14.6 V
• Charge Voltage for Type C: 14.8 V
• Solar Panel Power: 30 W - 300 W
• Stand By Current: 30 mA
• Maximum Operating Temperature: 70 °C
• Dimensions (HxWxL) mm: 32.3 mm x 71.5 mm x 162 mm
• Weight: 560 g
• Shipping Weight: 640 grams.
• Shipping Dimensions: 9 cm x 24 cm x 4 cm.

Further Information

• View the related PDF: GSL Buck Booster DC-to-DC & Solar Charger Manual
