Fixed-Side Repair Kit Suits Lippert In-Wall Slide-Outs

Description

Repair kit for the fixed-side mechanism of a Lippert In-Wall slide-out. For this kit, the fixed side is the left-hand side when standing outside the RV and facing the slide-out room; it does not refer to the vehicle's normal left side.

The fixed assembly can be identified by its bearing block being retained against movement with an aluminium rivet. MPN 330485 is the corresponding float-side kit.

Features

• 1 year warranty.

Specifications

• Manufacturer Part Number: 330484
• Brand: Lippert
• Application: Lippert In-Wall slide-out system
• Side configuration: Fixed side
• Viewing reference: Left-hand side when standing outside the RV and facing the slide-out room

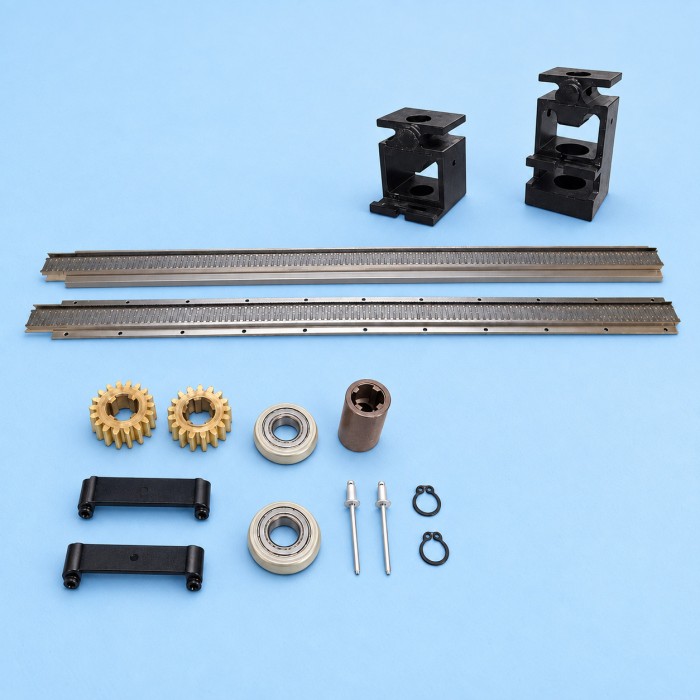

• Kit contents: Upper gear rack, lower gear rack, V-roller, snap ring, shoe, foam wear plug and flat-back rack plug
• Not included: Coupler, upper or lower bearing blocks, metal or plastic rivets, or spur gear
• Gear racks are supplied overlength and are cut to match the original rack length
