Duoetto MK2 Hot Water System Electric · 10L · 12V / 240V

Description

A favourite among van builders, 4WD tourers, and traditional caravanners alike, the Duoetto MK2 delivers hot water without gas plumbing. This 10L electric storage water heater runs on 12V DC or 240V AC, making it suitable for both off-grid installations and powered sites without gas bottles or regulators.

Its compact design suits campervan conversions, canopy builds, caravans and remote cabins. The Duoetto MK2 automatically gives 240V mains power priority over 12V heating; the two heating modes do not operate together. If 12V heating does not resume when returning to battery operation, unplug the 240V lead from the power point.

The front thermostat knob sets the 240V temperature, while the digital controls set the 12V temperature. A separately available remote panel provides convenient 12V temperature adjustment when the heater is installed in a hard-to-reach position; it does not replace the 240V thermostat or switch the heater on and off.

Built with a robust SPCC steel tank, enamel lining, and polyurethane insulation, it's engineered for thermal efficiency and long-term performance. Safety features include over-temperature and run-dry protection. Fill the tank and establish water flow from the hot outlet before applying power: heating an empty tank can cause permanent damage.

Features

• 10 L SPCC steel and enamel-lined tank with single weld line
• No gas bottles or regulators required
• Dual voltage operation: 240 V (30-75 °C) and 12 V (30-70 °C)
• Digital control interface for 12 V operation
• Automatic voltage detection with 240 V priority over 12 V heating
• Over-temperature and run-dry protection
• Polyurethane insulation for heat retention
• Durable outer casing with service access points
• Includes combination pressure relief and non-return valve
• Incoloy 840 heating element for reliability
• 1 year warranty.

Specifications

• Brand: Mercury RV / Aus J Water Heaters
• Dimensions: 409 mm x 262 mm x 267 mm
• Draw / Power consumption: 12 V DC (25 A, 300 W) | 240 V AC (4.2 A, 1,000 W)
• Capacity: 10 L
• Rated tank pressure: 117 psi
• Mounting: Horizontal only, using floor or wall brackets
• Weight: 7.4 kg
• Water inlet and outlet: 1/2 inch male BSP
• 240 V connection: Supplied cord with standard 10 A plug
• 12 V wiring: Both the heavy power wires and small control wires must be connected; the small positive control wire requires a switch or ignition-controlled supply
• Manufacturer-specified 12 V protection: 50 A fuse on the heavy positive wire and 5 A fuse on the small positive control wire; fuses and control switch are not supplied. Do not use an in-line blade fuse for the heavy circuit
• Supplied accessories: Mounting brackets and fasteners, combination pressure relief/non-return valve, clear relief-drain hose and electrical connector components; remote panel sold separately
• Relief valve installation: Fit to the cold-water inlet and route its drain hose continuously downwards to drainage; hose clamp or cable tie is not supplied
• Related John Guest straight and bent tap connectors have a maximum operating temperature of 70 °C; do not expose them to the heater's 75 °C setting
• Shipping Weight: 9.40 Kgs.
• Shipping Dimensions: 35 cm x 30 cm x 47 cm.

Further Information

• View the related PDF: Duoetto MK2 Hot Water System Manual

Video Guide

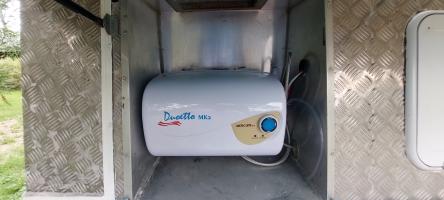

Community Photos

Connections

This product connects to other products that we sell. It has the following connections:

• MALE-BSP-1/2-WATER

Click to Show Connecting Products
