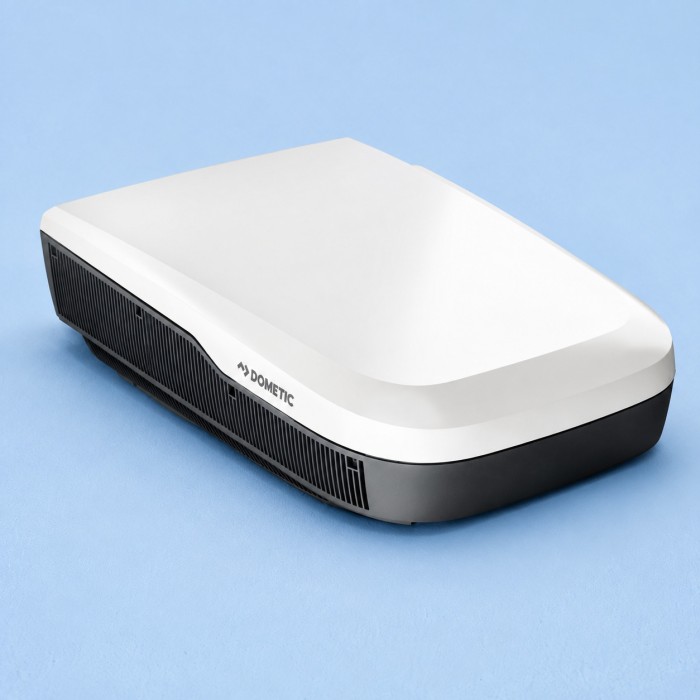

Dometic FreshJet FJZ7 Pro Rooftop Air Conditioner Kit with Electronic ADB 3.4kW Cooling / 3kW Heating

Description

The Dometic FreshJet FJZ7 Pro is a 3.4 kW inverter rooftop air conditioner kit for larger caravans and motorhomes. This bundle includes the rooftop unit and the compatible Dometic FreshJet FJZ electronic air distribution box (ADB), providing the internal air outlets, touch controls, dimmable LED lighting, CleanAir purification and reusable filter.

Its variable-speed compressor, brushless fan motors and vibration-isolating compressor mounts provide strong cooling with smoother, quieter operation. Reverse-cycle heating delivers 3.0 kW for cooler conditions, while sleep mode limits fan and compressor speed overnight.

Adaptive Power Mode lets you set a maximum current draw through the Dometic Power App. This helps match operation to a limited mains supply or manage energy use when the air conditioner is supported by a suitable battery and inverter system.

Features

• 3.4 kW cooling and 3.0 kW reverse-cycle heating
• Variable-speed inverter compressor for efficient operation
• Adaptive Power Mode sets maximum current draw through the Dometic Power App
• Reduced cooling current consumption - up to 15% lower than previous models
• Brushless fan motors and vibration-isolating compressor mounts reduce operating noise
• Dedicated sleep mode for quieter overnight operation
• Electronic FreshJet FJZ ADB included with touch controls and dimmable LED lighting
• Wi-Fi and Bluetooth connectivity for app control
• CleanAir air purifier and reusable dust filter integrated into the ADB
• IPX5 rooftop-unit ingress protection
• Uses R32 refrigerant and increased recycled material content
• 3 year warranty.

Specifications

• Manufacturer Part Number: 9630000083
• Other Identifier: 9630000073
• Brand: Dometic
• Supplied: FreshJet FJZ7 Pro rooftop unit and FreshJet FJZ electronic air distribution box
• Electrical rating: 220-240 V, 50-60 Hz
• Required fuse: 10 A
• Best for vehicle length: 7 m
• Cooling capacity: 3.4 kW, 6.2 A
• Heating capacity: 3 kW, 5.8 A
• Start-up current: < 7.3 A
• Max airflow: 490 m³/h
• Fan speeds: 5
• Operating ambient range: -2 to 52 °C; cooling is available above 16 °C
• Temperature setting range: 16 to 31 °C
• Max noise: < 70 dB(A)
• Connectivity: Wi-Fi and Bluetooth
• Rooftop dimensions: 700 x 242 x 1090 mm (W x H x L)
• ADB dimensions: 518 x 48 x 579 mm (W x H x L)
• Roof opening: 360 x 360 mm or 400 x 400 mm
• Roof thickness: 25-60 mm (optional adaptors for up to 100 mm)
• Installed weight with ADB: 41 kg
• Shipping Weight: 54.00 Kgs.
• Shipping Dimensions: 40 cm x 80 cm x 116 cm.

Further Information

• View the related PDF: Dometic FreshJet FJZ7 Pro Rooftop Air Conditioner Manual
• View the related PDF: Dometic FreshJet FJZ7 Plus Rooftop Air Conditioner Installation Manual
