Bromic Two-Stage RV Gas Regulator Kit LCC27 · Twin Cylinders · 450mm Pigtails · 5/16 inch SAE Test Point

Description

Bromic's two-stage RV gas regulator kit suits a dual-cylinder setup with LCC27 cylinder valves. It includes the two-stage regulator required for new installations.

Changeover is manual, not automatic: the valve selects the cylinder supplying gas. When that cylinder empties, gas supply stops until you turn the changeover valve to the full cylinder.

Features

• Compact regulator designed for caravan & RV installations.
• Stainless steel braided LCC27 pigtails with hand wheel for easy installation
• Manual changeover valve
• Metal mounting bracket
• Test point
• Fully assembled & leak tested
• 1 year warranty.

Specifications

• Manufacturer Part Number: 6060587-27
• Brand: Bromic Lido
• Barcode: 9320688421654
• The outlet supplied is a 5/16 inch SAE fitting that will suit 5/16 inch copper pipe (needs to be flared).
• Gas type - Propane.
• Regulator capacity: 3.2 kg/h.
• Outlet pressure 2.8 kPa (28 mbar).
• Inlet pressure (Max.) 1750 kPa (17.5 bar).
• Operating temperature -20 °C to 50 °C.
• Die-cast body construction.
• Diaphragm - approved NBR (fabric reinforced).
• Includes test point, which is required in some states
• Includes 2 x 450 mm LCC27 stainless steel braided pigtails.
• Shipping Weight: 1.16 Kgs.
• Shipping Dimensions: 7 cm x 24 cm x 24 cm.

Our Comments

After any gas fittings are replaced, the gas system must be tested for leaks.

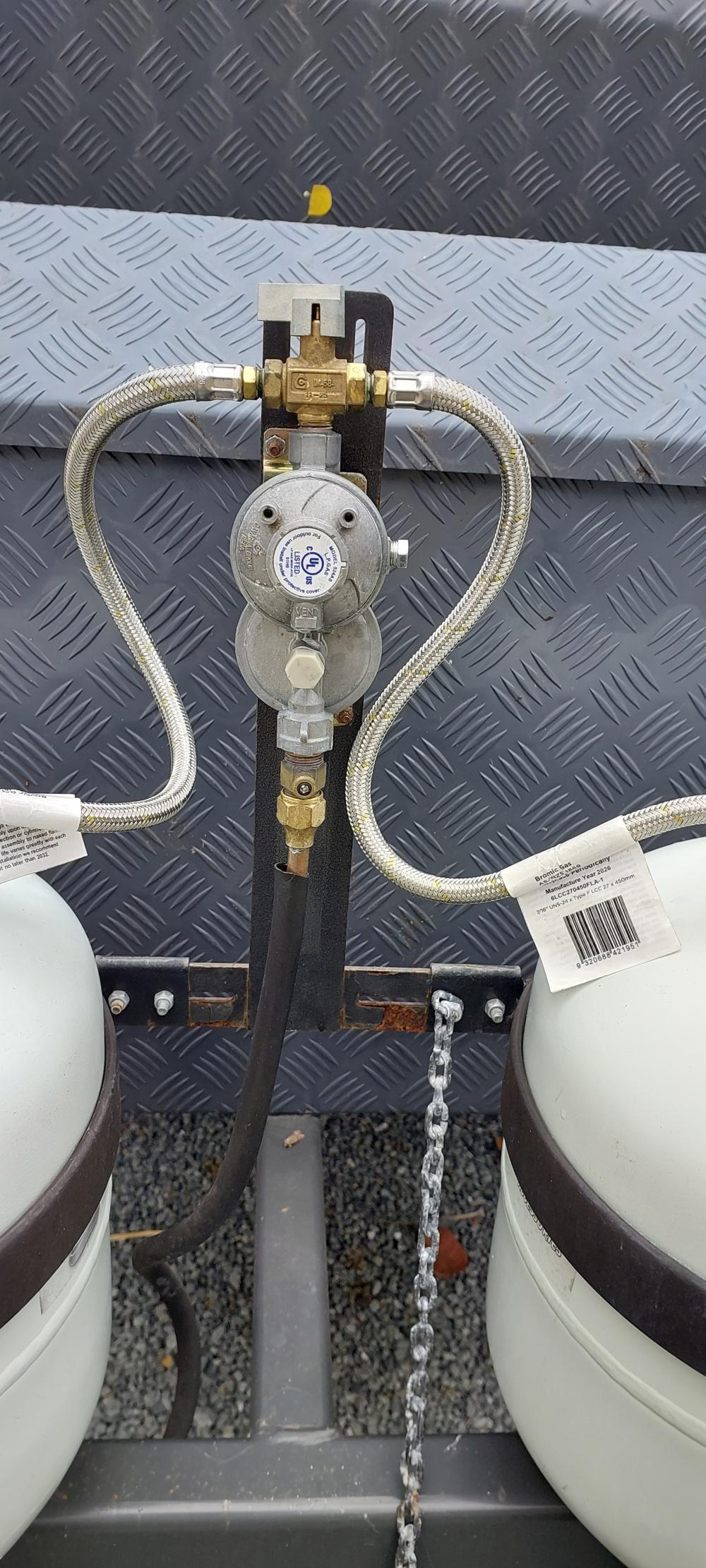

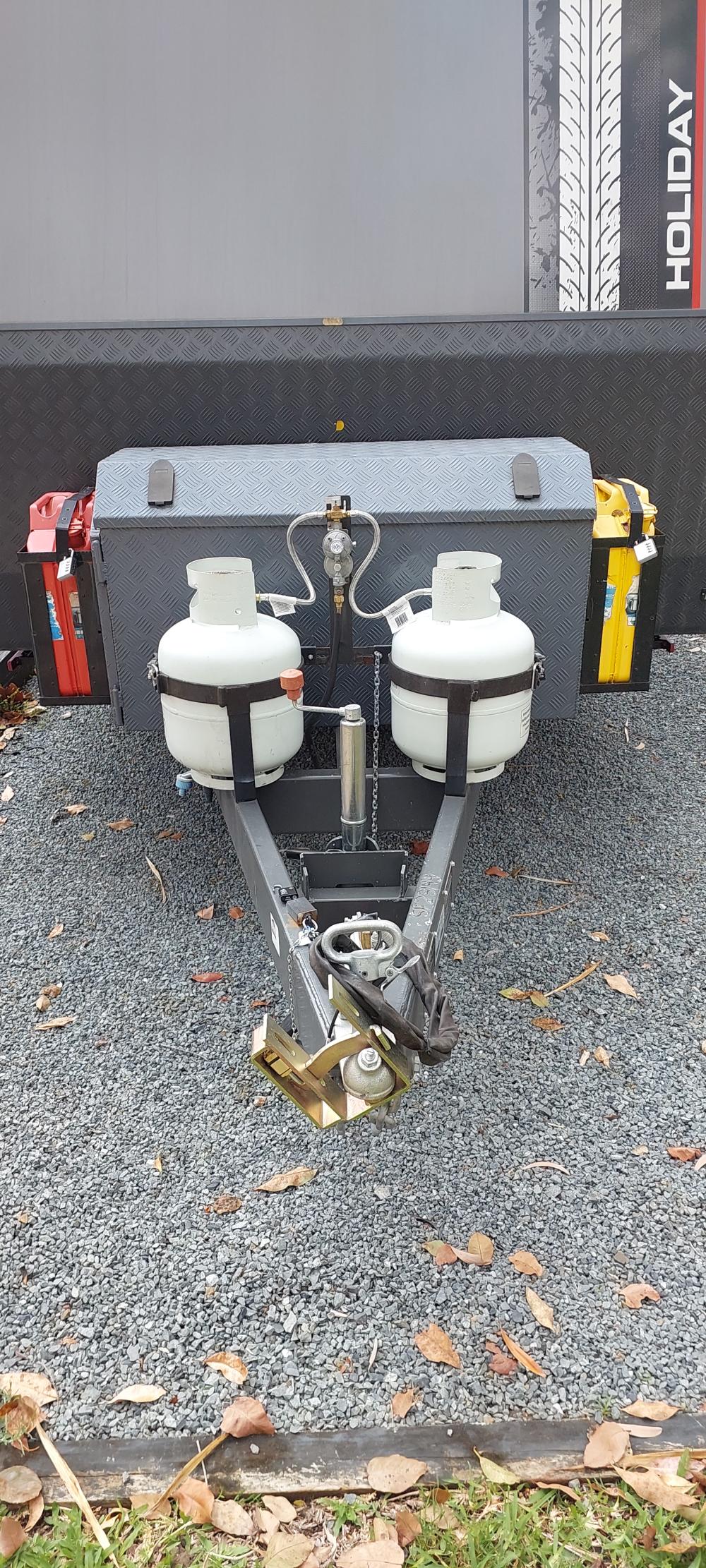

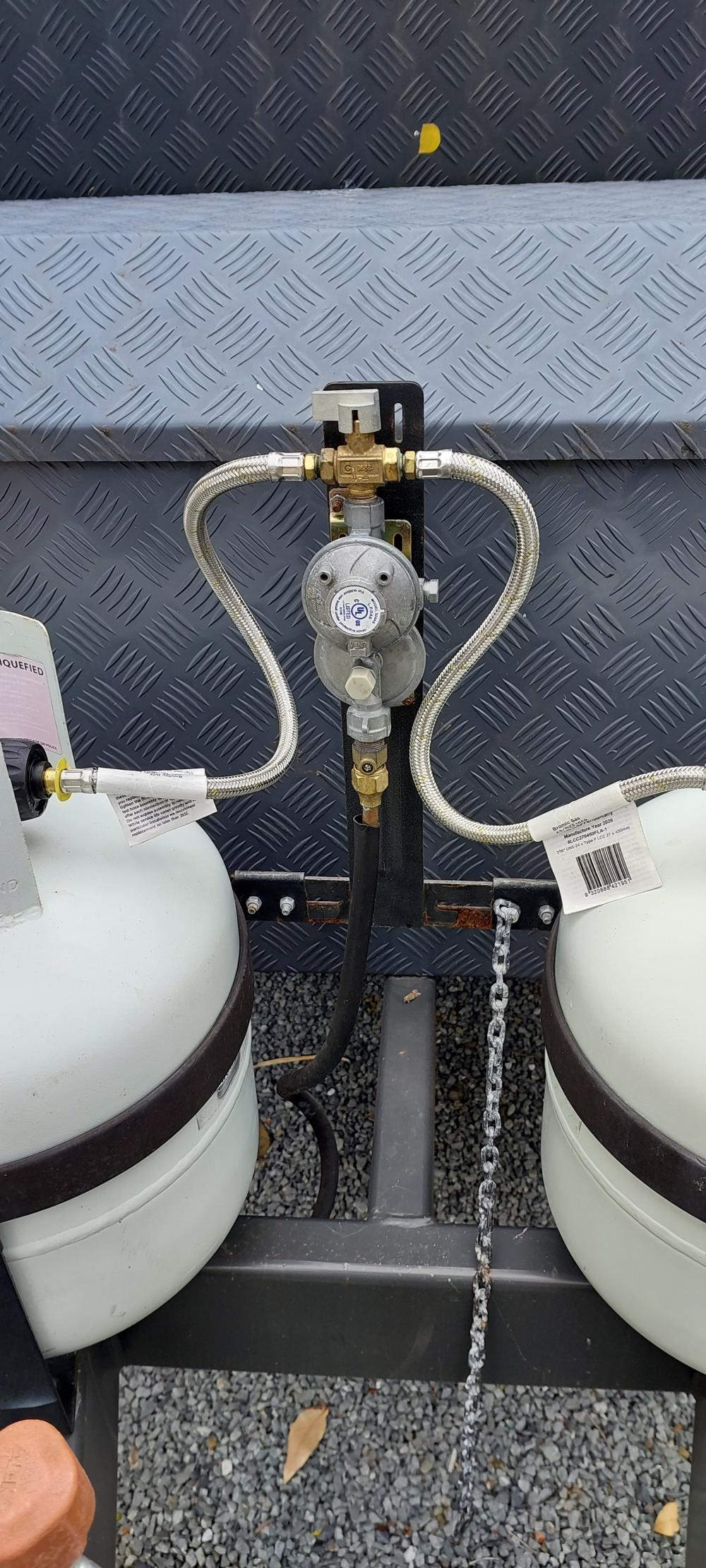

Community Photos
