Aussie Traveller Skylight with Blind & LED 400 x 400mm Cut-Out

Description

The Aussie Traveller Roof Hatch is a stylish RV skylight with integrated block-out blind and insert screen. For added appeal this hatch also features 12V LED shadow lighting for complete comfort day and night. Designed with a European feel it utilises a manual push-bar lift system with a ventilation position for controlled airflow.

Designed to fit into a 400mm x 400mm opening the Aussie Traveller Roof Hatch is a suitable replacement for the Dometic / Seitz Mini Heki.

Keep the lid closed in strong wind, rain or snow. Before driving, fully close the lid and make sure both ends of the push-bar are locked into place.

Features

• Double glazed smoke tint acrylic roof lid
• Manual 4-position lid - Open, ventilation, close and locked
• Roof locking design for added security
• Roof lid handles with push button locking
• Standard pleated blind and flyscreen
• Touch-sensor 12V LED halo light with low, medium and high brightness settings
• 1 year warranty.

Specifications

• Manufacturer Part Number: 41304000400080
• Brand: Aussie Traveller
• Suits 400 mm x 400 mm opening in ceiling
• Installation hole shown in manual: 402 x 402 mm with 13 mm corner radii
• Suits Roof Thickness: 28-50 mm
• Internal Frame Dimensions: 512 x 535 mm
• External Frame Dimensions: 503 x 485 mm
• Height Above Roof: 119 mm
• Requires solid fixing support at least 30 mm wide around the opening
• LED power supply required: 12V DC
• Mounting screws, clips and screw-hole plugs included
• Shipping Weight: 5.80 Kgs.
• Shipping Dimensions: 59 cm x 21 cm x 57 cm.

Further Information

• View the related PDF: Aussie Traveller 400 X 400 Skylight Hatch Manual

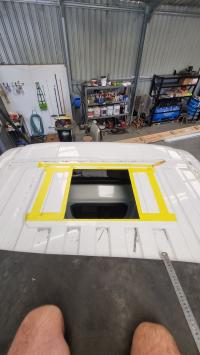

Community Photos
