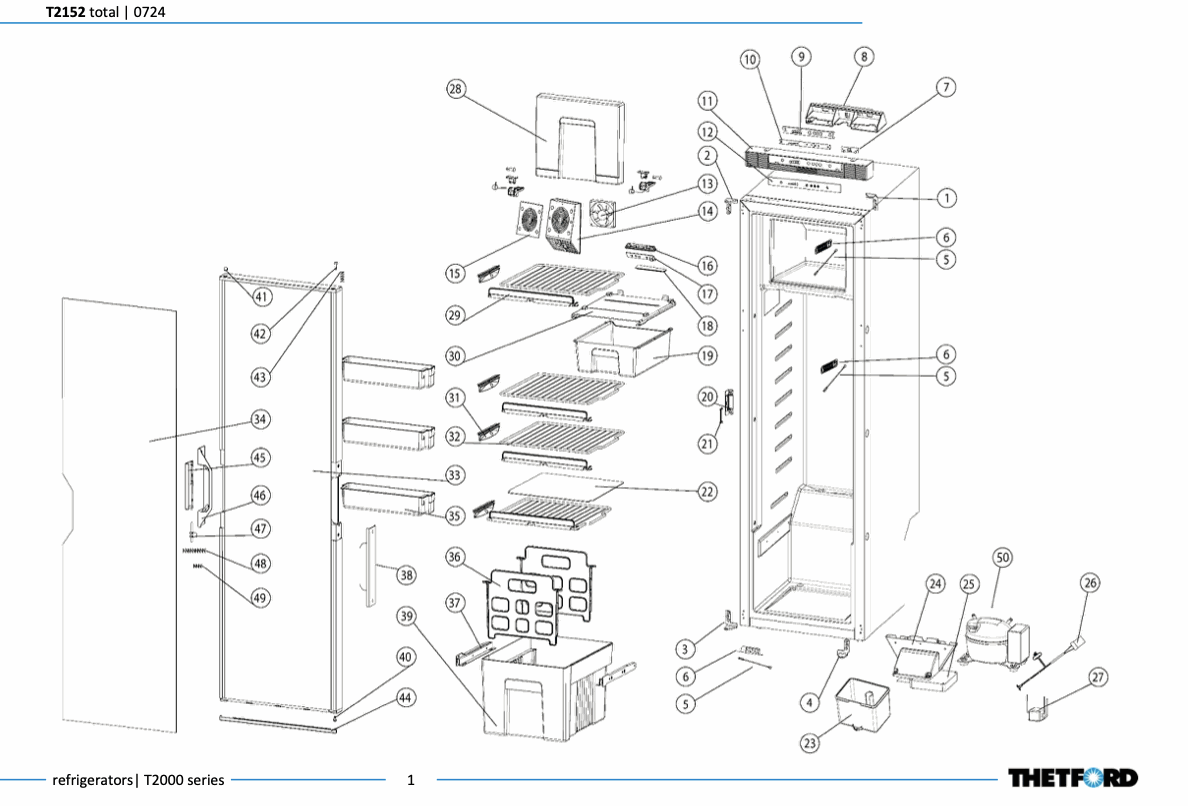

| Key | Link | Model/Name |
|---|---|---|
| 1 |  |
692751 Right upper hinge (#1-4) |
| 2 | |
692751 Left upper hinge |
| 3 | |
692751 Left bottom hinge |
| 4 | |
692751 Right bottom hinge |
| 5 |  |
692776 Thermistor (#5-6) |
| 6 | |
692776 Thermistor cover |
| 7 | 692801 Door switch LED PCB |
|
| 8 | 692754 Technical panel |
|
| 9 | 692803 Circuit board light panel (#9-10) |
|
| 10 | 692803 Control panel |
|
| 11 | 692065 Control housing (#11-12) |
|
| 12 | 692065 Sticker |
|
| 13 |  |
692777 Fan |
| 14 | 692806 Fan cover (#14-15) |
|
| 15 | 692806 Fan net |
|
| 16 |  |
692779 Light housing (#16-18) |
| 17 | |
692779 LED light |
| 18 | |
692779 Light cover |
| 19 | 692808 Breakfast tray |
|
| 20 |  |
692758 Door latch plate (#20-21) |
| 21 | |
692758 Winter lock support |
| 22 | 692362 Plate |
|
| 23 | 692810 Drip cup |
|
| 24 | 691887 Condenser fan cover |
|
| 25 |  |
692785 Condenser fan |
| 26 | 691873 Power cord |
|
| 27 | 2-way valve |
|
| 28 |  |
691877 Freezer door |
| 29 |  |
692789 Food retainer |
| 30 |  |
691865 Cover slide out box |
| 31 |  |
692761 Clip shelf large |
| 32 |  |
692816 Shelf |
| 33 | 692817 Cabinet door (#33-34) |
|
| 34 | 69233227SP Door panel |
|
| 35 |  |
692794 Door Bin |
| 36 | 691878 Drawer divider |
|
| 37 | 691874 Vegetable bin slide guide |
|
| 38 | 692764 Door cover < E006#ZDW00530001 |
|
| 38 | 692875 Door cover > E006#ZDW00530001 |
|
| 39 | 691860 Drawer bin |
|
| 40 | |
692883 Lower hinge shaft (#40-43) |
| 41 | |
692883 Screw cap |
| 42 | |
692883 Upper hinge shaft |
| 43 | |
692883 Upper hinge shaft spring |
| 44 | Panel retainer |
|
| 45 | Handle groove |
|
| 46 | Handle |
|
| 47 | Handle connection shaft |
|
| 48 | Big handle spring |
|
| 49 | Small handle spring |
|
| 50 |  |
691391 Control module: Serial Exxx#xDW0026xxxx - Exxx#xDW0042xxxx |
| 50 |  |
692821 Control module: Serial Exxx#xDW0043xxxx - Exxx#xDW0065xxxx |
