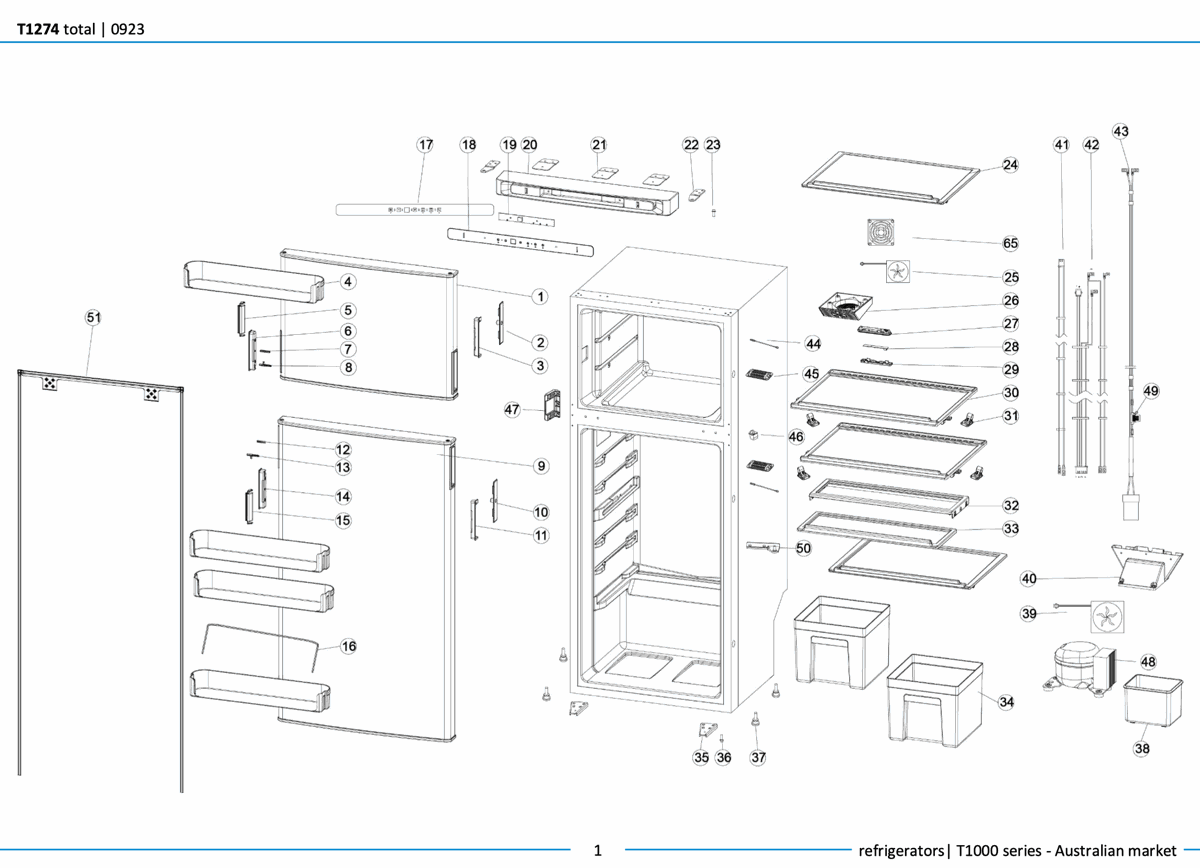

| Key | Link | Model/Name |
|---|---|---|
| 1 |  |
692579 Freezer door (new black stainless) |
| 2 | 692584 Handle cover (#2-3) |
|
| 3 | Left handle bracket |
|
| 4 |  |
692585 Door bin |
| 5 |  |
692590 Handle (#5-8) |
| 6 | Right handle bracket |
|
| 7 | Lock shaft spring |
|
| 8 | Lock shaft |
|
| 9 |  |
692578 Cabinet door (new black stainless) |
| 10 | 692589 Handle cover (#10-11) |
|
| 11 | Right handle bracket |
|
| 12 |  |
692586 Lock shaft spring (#12-15) |
| 13 | Lock shaft |
|
| 14 | Left handle bracket |
|
| 15 | Handle |
|
| 16 |  |
692591 Bottle retainer |
| 17 |  |
692592 Control panel label |
| 18 | |
692593 Control panel |
| 19 | 692594 Control PCB (Exxx#xDW0012xxxx - Exxx#xDW0015xxxx) |
|
| 19 |  |
692844 Control PCB (Exxx#xDW0072xxxx - Exxx#xDW0073xxxx) |
| 20 | 692595 Control housing |
|
| 21 | 692596 Control housing bracket |
|
| 22 |  |
692597 Upper hinge (#22-23) |
| 23 | Hinge pin |
|
| 24 | 692598 Freezer shelf |
|
| 25 | 692599 Fresh food fan (#25-26) |
|
| 26 | Inner fan cover |
|
| 27 |  |
692779 Light box (#27-29) |
| 28 | Light panel |
|
| 29 | Light cover |
|
| 30 |  |
692606 Fresh food shelf |
| 31 | 692607 Shelf stopper |
|
| 32 |  |
692608 Double-layer shelf rear (#32-33) |
| 33 | Double-layer shelf front |
|
| 34 |  |
692609 Vegetable bin |
| 35 |  |
692631 Lower hinge (#35-36) |
| 36 | Hinge pin |
|
| 37 | Front feet / spacer |
|
| 38 | 692810 Water pan |
|
| 39 | 692633 Condenser fan |
|
| 40 | 691887 Condenser fan cover |
|
| 41 | 692635 Solenoid valve connection wire |
|
| 42 | 692637 External connection wire |
|
| 43 | 692638 Power cord (Exxx#xDW0012xxxx - Exxx#xDW0015xxxx) |
|
| 43 | 692845 Power cord (Exxx#xDW0072xxxx - Exxx#xDW0073xxxx) |
|
| 44 |  |
692776 Thermistor (#44-45) |
| 45 | Thermistor Cover |
|
| 46 |  |
692641 Door switch |
| 47 |  |
692642 Door latch |
| 48 | 692643 Control module (Exxx#xDW0012xxxx - Exxx#xDW0015xxxx) |
|
| 48 |  |
692821 Control module (Exxx#xDW0072xxxx - Exxx#xDW0073xxxx) |
| 49 | 692644 Fuse (Exxx#xDW0012xxxx - Exxx#xDW0015xxxx) |
|
| 49 | 692849 Fuse (Exxx#xDW0072xxxx - Exxx#xDW0073xxxx) |
|
| 50 |  |
692645 Center hinge |
| 51 | 692850 Installation frame |
