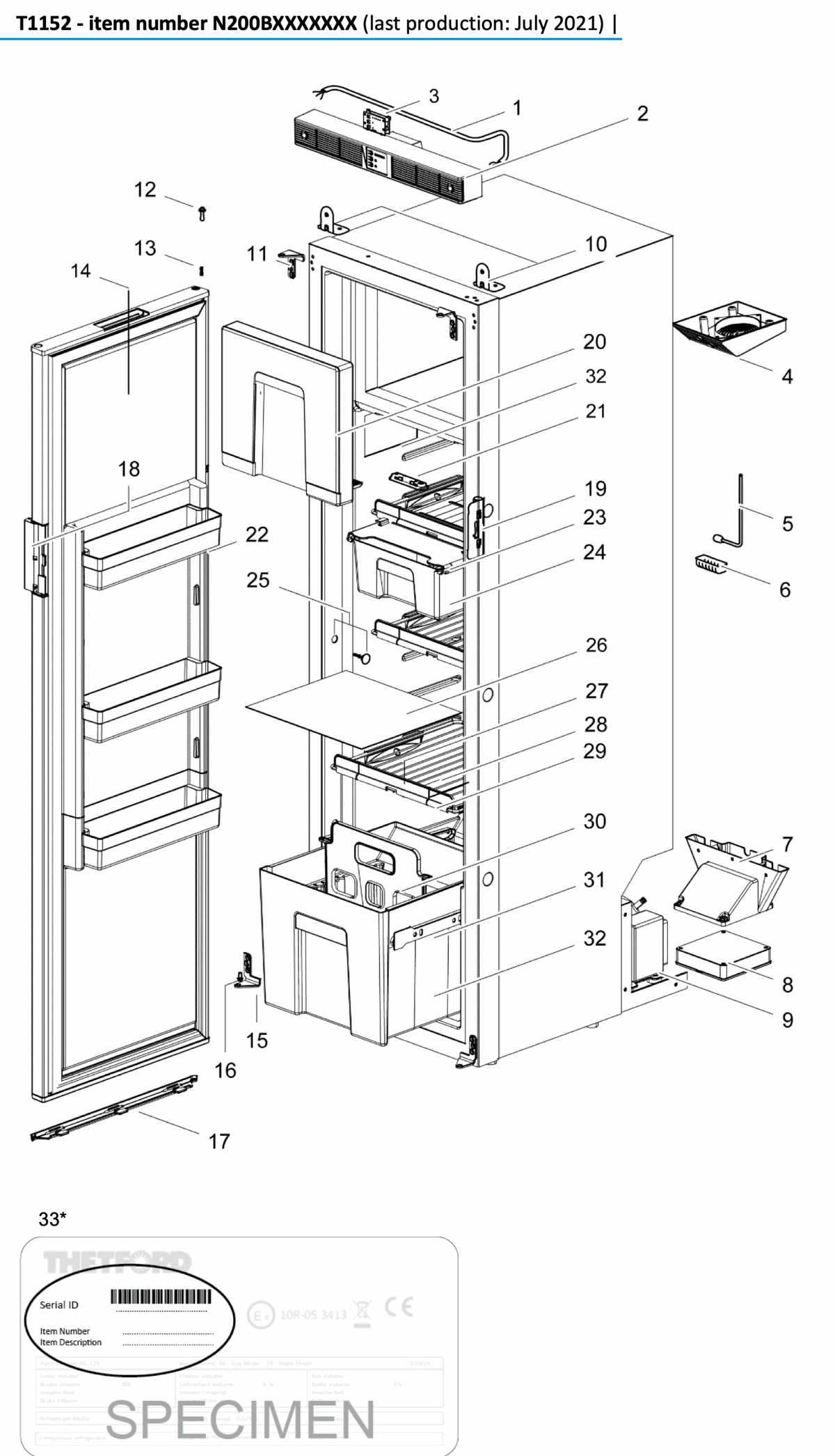

| Key | Link | Model/Name |
|---|---|---|
| 1 | 691873 Power cord |
|
| 2 |  |
691861 Control housing (#2-3) |
| 3 | |
691861 Control PCB (#2-3) |
| 4 | 692806 Internal fan |
|
| 5 | |
691390 Thermistor (#5-6) |
| 6 | |
691390 Thermistor cover (#5-6) |
| 7 | 691887 Condenser fan cover |
|
| 8 | 691870 Condenser fan |
|
| 9 | |
691871 Control module |
| 10 | 691875 Control housing bracket (set of 2) |
|
| 11 | 691876 Hinge plate upper (#11-7) |
|
| 12 | 691876 Hinge pin upper |
|
| 13 | 691876 Hinge spring |
|
| 14 | 691876 Cabinet door |
|
| 15 | 691876 Hinge plate bottom |
|
| 16 | 691876 Hinge pin bottom |
|
| 17 | 692361 Panel retainer lower |
|
| 18 | |
691866 Door handle (#18-19) |
| 19 | |
691866 Door lock plate |
| 20 |  |
691877 Freezer door |
| 21 |  |
692779 Light assembly |
| 22 |  |
692794 Door bin |
| 23 | |
691865 Cover slide out box |
| 24 | 691864 Slide out box |
|
| 25 | 691869 Screw &Cap (set of 6 each) |
|
| 26 | 692362 Plate |
|
| 27 | |
691862 Clip shelf (#27-29) |
| 28 | |
691862 Shelf |
| 29 | |
691862 Shelf food retainer |
| 30 | 691878 Drawer divider |
|
| 31 | 691874 Drawer guide L + R |
|
| 32 | 691860 Drawer |
|
| 33 | Identification label |
