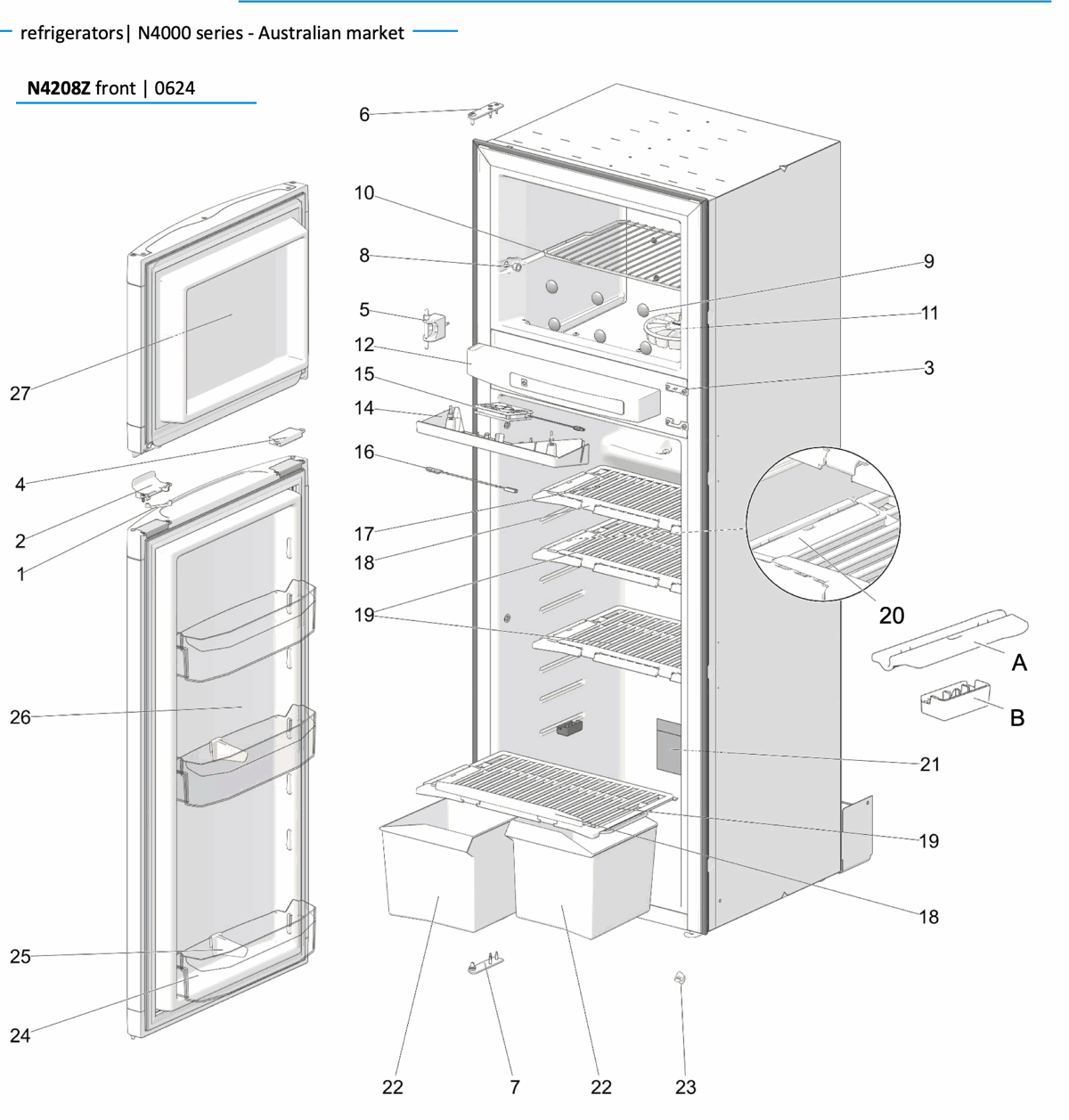

Spare Parts Diagram - Thetford N4208 Fridge - Front

Spare Parts Diagram - Thetford N4208 Fridge - Front
Spare Parts Diagram - Thetford N4208 Fridge - Front
Key Link Model/Name

1

Storage strap (#1-4)
2 View 62698527
Latch (#1-4)
3

Strike plate
4

Pocket cover
5 View 635010
Center hinge (left handed) #5-7
5 View 635011
Center hinge (right handed) #5-7
6

Hinge plate
7

Hinge plate
8 View 62362208
Cap (2x)
9 View 62447908
Cap freezer bolt (6x)
10 View 69084308
Shelf 404 x 238.5
11

Ice cube tray
12
refer to additional diagram
Control panel
13

Fin (not visible on drawing)
14
691729
Internal fan housing (#14-15)
15

Internal fan
16 View 623077
Thermistor
17 View 692511144
Shelf rack 415 x 200
18 View 69251608
Food retainer
19 View 692512144
Shelf rack 415 x 250
20A View 69251408
Clip shelf rack large
20B View 69251508
Safety lock
22 View 692524144
Vegetable bin reversible
23 View 62400127
Latch bottom
24 View 692520144
Door bin
25 View 69252108
Bottle retainer
26 View 69267127R
Cabinet door
26-B View 69272427SP
Door panel Cabinet (matt black)
27
69267827R
Freezer door
27-B View 69272527SP
Door panel Freezer (matt black)
Show Thetford Absorption Fridges Diagrams
Show All Thetford Absorption Fridges Diagrams
34 Diagrams
