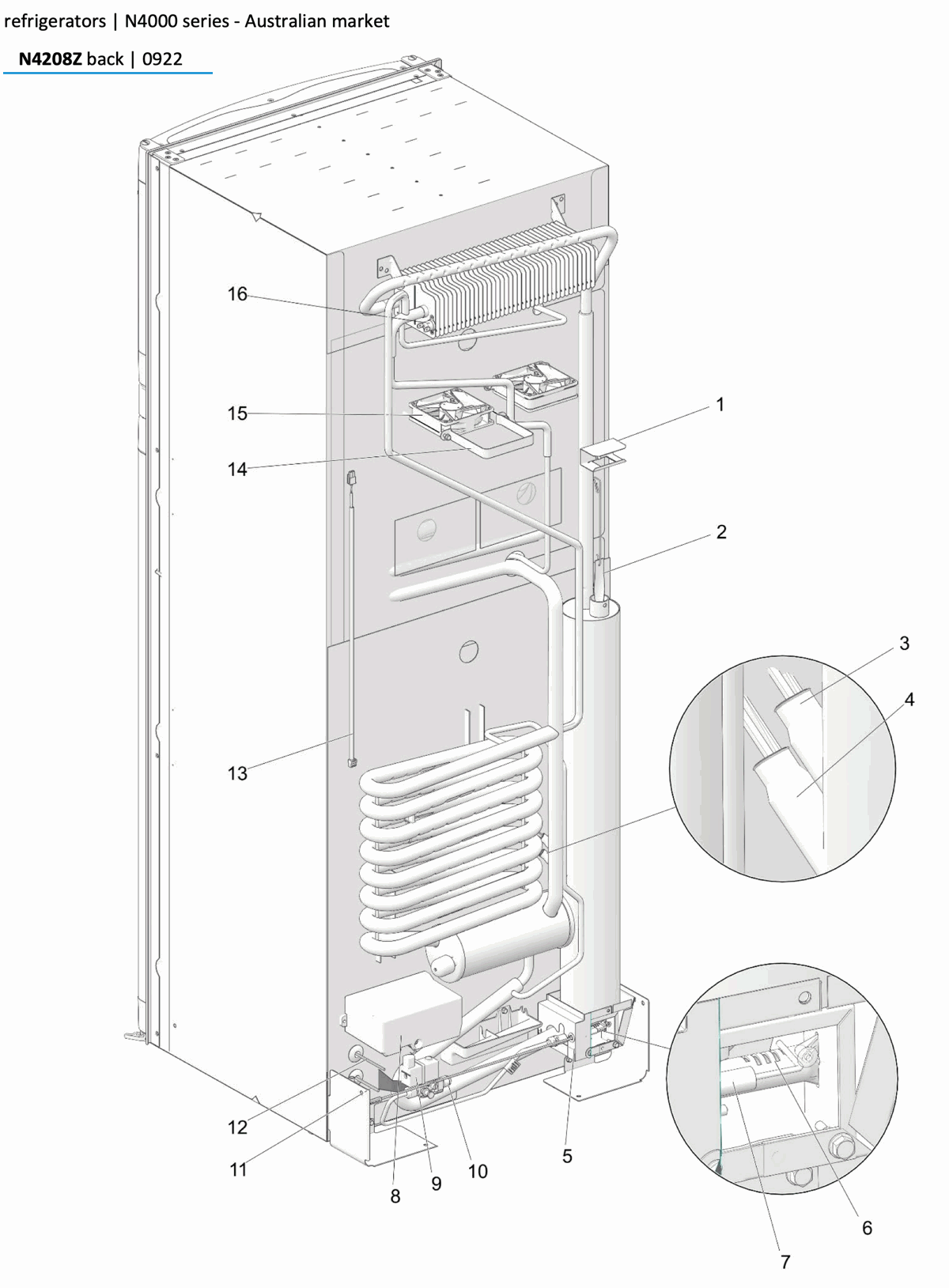

Spare Parts Diagram - Thetford N4208 Fridge - Back

Spare Parts Diagram - Thetford N4208 Fridge - Back
Spare Parts Diagram - Thetford N4208 Fridge - Back
Key Link Model/Name
1
690839
Heat cap
2
692394
Heat diffuser
3 View 691193
Heater 240VAC/300W
4 View 691125
Heater 12VDC/205W
5

Heater box
6 View 692396
Burner assembly
7
690840
Spark electrode
8 View 692248
Power control board
9 View 691195
Gas valve
10

Gas pipe
11 View 690855
Loose connector thermistor cable (power board side)
11
692341
Thermistor cable (incl. connectors)
12
690854
Communication cable (incl. connectors)
12
690856
Loose connector communication cable
13
692395
Fan extension cable
14
690865
Bracket fan (#14-15)
15

Fan 1x
16
691728
Thermostat dc fan 90
Show Thetford Absorption Fridges Diagrams
Show All Thetford Absorption Fridges Diagrams
34 Diagrams
