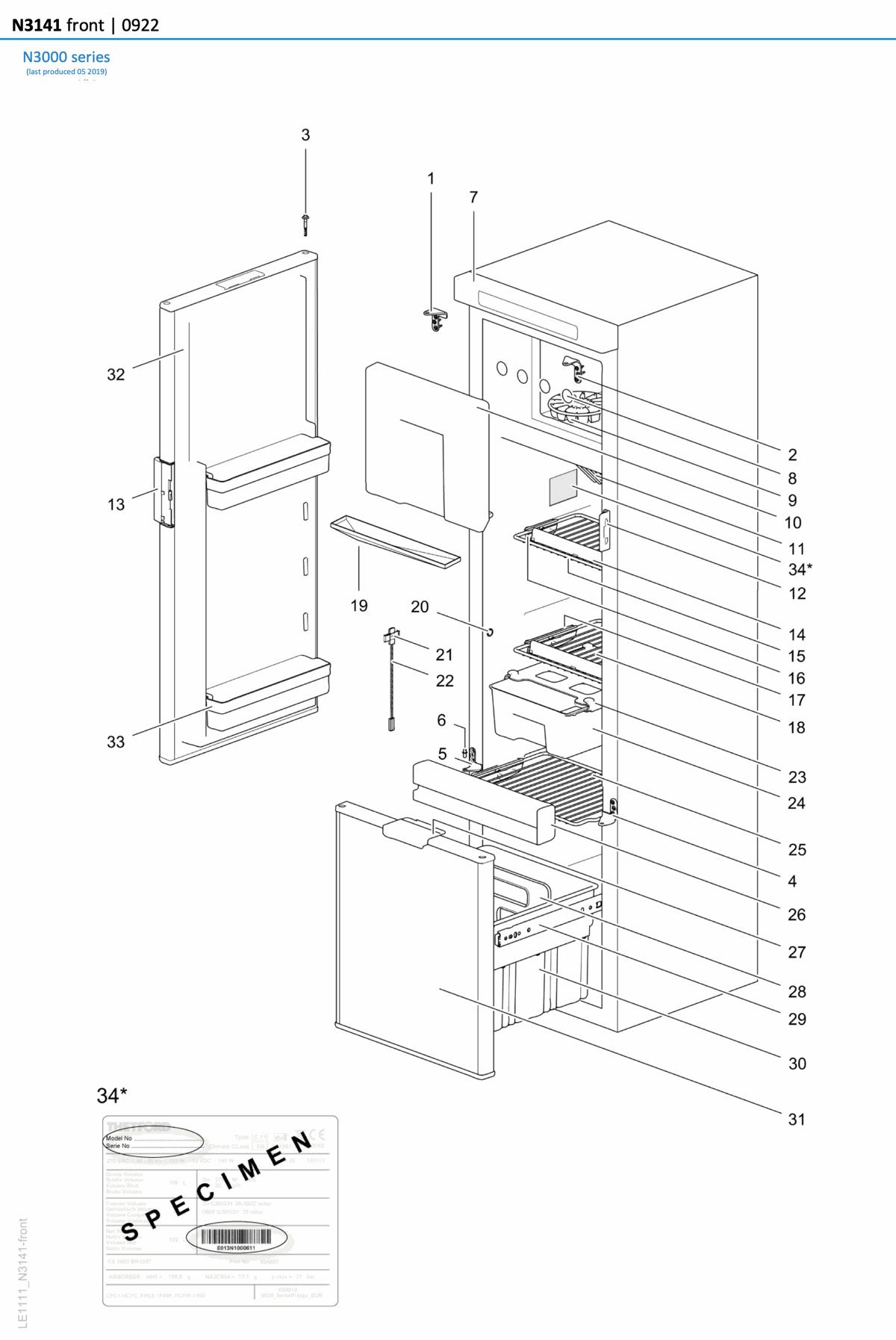

Spare Parts Diagram - Thetford N3141 Fridge - Front

Spare Parts Diagram - Thetford N3141 Fridge - Front
Spare Parts Diagram - Thetford N3141 Fridge - Front
Key Link Model/Name
1
69111127
Hinge Kit (#1-6) < 01-05-2015
1
69145627
Hinge Kit (#1-6) > 01-05-2015
2

Hinge plate top right
3

Hinge pin (including spring)
4

Hinge plate bottom right
5

Hinge plate bottom left
6

Hinge pin bottom
7

Control panel
8 View 62447908
Cap freezer bolt (6x)
9

Ice cube tray
10B View 62468008
Hinge freezer door (2x)
10 View 691112
Freezer door
11

Fin
12

Door lock plate (#12-13)
13 View 691113
Door handle (#12-13)
14 View 69111408
Shelf food retainer
15 View 69111508
Shelf 340 x 182
16
62362608
Clip shelf small
17 View 62362508
Clip shelf large
18 View 69111608
Shelf 340 x 241
19 View 69188508
Drip tray
20 View 62362208
Cap (2x)
21

Fin clip
22 View 623077
Thermistor (#21-22)
23 View 69111808
Guiding cover
24 View 69111908
Slide-out box
25 View 69111708
Shelf 340 x 268
26
-
Divider bar
27 View 69128727
Drawer handle
28 View 69112012
Drawer divider
29 View 691123
Drawer guides
30 View 69128808
Drawer bin
31 View 69052127R
Drawer door
32 View 69051927R
Cabinet door
33 View 69112108
Door bin
Show Thetford Absorption Fridges Diagrams
Show All Thetford Absorption Fridges Diagrams
34 Diagrams
