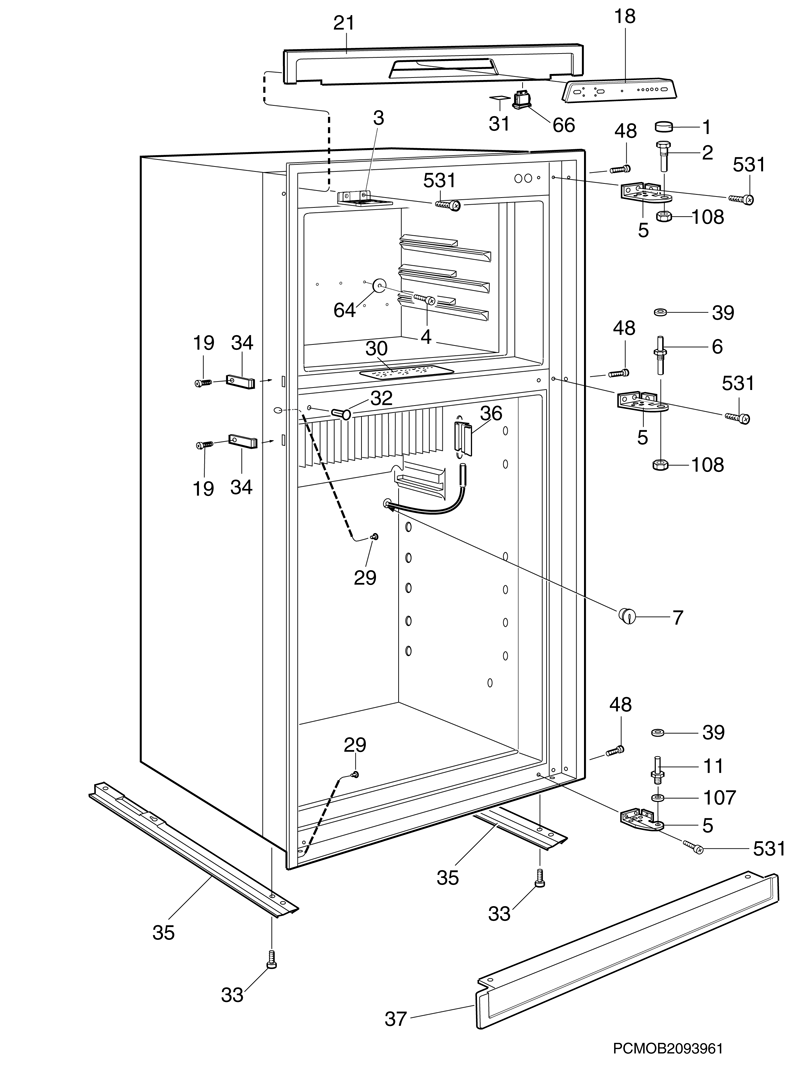

Spare Parts Diagram - RM4605 Fridge Trim, BLACK Trim

Spare Parts Diagram - RM4605 Fridge Trim, BLACK Trim
Spare Parts Diagram - RM4605 Fridge Trim, BLACK Trim
Key Link Model/Name
1 View 2932736081
Cover,black
2 View 2932647015
Hinge pin,upper
3
3851466015
Bracket,black
4
3858036019
Screw,zinc-plated,KFXS B10X38
5 View 2932643030
Hinge,black
6
2932648021
Hinge pin,black
7
2002301006
Cover
11 View 2932649011
Hinge pin,lower
18 View 3850741020
Display,assembly,black,AESIII
19
3858002052
Screw,zinc-plated,RXS B6X6,5
21 View 2932641034
Front,black
29
2930740077
Cover,black
30
3850953005
Instruction plate
31
2932779008
Label
32
3850585039
Plug,black
33
3858039096
Screw,zinc-plated,MRX M5X14
34 View 2932855014
Fastening bow
35
2932660018
Rail
36
3851088017
Bracket,thermistor
37
2932690049
Base cover,black
39
3858010022
Washer,black,5,5X12X1
48
3858004058
Screw,zinc-plated,MRX M4X4
64
3858010147
Washer,aluminium,5.2x22x1.5
66
2932680024
Switch
107
3858010113
Washer,zinc-plated,BRB 6,4X12,5
108
3858009057
Nut,black,ML6 M6
531
3858039047
Screw,zinc-plated,MRX M4X10
999
2932750116
Door reversing kit,right-left,black
Show RM4605 Fridge Diagrams
Show All RM4605 Fridge Diagrams
6 Diagrams
