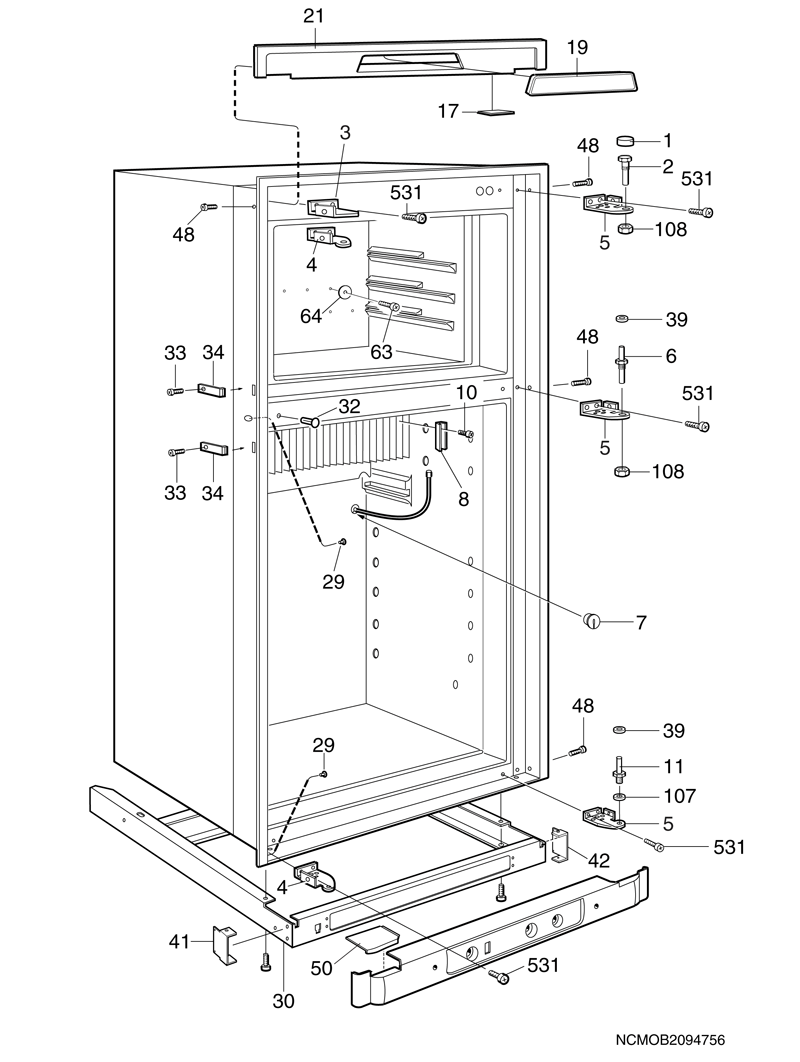

Spare Parts Diagram - RM4601 Fridge Trim, BLACK Trim

Spare Parts Diagram - RM4601 Fridge Trim, BLACK Trim
Spare Parts Diagram - RM4601 Fridge Trim, BLACK Trim
Key Link Model/Name
1 View 2932736081
Cover,black
2 View 2932647015
Hinge pin,upper
3
2932644038
Bracket,left,black
3
2932644046
Bracket,right,black
4
2932643048
Hinge,black
5 View 2932643030
Hinge,black
6
2932648021
Hinge pin,black
7
2002301006
Cover
8
2890050004
Clamp
10
3858002276
Screw,zinc-plated,RXS B8, 4,2x16
11 View 2932649011
Hinge pin,lower
17
2932330018
Covering washer
19
2933043040
Cover plate,black,Dometic
21 View 2932641034
Front,black
29
2930740077
Cover,black
30
2932836022
Base
32
3850585039
Plug,black
33
3858002052
Screw,zinc-plated,RXS B6X6,5
34 View 2932855014
Fastening bow
39
3858010022
Washer,black,5,5X12X1
41
2932481019
Bracket,left
42
2932481027
Bracket,right
48
3858004058
Screw,zinc-plated,MRX M4X4
50
2932479039
Cover plate,black,left
50
2932479047
Cover plate,black,right
63
3858036019
Screw,zinc-plated,KFXS B10X38
64
3858010147
Washer,aluminium,5.2x22x1.5
107
3858010113
Washer,zinc-plated,BRB 6,4X12,5
108
3858009057
Nut,black,ML6 M6
531
3858039047
Screw,zinc-plated,MRX M4X10
999
2932750199
Door reversing kit,right-left,black
Show RM4601 Fridge Diagrams
Show All RM4601 Fridge Diagrams
10 Diagrams
