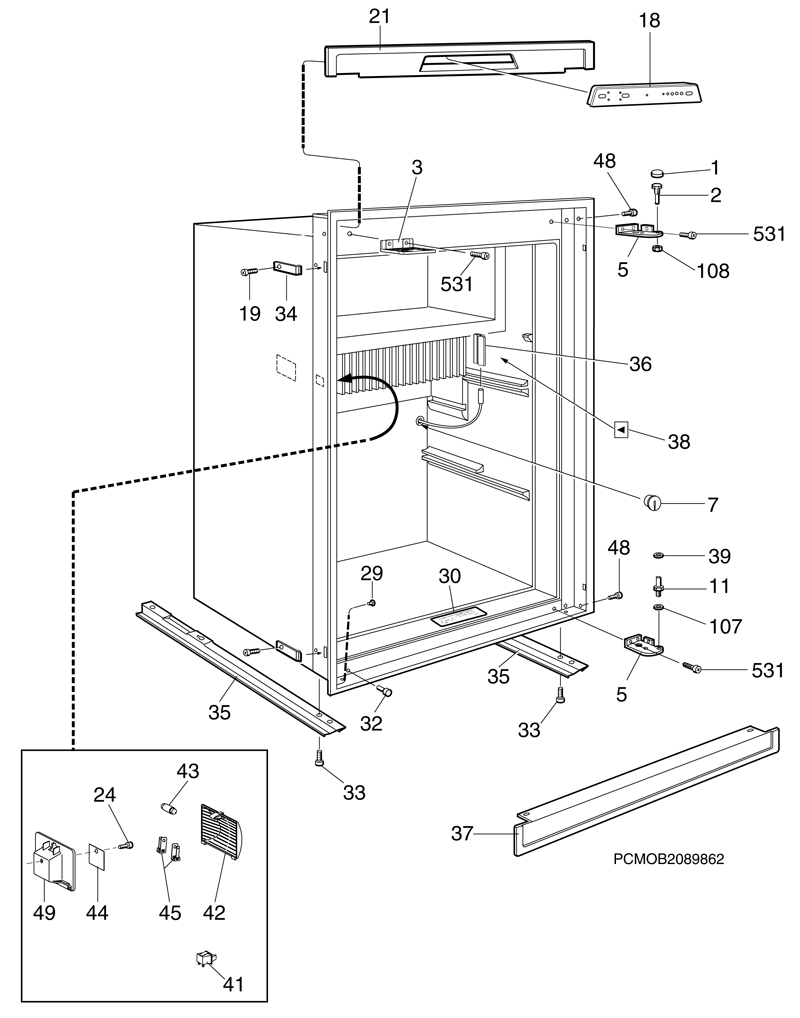

Spare Parts Diagram - RM2455 Fridge Trim, BLACK Trim

Spare Parts Diagram - RM2455 Fridge Trim, BLACK Trim
Spare Parts Diagram - RM2455 Fridge Trim, BLACK Trim
Key Link Model/Name
1 View 2932736081
Cover,black
2 View 2932647015
Hinge pin,upper
3
3851466015
Bracket,black
5 View 2932643030
Hinge,black
7
2002301006
Cover
11 View 2932649011
Hinge pin,lower
18 View 3850741020
Display,assembly,black,AESIII
19
3858002052
Screw,zinc-plated,RXS B6X6,5
21
2932641075
Front,black
24
3858006012
Screw,PT PH4x10
29
2930740077
Cover,black
30
3850953005
Instruction plate
32
3850585039
Plug,black
33
3858039096
Screw,zinc-plated,MRX M5X14
34 View 2932855014
Fastening bow
35
2932660018
Rail
36
3851088017
Bracket,thermistor
37
2932690049
Base cover,black
38
2933180016
Label
39
3858010022
Washer,black,5,5X12X1
41 View 3851000012
Switch
42
3850962014
Lamp glass
43 View 2007290006
Lamp,10W,12V
44
3850963012
Reflector
45 View 2932108018
Contact pin
48
3858004058
Screw,zinc-plated,MRX M4X4
49
3850961016
Lamp housing
107
3858010113
Washer,zinc-plated,BRB 6,4X12,5
108
3858009057
Nut,black,ML6 M6
531
3858039047
Screw,zinc-plated,MRX M4X10
999 View 2932750132
Door reversing kit,right-left,black
