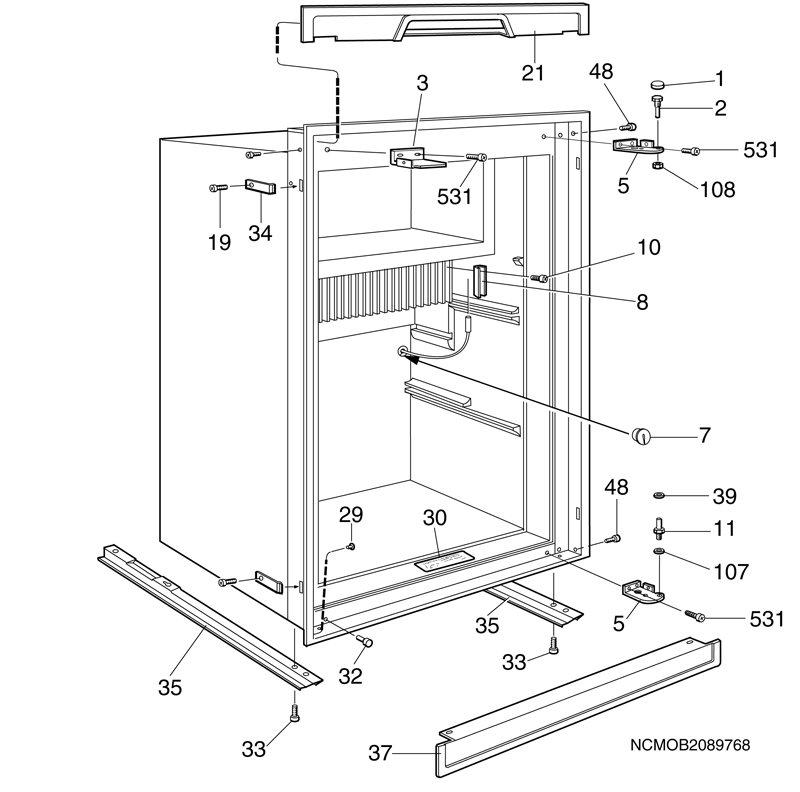

Spare Parts Diagram - RM2453 Fridge Trim, BLACK Trim

Spare Parts Diagram - RM2453 Fridge Trim, BLACK Trim
Spare Parts Diagram - RM2453 Fridge Trim, BLACK Trim
Key Link Model/Name
1 View 2932736081
Cover,black
2 View 2932647015
Hinge pin,upper
3
2932644038
Bracket,left,black
5 View 2932643030
Hinge,black
7
2002301006
Cover
8
2890050004
Clamp
10
3858002276
Screw,zinc-plated,RXS B8, 4,2x16
11 View 2932649011
Hinge pin,lower
19
3858002052
Screw,zinc-plated,RXS B6X6,5
21
2932640044
Front decoration,black
29
2930740077
Cover,black
30
3850952007
Instruction plate
32
3850585039
Plug,black
33
3858039096
Screw,zinc-plated,MRX M5X14
34 View 2932855014
Fastening bow
35
2932660018
Rail
37
2932690049
Base cover,black
39
3858010022
Washer,black,5,5X12X1
48
3858004058
Screw,zinc-plated,MRX M4X4
107
3858010113
Washer,zinc-plated,BRB 6,4X12,5
108
3858009057
Nut,black,ML6 M6
531
3858039047
Screw,zinc-plated,MRX M4X10
999 View 2932750132
Door reversing kit,right-left,black
Show RM2453 Fridge Diagrams
Show All RM2453 Fridge Diagrams
9 Diagrams
