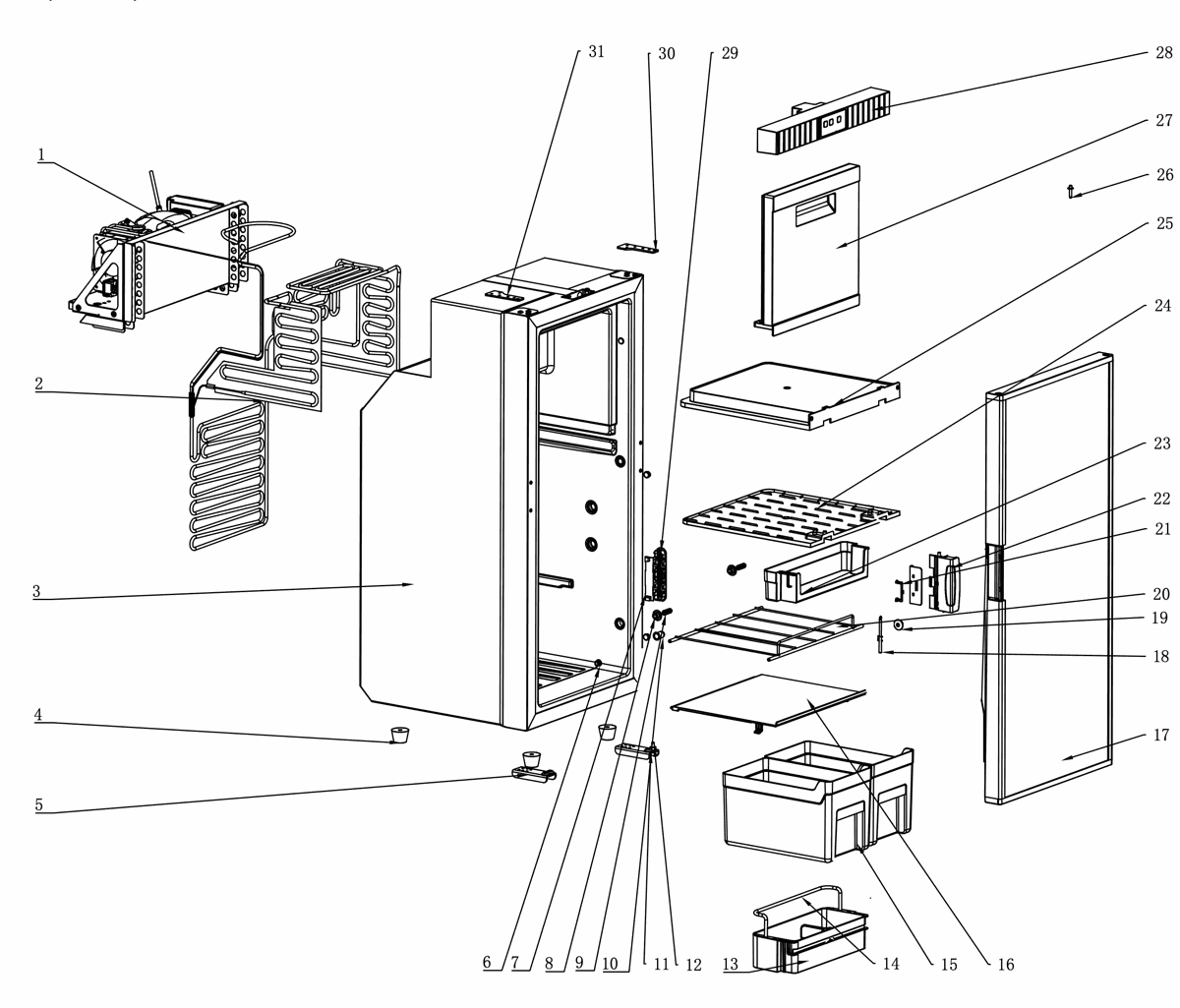

| Key | Link | Model/Name |
|---|---|---|
| 1 | N/a Compressor assembly |
|
| 2 | 10605-0226 Evaporation plate |
|
| 3 | 20401-0072 Body parts |
|
| 4 | 10205-0004 Rubber feet |
|
| 5 | 11001-0992 Pot under the hinge seat |
|
| 6 | 10202-0015 Silicone plug |
|
| 7 | 10603-0026 PCB board |
|
| 8 | 20102-0008 Through hole grid plug |
|
| 9 | 10906-0010 Grid spring |
|
| 10 | 20102-0031 Installing guide pillar |
|
| 11 | 10206-0122 Hole plug |
|
| 12 | 11001-0175 Lower door shaft |
|
| 13 |  |
20102-0044 Storage box |
| 14 | 11001-0133 Protective support |
|
| 15 | 20102-0088 Fruit bowl |
|
| 16 |  |
20102-0087 Clapboard |
| 17 | 20401-0073 Refrigerated door assembly |
|
| 18 |  |
20102-0019 Door handle bolt |
| 19 |  |
20102-0007 Blind hole grid plug |
| 20 | 11001-0157 Refrigerator rack |
|
| 21 | 20102-0023 Retaining ring |
|
| 22 | 20102-0022 Doorknob |
|
| 23 | 20102-0090 Storage box |
|
| 24 | 20102-0098 Top cover of refrigerated partition |
|
| 25 | 20102-0099 Lower cover of refrigerated partition |
|
| 26 | 11001-0174 Door shaft |
|
| 27 | 20401-0096 Refrigerated door assembly |
|
| 28 | N/a Hood assembly |
|
| 29 | 20102-0095 Lamp plate mounting housing |
|
| 30 | 11001-0991 Upper right hinge seat |
|
| 31 | 11001-0990 Upper left hinge seat |
