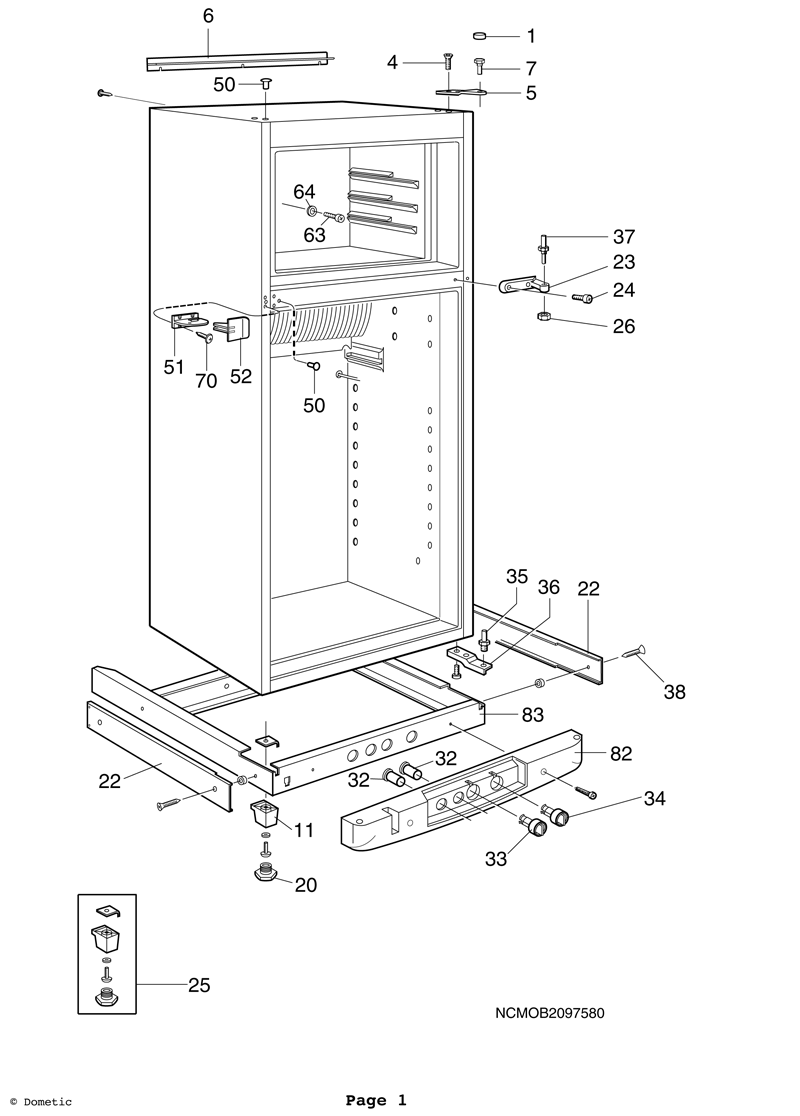

Spare Parts Diagram - Dometic RGE400 / RGE410 Upright Fridge - Trim

Spare Parts Diagram - Dometic RGE400 / RGE410 Upright Fridge - Trim
Spare Parts Diagram - Dometic RGE400 / RGE410 Upright Fridge - Trim
Key Link Model/Name
1
2932736065
Cover
4
3858056025
Screw,zinc-plated,MFX M5X10
5
2932787050
Hinge,upper,right,white
6
2932801059
Cover,white
7
2932790013
Hinge pin,upper
11
2004003006
Foot,RA34
20
2002599005
Foot,adjustable
22
2932795053
Cover
23
2932788058
Hinge,middle
24
3858004082
Screw,MRX M5x20
25
2002483002
Foot,cpl.,set
26
3858030012
Nut,hinge
32
2007479070
Button,pressure,white
32
2007479088
Button,pressure,grey
33 View 2007480318
Thermostat knob,complete,white
33
2007480334
Thermostat knob,complete,grey
34
2007480342
Knob,selector,white
34
2007480367
Knob,selector,grey
35
2932792019
Hinge pin,lower
36
2932789023
Hinge,lower,right
37
2932791011
Hinge pin,middle
38
3858003035
Screw,FXS B10x22
50
2932373018
Cap,white
51
2932777010
Bracket
52 View 2932778018
Locking arm
63
3858036019
Screw,zinc-plated,KFXS B10X38
64
3858010147
Washer,aluminium,5.2x22x1.5
70
3858048014
Screw,ST 3,5x10
82
2932782093
Base panel,white
82
2932782101
Base panel,grey
83
2932836014
Base
Show RGE400 / RGE410 Fridge Diagrams
Show All RGE400 / RGE410 Fridge Diagrams
5 Diagrams
