Gas Jet - No. 58 - Suits Dometic RGE400 / RM4601 / RA1302 Fridges
$49.95

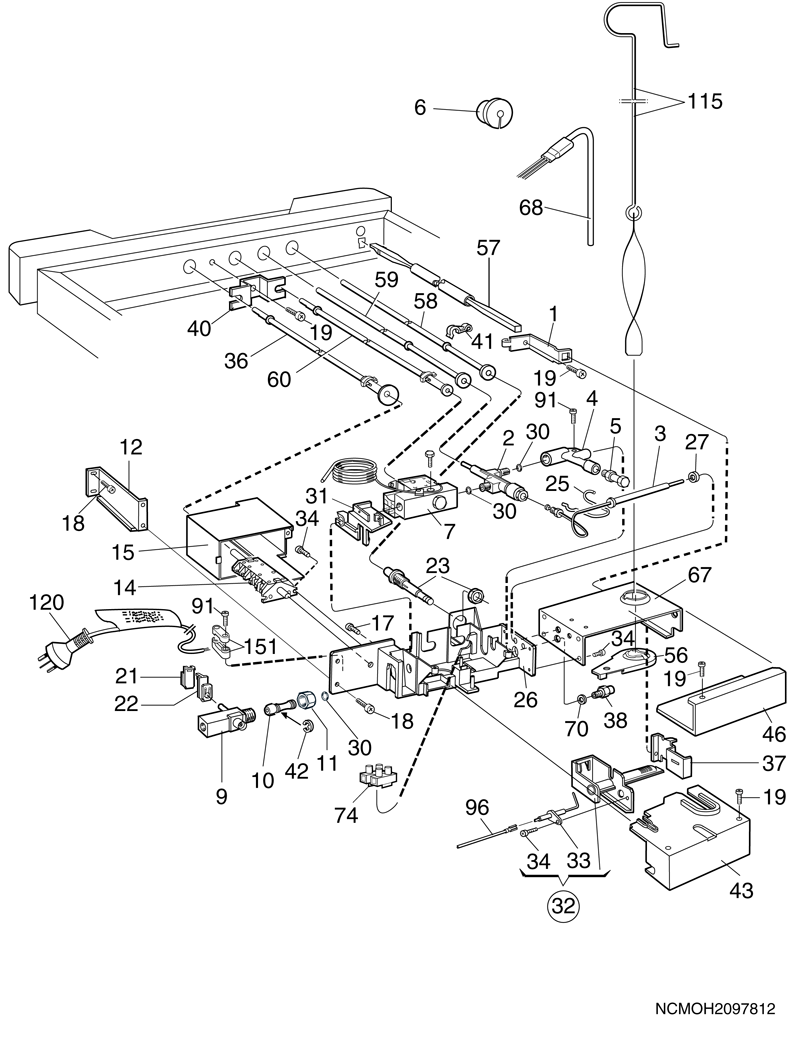

| Key | Link | Model/Name |
|---|---|---|
| 1 | 2007648005 Holder,light conductor |
|
| 2 |  |
2931657015 Safety valve |
| 3 |  |
2931496042 Thermo element |
| 4 | 2007518000 Coupling |
|
| 5 |  |
2932097013 Nipple |
| 6 | 2002301006 Cover |
|
| 7 | 3850223011 Thermostat,V61-PO130 |
|
| 9 | 2007430024 Gas cock |
|
| 10 | 2007429000 Nipple |
|
| 11 | 172809006 Nut |
|
| 12 | 2932796028 Bracket |
|
| 14 | 2007664002 Switch |
|
| 15 | 2007661008 Cover |
|
| 17 | 3858039039 Screw,zinc-plated,MRX M4X8 |
|
| 18 | 3858039047 Screw,zinc-plated,MRX M4X10 |
|
| 19 | 3858002144 Screw,zinc-plated,RXS B6X9,5 |
|
| 21 |  |
2007577014 Spring |
| 22 |  |
2007578004 Spring |
| 23 |  |
2931796011 Piezo lighter |
| 25 | 2007425008 Retaining spring |
|
| 26 | 3850548011 Bracket |
|
| 27 | 3858010139 Washer,brass |
|
| 30 | 140748005 Sealing ring,o-ring,T2527-1 |
|
| 31 | 2007428002 Snapper |
|
| 32 | 2007503036 Burner,complete |
|
| 33 |  |
2930379009 Electrode |
| 34 | 3858005014 Screw,zinc-plated,RXK B6X9,5 |
|
| 36 | 2007475052 Shaft,complete |
|
| 37 | 2007651017 Guidance,burner |
|
| 38 |  |
200741921 Jet,complete,no. 58 |
| 40 | 2007567007 Support,axle |
|
| 41 | 2005112004 Clip |
|
| 42 | 3858034022 Retaining ring,zinc-plated,8 |
|
| 43 | 2007440007 Cap |
|
| 46 | 2007505007 Cover |
|
| 56 | 2007458017 Interlocking washer |
|
| 57 | |
2932797018 Light conductor |
| 58 | 2007468115 Push rod |
|
| 59 | 2007468099 Push rod |
|
| 60 | 2007471044 Shaft,complete |
|
| 67 | 2007502038 Burner housing |
|
| 68 |  |
3850644208 Heater,240V, 300W |
| 70 | 2007457001 Washer,0,5mm |
|
| 74 | 3858062023 Terminal block |
|
| 91 | 3858002177 Screw,zinc-plated,RXS B6X19 |
|
| 96 | 2931360099 Conductor,electrode |
|
| 115 | 2932667047 Flue baffle |
|
| 120 | 3850555024 Cord set |
|
| 151 | 561014010 Cable clamp |
