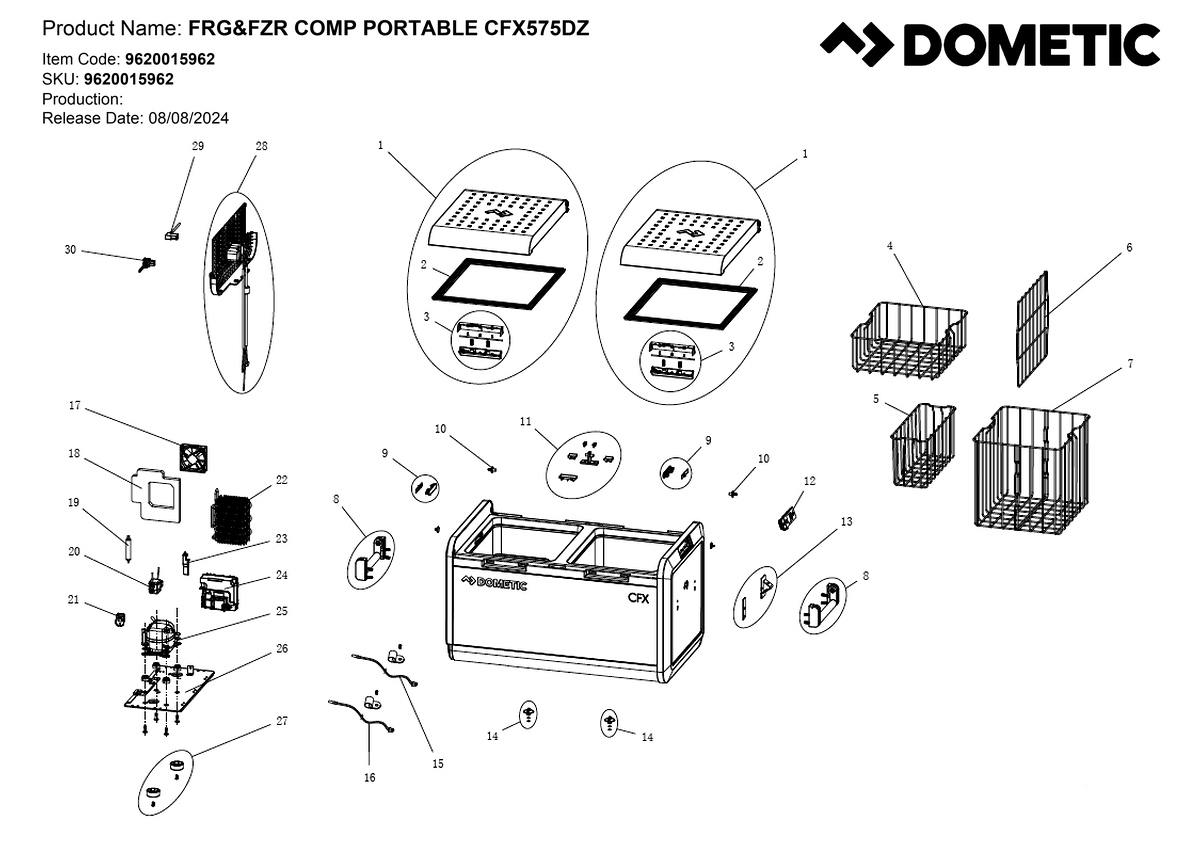

Spare Parts Diagram - Dometic CFX5 75DZ Portable Fridge

Spare Parts Diagram - Dometic CFX5 75DZ Portable Fridge
Spare Parts Diagram - Dometic CFX5 75DZ Portable Fridge
Key Link Model/Name
1 View 4450036453
LID CFX575
2 View 4450035892
GASKET LID CFX375/575
4 View 4450019882
BASKET MEDIUM CFX375/575
5 View 4450019883
BASKET SMALL CFX375/575
6 View 4450019885
DIVIDER BASKET CFX375/575
7 View 4450019884
BASKET LARGE CFX375/575
8 View 4450021513
HANDLE ASSY CFX355-395/555-595
9 View 4450035874
LIGHT ASSY CFX228-257/525-595
12 View 4450036443
PCB DISPLAY CFX3/CFX5
15 View 4450021668
THERMISTOR CFX335-395/CFF45C/D
16 View 4450021667
THERMISTOR LONG CFX375/395
17 View 4450033936
FAN CFX575/595
19
4450001808
DRIER FILTER7G CFF/CFX/RCD/RUC
20
4450011610
SOLENOID CFX375/395
22 View 4450036457
CONDENSER CFX535-595
24 View 4450034550
CONTROL UNIT CFX335-395
25 View 4450035292
COMPRESSOR CFX535-575
28 View 4450036448
GRILL KIT CFX575
29 View 4450032009
CABLE AC CF/CR/CFX/CRX
30 View 4450032003
CABLE DC 1.5M 15AMP CFX395/595
Show Dometic CFX3 Fridge Diagrams
Show All Dometic CFX3 Fridge Diagrams
14 Diagrams
