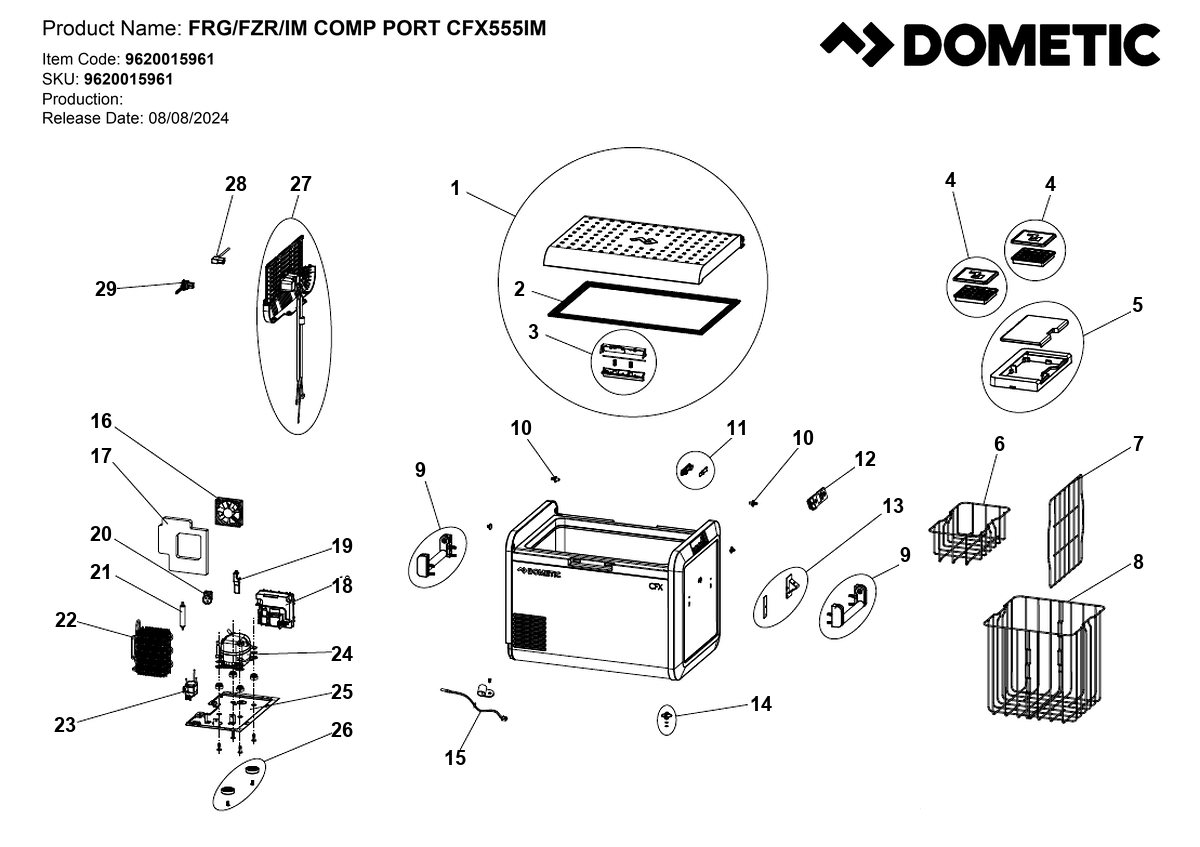

Spare Parts Diagram - Dometic CFX5 55IM Portable Fridge

Spare Parts Diagram - Dometic CFX5 55IM Portable Fridge
Spare Parts Diagram - Dometic CFX5 55IM Portable Fridge
Key Link Model/Name
1 View 4450036452
LID CFX555/555IM
2 View 4450035894
GASKET LID CFX355/555
3 View 4450036459
LATCH LID CFX555-595
4 View 4450021517
TRAY ICE CFX355IM/555IM
5 View 4450021518
HOUSING ICE CFX355IM/555IM
6 View 4450020070
BASKET SMALL CFX355IM/555IM
7 View 4450019877
DIVIDER BASKET CFX355/555/IM
8 View 4450019876
BASKET LARGE CFX355/555/IM
9 View 4450021513
HANDLE ASSY CFX355-395/555-595
11 View 4450035874
LIGHT ASSY CFX228-257/525-595
12 View 4450036443
PCB DISPLAY CFX3/CFX5
15 View 4450021668
THERMISTOR CFX335-395/CFF45C/D
16 View 4450033935
FAN CFX228-257/527-555
18 View 4450034550
CONTROL UNIT CFX335-395
21
4450001808
DRIER FILTER7G CFF/CFX/RCD/RUC
22 View 4450036457
CONDENSER CFX535-595
23
4450011610
SOLENOID CFX375/395
24 View 4450035292
COMPRESSOR CFX535-575
27 View 4450036447
GRILL KIT CFX555/IM
28 View 4450032009
CABLE AC CF/CR/CFX/CRX
29
4450029469
CABLE DC 2.0M CFX28-75
Show Dometic CFX3 Fridge Diagrams
Show All Dometic CFX3 Fridge Diagrams
14 Diagrams
