Spare Part Diagrams - Dometic CRX50 Upright Fridge

Spare Part Diagrams - Dometic CRX50 Upright Fridge
Spare Part Diagrams - Dometic CRX50 Upright Fridge
Key Link Model/Name
1
065COM-DOORA SB
DOOR CR50/CRX50
2 View 82-MC-065MT26
PANEL DOOR CR50/CRX50
3
065LOCKINGA SB
LOCKING ASSY CR50/CRX50
4
Unavailable
5
Unavailable
6
Unavailable
7
Unavailable
8
Unavailable
9
Unavailable
10
Unavailable
11
Unavailable
12
Unavailable
13
Unavailable
14 View 42-065-065GS01
GASKET DOOR CR50/CRX50
15 View 40-065-07AP
DIVIDER DOOR SHELF CR/CRX
16 View 40-065-05AB
SHELF UPPER DOOR CR50/CRX50
17 View 40-065-06PT
COVER SHELF UPPER CR50/CRX50
18 View 40-065-17PT
COVER GRILL CR50/CRX50
19 View 46-065-10SSW
GRILL CR50/CRX50
20 View 4450011882
DOOR AND BASE FREEZER CRX50
21 View 4450010214
MEMBRANE CRX50/65/80
22
4450010564
COVER LED CRX50/65/80
23 View 4450010219
PCB DISPLAY CRX50/65/80
24 View 4450010423
THERMISTOR CRX
25
40-501-10AB9D
COVER THERMISTOR RPD190/218
26 View 40-065-25AP98
CAP SCREW COVER CR/CRX
27 View 46-065-38BX
PLATE SUPPORT CR/CRX
28 View 40-065-13AP
PLATE TOP CR50/CRX50
29
Unavailable
30
Unavailable
31
46-SB-SR15SC
BALL LOCK PLATE CR/CRX
32 View 46-065-20SN
SPRING LOCK PLATE CR/CRX
33 View 46-065-31BX10
COVER LOCK CR/CRX
34
46-065-21BX
SHAFT LOCK PLATE CR/CRX
35 View 46-065-08BX
HINGE TOP CR/CRX
36
10-02-MFC20AD21
CONTROL UNIT CFX95DZ
37
10-01-ACV20DC11
COMPRESSOR CFX35/50/65/CRX
38 View 10-05-GR75LQ
DRIER FILTER7G CF/CFX/RPD
39 View 4450010205
CONDENSER CRX
40 View 4450011023
FAN CONDENSER CRX
41 View 4451050929
GUARD FAN CRX
42 View 4451015130
PLUG NO ORING CRX
43 View 4450002488
ORING PLUG CRX
44 View 4450010185
PIPE DRAIN CRX
45
Unavailable
46 View 40-065-15AP
LOCK LOWER PLATE CR/CRX
47 View 46-065-09BX
HINGE LOWER CR/CRX
48 View 46-065-10SSW
GRILL CR50/CRX50
49 View 40-065-32PT
DIVIDER CR50/CRX50 SHELF
50 View 40-065-16PT
DOOR INNER FRIDGE CR50/CRX50
51 View 46-065-04BX
HOLDER BOTTLE CR050
52
Unavailable
53
Unavailable
54 View 38-AU-2000B4
CABLE AC CF RANGE & CR140
55 View 33-01-SST23A1
SOCKET CFX/CRX

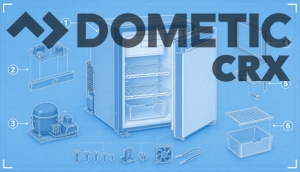

Show Dometic CRX Fridge Diagrams
