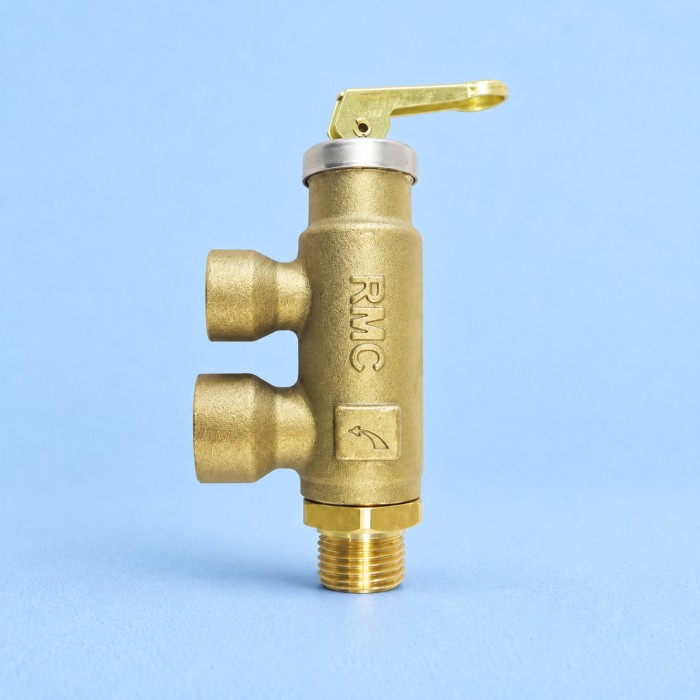

RMC HPNR503 High-Pressure Expansion Non-Return Valve - 15mm - 1400kPa
RMC HPNR503 High-Pressure Expansion Non-Return Valve - 15mm - 1400kPa
John Guest

RMC HPNR503 High-Pressure Expansion Non-Return Valve 15mm · 1400kPa

$175
Short delay, none in stock.
Order now for estimated dispatch on 7th Oct 2026.

Delivery to Your Door

Postage Australia Wide

Not Sure This Is the Right Part?

Show us a photo or model number. We’ll help you check before you buy.

Our Recommendation Promise

Buy the part we recommend for your setup. If we get it wrong, we’ll cover return postage and delivery of the correct replacement.

Description

RMC HPNR503 is a 15 mm high pressure expansion non-return valve for coil type heat exchange water heaters. It combines non-return and pressure relief functions in one valve.

The non-return function helps prevent hot water backflow into the mains supply, while the relief valve protects the coil from over-pressure. It is intended for installation on the cold/inlet supply of a compatible water heater.

Features

  • Combination non-return and pressure relief valve for heat exchange water heaters.
  • Directs expanded water back to the storage tank rather than dumping it to waste.
  • Suitable for horizontal or vertical installation.
  • Dezincification-resistant brass construction for potable water applications.
  • Sealed spring cavity helps prevent the spring seizing due to calcification.
  • 1 year warranty.

Specifications

  • Manufacturer Part Number: HPNRX1503
  • Brand: John Guest
  • Model: HPNR503
  • Type: HPNR unrestricted high pressure expansion non-return valve
  • Nominal size: 15 mm
  • Pressure setting: 1400 kPa
  • Maximum temperature: 99 °C
  • Kilowatt capacity: 10 kW
  • Inlet thread: DN15Cu 1/2
  • Coil connection: G3/8 female
  • Static tank connection: G1/2 female
  • Dimensions: 119 mm high x 53 mm wide
  • Body material: DZR forged brass
  • Spring material: stainless steel
  • O-ring material: nitrile
  • Seal material: silicon
  • Check valve materials: EPDM, POM and stainless steel
  • Approval: AS 1357.1, WaterMark LIC WMKA 0938
