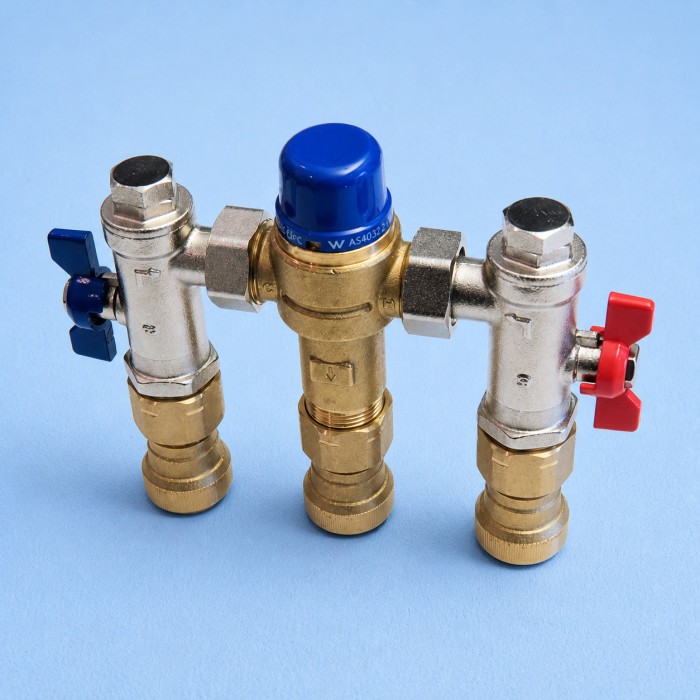

RMC HeatGuard SharkBite Four-in-One Tempering Valve 16mm · Downwards

Description

RMC HeatGuard SharkBite 4-in-1 is a pre-built tempering valve assembly that mixes hot and cold water to provide tempered hot water at a controlled outlet temperature.

This downwards configuration is intended for potable hot water plumbing systems where integrated inlet fittings and SharkBite push-to-connect connections are required.

Features

• Pre-built valve assembly with integrated inlet fittings for faster installation and simplified maintenance.
• 4-in-1 inlet fittings incorporate a ball valve, strainer, non-return valve and test port.
• Strainers help protect the valve from impurities in the water supply.
• Non-return check valves help prevent backflow contamination.
• Tamper-proof temperature adjustment helps prevent accidental changes after commissioning.
• SharkBite push-to-connect fittings are removable after installation and do not require soldering, clamps, unions or glue.
• 1 year warranty.

Specifications

• Brand: SharkBite
• Connection size: 16 mm SharkBite push-to-connect.
• Configuration: Downwards outlet.
• Body material: Lead-free DZR brass.
• Grab ring: 316 stainless steel.
• O-ring: EPDM.
• Tube liner: Polysulfone for PEX installations.
• Dimensions: L 61 mm, M 82 mm, N 152 mm.
• PEX SDR9 operating rating: 2000 kPa at 20°C.
• PEX SDR9 maximum operating values: 1000 kPa at 70°C.
• Standards and approvals: AS 4032.2, WMKA 1593.
• Lead-free compliant to NCC Volume Three requirements.
