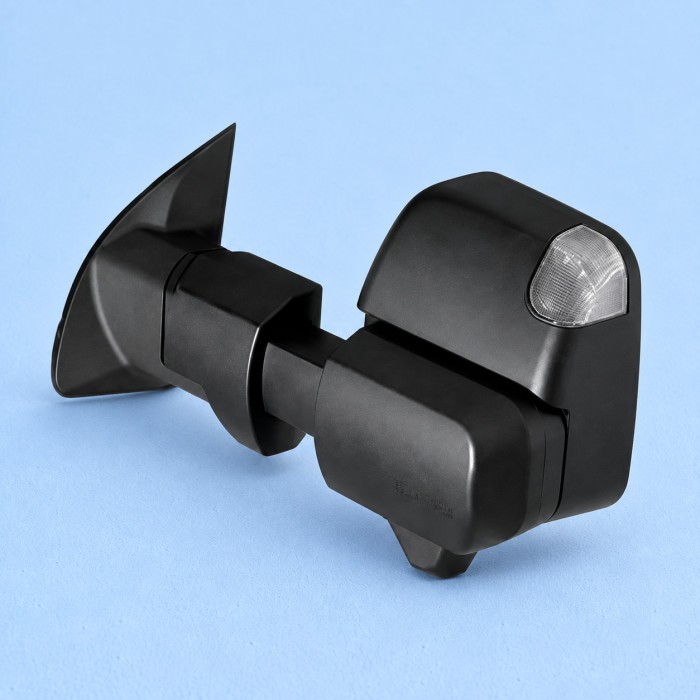

MSA 4X4 Towing Mirrors Black, Electric, Heated, Indicators, Blind Spot Monitoring, Camera Provision, Power Fold · Suits Mitsubishi Triton MV 02/2024 · Current

Description

MSA 4x4 Towing Mirrors are designed to provide improved rear vision and safer towing for caravans, camper trailers, boats and other large loads. Featuring a patented pivoting extension slide, the mirror can extend outward when towing and return to a standard driving position when not in use.

The large single mirror design delivers a clear, consistent field of view to help reduce visual confusion while driving. Multiple mirror positions allow drivers to adjust their visibility to suit different towing conditions, while minimising vibration. When fitted with electric mirror control, the mirror lens can be adjusted vertically and horizontally using the vehicle's existing mirror controller. Models without electric control require manual adjustment of the mirror lens.

Power Fold models allow the entire mirror assembly to electronically fold in and out using the vehicle's controls. On models not specified as Power Fold, the mirrors can be folded manually. All mirrors are designed to fold inwards or outwards when bumped, which is useful in car parks or when navigating tight tracks. Note: Features such as power fold, electric adjustment and blind spot monitoring are only available on applicable vehicle models originally equipped with these functions.

Manufactured using durable injection moulded and die-cast aluminium components, MSA 4x4 towing mirrors are built for Australian conditions. They mount directly to the vehicle door in place of the original mirrors and are designed to retain compatible factory functions, depending on the vehicle and model selected.

Features

• Patented pivoting extension slide with four usable mirror positions
• Large single mirror lens with electric vertical and horizontal adjustment
• Retains compatible factory heated-mirror, indicator, blind-spot monitoring and power-fold functions
• Camera provision accepts the vehicle's original side-view cameras; the cameras must be transferred and realigned during installation
• Power fold operates from the vehicle's original fold switch
• Designed to fold inwards if contacted
• Injection-moulded and die-cast aluminium components
• ADR compliant
• 5 year warranty.

Specifications

• Brand: MSA 4x4
• Vehicle application: Mitsubishi Triton MV, 02/2024 onwards
• Finish: Black
• Product type: Power-fold towing mirror set with camera provision
• Vehicle requirements: Original mirrors with electric adjustment, heating, indicators, blind-spot monitoring, power fold and side cameras
• Supplied: 1 left mirror, 1 right mirror, complete fitting kit and installation instructions
• Camera provision: Original left and right side cameras are transferred into the corresponding MSA mirror housings; cameras are not supplied
• Mounting: Direct replacement using the existing door mounting points and wiring plugs
• Mirror mounting nut torque: 8 Nm
• Overall fitted vehicle width: 2215 mm in standard driving position; 2340 mm standard driving extended; 2415 mm horizontal; 2540 mm towing extended
• Initial setup: Cycle power fold in and out at least three times after installation to synchronise the mirror heads

Further Information

• View the related PDF: MSA 4X4 Mitsubishi Triton MV Towing Mirror Installation Guide
