Mopeka Pro Check Universal Bluetooth Tank Sensor Steel Tank Version

Description

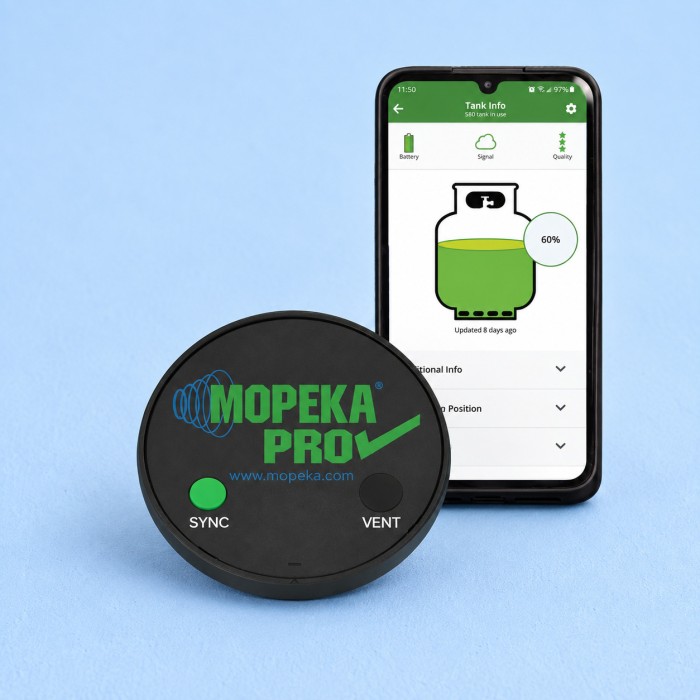

The Mopeka Pro Check Universal is a bottom-mounted ultrasonic sensor that sends tank-level readings to the free Mopeka Tank Check app over Bluetooth. It monitors propane, butane, water, diesel, oil and other supported liquids in compatible vertical or horizontal tanks.

This M1017023 steel-tank version mounts beneath a compatible tank using its magnets, spacers and dielectric grease. For an aluminium LPG cylinder, use the separately sold curved LPG-cylinder collar; for a flat-bottom non-magnetic tank, use the separately sold flat-bottom collar. The two collar shapes are not interchangeable.

The app supports multiple sensors, configurable alerts, temperature readings, a tank bubble-level indicator, sample-timing settings and firmware updates.

Features

• Bluetooth level monitoring via the free Mopeka Tank Check app.
• Bottom-mounted ultrasonic sensor for measuring compatible tank contents without penetrating the tank.
• Suitable for propane, butane, water, diesel, oil and other liquid commodities.
• Magnetic mounting for compatible steel tanks, with mounting collar options for aluminium, plastic and poly tanks.
• Supports vertical and horizontal tank orientations.
• App features include multiple sensor support, custom alarms, firmware updates, temperature sensing and tank bubble level indication.
• Replaceable coin-cell battery for ongoing serviceability.
• 1 year warranty.

Specifications

• Manufacturer Part Number: M1017023
• Brand: Mopeka
• Barcode: 854069008503
• Sensor type: Bottom-mounted ultrasonic tank-level sensor
• Communication: Bluetooth Low Energy
• App: Free Mopeka Tank Check app for compatible Apple and Android devices
• Steel-tank mounting: Magnetic attachment with spacers and dielectric grease
• Non-magnetic tank mounting: Separate Mopeka mounting collar required
• Curved aluminium LPG cylinders: Use the curved LPG-cylinder collar set
• Flat-bottom non-magnetic tanks: Use the flat-bottom tank collar set
• Supported tank orientation: Vertical or horizontal
• Supported commodities include propane, butane, fresh or grey water, oil, diesel, chemicals, beverages and other compatible liquids
• Maximum stated tank capacity: Up to 250 gallons
• Operating temperature range: -50 to 60 °C
• Battery: Replaceable CR2032 coin cell
• Typical battery life: 3 to 5 years
• Not suitable for fibreglass tanks
• Shipping Weight: 70 grams.
• Shipping Dimensions: 2 cm x 12 cm x 15 cm.

Further Information

• View the related PDF: Mopeka Pro Check Universal Tank Sensor Product Guide
