Enerdrive SI-TPS-01 Water Tank Pressure Sensor Suits Tanks Up to 500mm Deep

Description

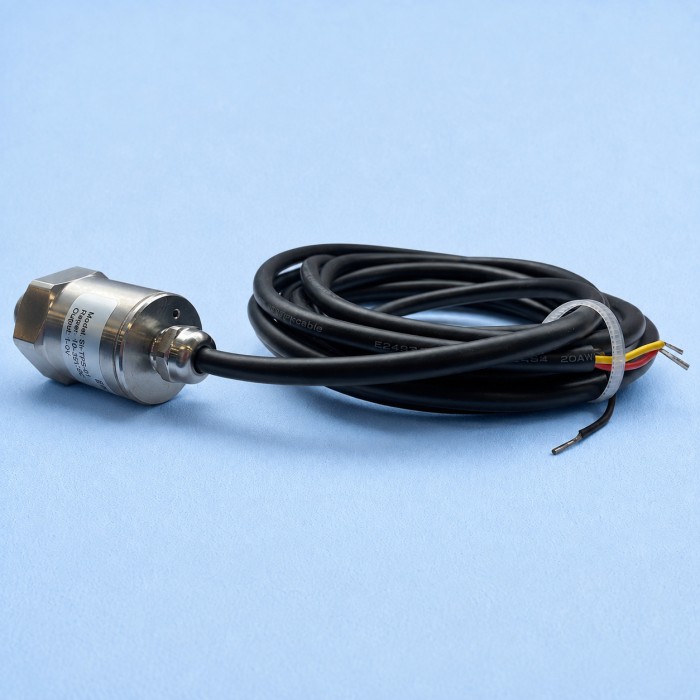

Compact pressure-type tank sender for monitoring water level in tanks up to 500 mm deep. This Enerdrive / Simarine SI-TPS-01 sensor is designed for tank level measurement using a voltage-output pressure sender.

The sensor mounts horizontally in the low side of the tank, or vertically in the outlet pipe before the pump, making it suitable for installations where a top-mounted rod sender is not preferred.

Features

• Measures water level in tanks up to 500 mm deep
• Compact pressure-sender design with integrated cable for connection to compatible tank monitoring systems
• IP67-rated construction for use in RV and marine environments
• Can be mounted in the side of the tank or in the outlet pipe before the pump
• 1 year warranty.

Specifications

• Manufacturer Part Number: SI-TPS-01
• Brand: Enerdrive
• Model: SI-TPS-01
• Tank depth range: 0-500 mm
• Pressure type: Gauge
• Accuracy: 0.5%
• Cable length: 2 m
• Housing material: Stainless steel 304
• Ingress protection: IP67
• Wire connection: Red = input positive, black = input/common negative, yellow = signal output
• Mounting position: Horizontal in the low side of the tank, or vertical in the outlet pipe before the pump
• Mounting note: Do not mount on the bottom of the tank
• Mounting type: 1/4 BSP thread, 25 mm hexagon
