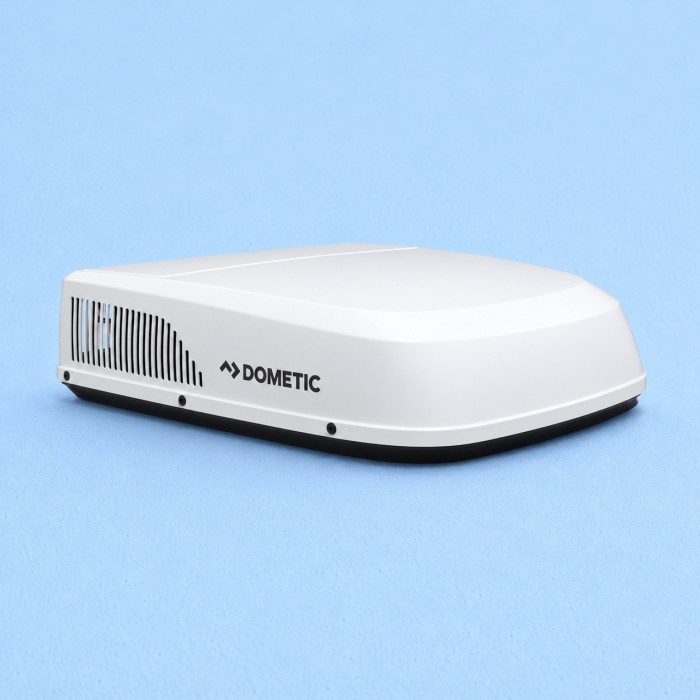

Dometic IBIS Core 3000 Air Conditioner with Core ADB 3.0kW Cooling / 2.2kW Heating

Description

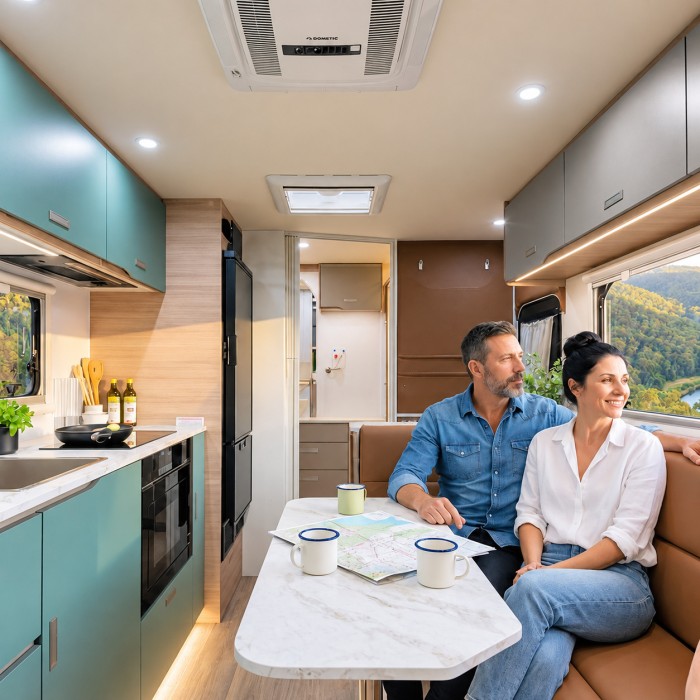

The Dometic IBIS Core 3000 is a compact rooftop air conditioner for caravans and recreational vehicles, providing 3.0 kW cooling and 2.2 kW heating. This complete pack includes the rooftop unit and matching Core air distribution box (ADB), along with the controls and standard mounting components.

Its 805 x 722 mm rooftop footprint leaves more roof area available for other equipment. The supplied installation components suit 360 x 360 mm or 400 x 400 mm roof openings and roofs up to 60 mm thick; thicker roofs up to 100 mm require the separately available extension duct and longer bolt kits.

Features

• Inverter technology varies compressor operation for efficient, quieter climate control
• Bluetooth connectivity for compatible wireless controls
• Recirculates cabin air rather than drawing in outside dust and pollen
• Protected roof-frame design helps resist dust and water ingress
• 3 year warranty.

Specifications

• Brand: Dometic
• Cooling capacity: 3000 W
• Heating capacity: 2200 W
• Input supply: 220-240 V AC, 50-60 Hz
• Rated current: less than 6.8 A cooling; less than 5.1 A heating
• Maximum current: less than 7.5 A
• Required fuse: 10 A
• Operating temperature range: -2°C to 52°C
• Refrigerant: R32, 420 g
• Rooftop protection class: IPX5
• Rooftop unit dimensions: 805 x 722 x 225 mm
• Installed weight: less than 35 kg including rooftop unit and ADB
• Suitable roof openings: 360 x 360 mm or 400 x 400 mm
• Roof thickness: 32-60 mm with a 360 mm opening; 25-60 mm with a 400 mm opening
• Optional extension duct and longer bolt kits support roof thicknesses from 60-100 mm
• Maximum installation-surface inclination: 10°
• Minimum vehicle floor area: more than 4 m²
• Minimum rooftop clearance from nearby objects: 50 mm on all sides where objects are under 60 mm high; 150 mm on an affected side where an object is over 60 mm high
• Minimum clearance from a roof exhaust flue terminal after installation: 300 mm
• Supplied with: rooftop unit, Core ADB, ADB centre cover, roof frame, remote control, two batteries, remote mounting bracket, four duct sections, four cable connectors, four fastening bolts and two mounting-bracket screws
• Shipping Weight: 60.00 Kgs.
• Shipping Dimensions: 120 cm x 80 cm x 50 cm.
