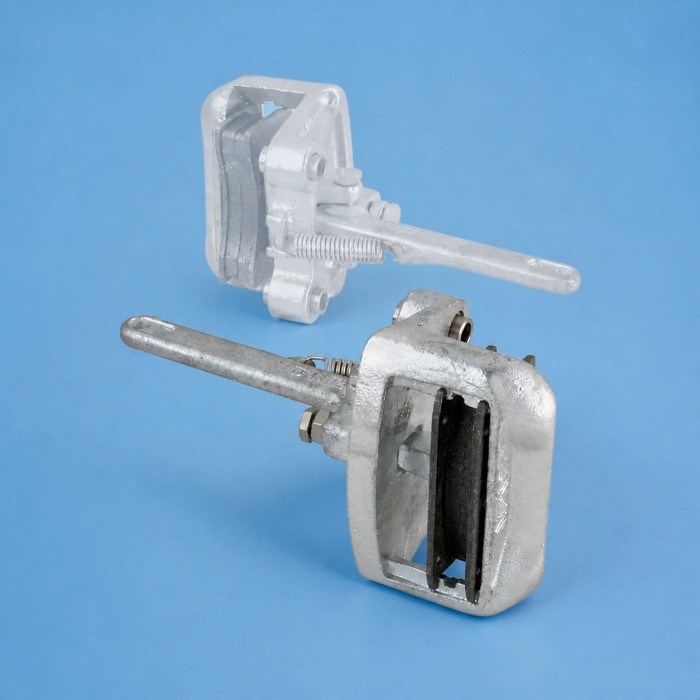

AL-KO Light-Duty Mechanical Disc Brake Single / Pull-Forward

$108.69$81.95
Short delay, none in stock.
Order now for estimated dispatch on 21st Oct 2026.

Delivery to Your Door

Postage Australia Wide

Not Sure This Is the Right Part?

Show us a photo or model number. We’ll help you check before you buy.

Our Recommendation Promise

Buy the part we recommend for your setup. If we get it wrong, we’ll cover return postage and delivery of the correct replacement.

Description

Disc brakes are used for applications where resistance to corrosion and heat dissipation is paramount. The open nature of disc brakes makes washing after salt water immersion a simple task. ALKO light duty mechanical disc brake calipers are hot dip galvanised. The bushes, springs and bolts, etc., are made from stainless steel.

Disc brakes also allow quicker cooling during brake applications and therefore the disc brake system is less prone to brake fade.

The forward pull spring mechanism is used on trailers with beam axles. The simple cable actuation of these calipers and their uncomplicated design makes servicing a task that can be carried out by the "handyman", saving on servicing cost. ALKO mechanical calipers are suitable for disc hubs and rotors of thicknesses from 12mm to 15mm.

Features

  • 1 year warranty.

Specifications

  • Manufacturer Part Number: 323300
  • Brand: AL-KO
  • Can be used on either side (Left or Right)

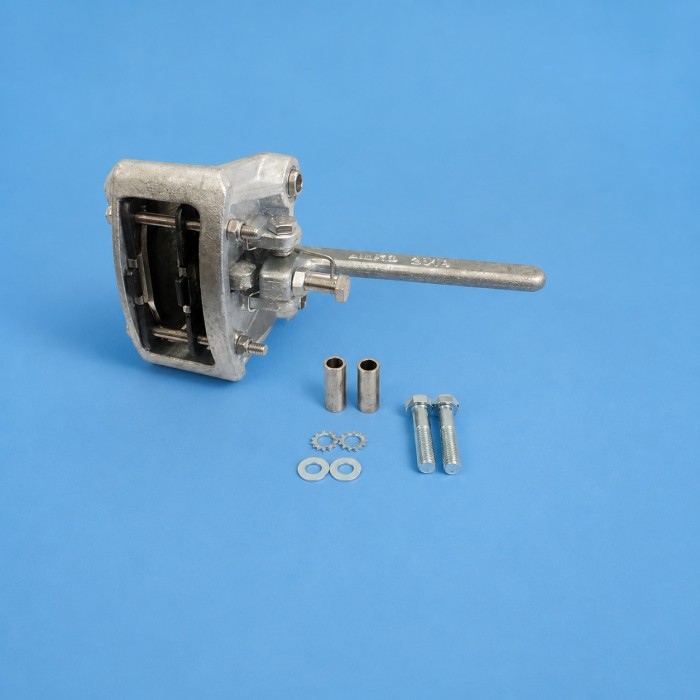

  • 1 x mechanical disc brake calipers
  • 2 x Zinc Plated Bolts 7/16 UNF x 2/14
  • 2 x 7/16 washers - shake proof
  • 2 x Flat zinc washers 7/16 x 7/8
  • Shipping Weight: 6.30 Kgs.
  • Shipping Dimensions: 14 cm x 29 cm x 30 cm.
