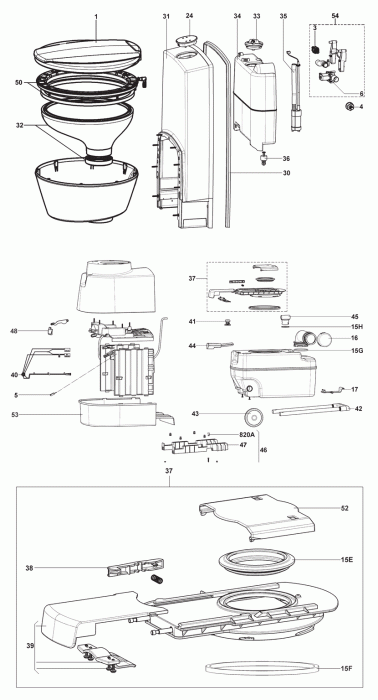

Spare Parts Diagram - Dometic CTS-4110 / CTS-3110 Cassette Toilet

Specifications

Key	Link	Model/Name
1		2426011199 Cover,complete
5		2426001760 Microswitch
6	Search	2426010498 Magnetic valve
015F		242601052 Slide Valve Seal (Bottom)
015H	Search	2426012593 O-ring,adaptor
015E		242601421 Cassette Inlet Seal
015G		242601487 O-ring & discharge pipe
16		242601488 Cap & Seal For Discharge Pipe
17		2426014318 Cassette Retainer
24		242601760 Controls,complete
29		2426015711 Complete Cassette
30		242601139 Rubber gasket,wall bracket
31		242601013 Rear Wall Housing
33	Search	2426011355 Cover,tank,complete
34	Search	2426011058 Tank
35	Search	2426011439 Pump,with,connection wiring,12V
36	Search	2426010795 Reed,sensor
37		2426014979 Slide Valve Complete
38	Search	2426010555 Lock,slider
38		2426013377 Lock,slider
39		242601155 Handle Slide Valve
41		242601180 Ventilation Button - complete
42	Search	2426010456 Grip,cassette
43	Search	2426010415 Wheel,cassette
44		242601134 Float complete
45		2426015489 Adaptor,ventilation
46	Search	2426011785 Retrofit kit,rails,toilet,CT(L)P 3110
47	Search	2426012338 Guide,rails,toilet
48		2426010175 Flap door,slider
50	Search	2426012940 Retainer,tray,sealant
52	Search	2426011611 Cover,intake
54		2426013104 Valve,complete,horizontal
