Identifying Seitz Windows & Replacement Parts

Article by CaravansPlus - Caravans Plus

The Seitz brand is owned by the Dometic group, and have proved to be very popular in Europe for many years.

Although the hatches have been available in Australia since the early 2000's, the window have recently started gaining ownership traction within Australia not only on imported UK and European caravans but also with the local caravan manufacturing sector.

Currently Dometic Australia import and support two types of Seitz windows, the S4 and S7P, however this is a less extensive range than offered in other foreign markets.

It is important to realise that CaravansPlus can only supply window types, sizes and spares for the range imported into Australia by Dometic Australia Pty. Ltd.

How to Identify Seitz Windows

In recent years there has been a large increase of Caravans being products with Maygood / Mobicool windows. These windows are nearly identical to the Dometic Seitz S4 however the parts are not interchangeable. The number one customer error we see is incorrectly identifying or assuming they have a Seitz window.

There are 2 easy ways to establish which type of window you have by checking either your existing blade/glazing or your internal blind (S4).

1) Check the top right hand corner of your window blade (when looking from the outside). In some light it may be hard to see but it will say either MOBICOOL or SEITZ / DOMETIC ( Seitz windows are now being branded as Dometic to bring in line with their new marketing campaign)

2) Check your internal blind, or more importantly the clips that connect the blind to flyscreen. The Mobicool will have black clips which a clearly branded, while the Seitz have light grey clips.

Mobicool vs Dometic Seitz  width=
Mobicool vs Dometic Seitz


Identifying S4 from S7P

Identifying Your Seitz Window is quite easy. You will see the major physical differences below. They include squared edges on the window 'blade' on the S4's, and rounded on S7P's.

Identifying S4 from S7P  width=
Identifying S4 from S7P

Determining Window Size

Put the tape measure away! You will find the inscribed numbers on the outside top right hand corner of the window 'blade'. This is the safest way to determine window size and it will also confirm you have a Dometic window.

The numbers we are most interested are highlighted below with red. Simple deciphering will show the size.

For S4 windows you will see a number like AGS50700X0300

Remove the prefix AGS5 and you have 0700X0300 - indicating you have a 700x300 window.

If you no longer have the blade you will need measure the outer frame. As with all caravan windows and doors the size is determined by the cut-out size they fit into, the overall dimensions of the outer frames are 45mm wider & 30mm higher.

For example the overall measurements of the outer frame for a 700x300 will be 745mm x 330mm.

Measuring S4 Windows width=
Measuring S4 Windows


For S7P Windows you will see a number like AGP70500X0400040

Measuring S7 Windows width=

Remove the prefix AGP7 & the suffix 040 and you have 0500X0400 - indicating you have a 500x400 window.

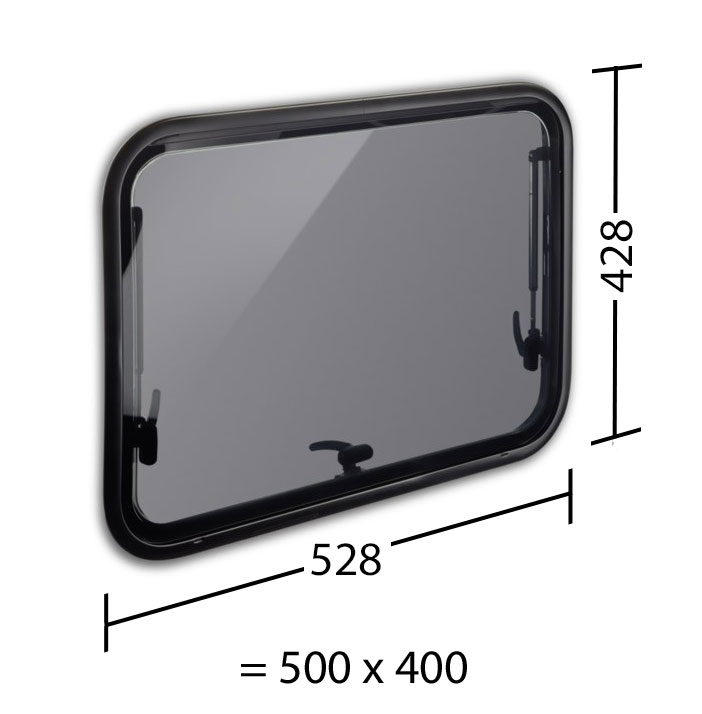

If you no longer have the blade you will need to measure the outer frame, the overall dimensions of the outer frame are 28mm larger than the window size. For example a 500x400 window will measure 528mm x 428mm.

Measuring S7 Windows width=
Measuring S7 Windows

With this knowledge in hand, it is then possible to apply these numbers to correctly identify spare parts that you may require such as stays, blades, blinds etc.


Identifying Correct Spares

For both S4 and S7P, window stays are offered as measurement, ie 250mm, 300mm, 400mm etc.

If you have identified your window as per the example above as being 700mm x 300mm, then you will need to order the 300mm stay appropriate to your window type; either S4 or S7P.

For everything else you will need to work with the full two numbers. This will prove to be straight forward when identifying the correct components.

Was this helpful?

4.7/5
(27 votes)

11 Comments

  • comment-avatar

    Anthony

    How do you work out what size blade you need when you have lost the blade.

  • comment-avatar

    Robert - CaravansPlus

    Hi Anthony, You can measure the outer frame, calculations are as follows: S4 - Overall dimensions of the outer frames are 45mm wider & 30mm higher. For example a 700x300 window will measure 745mm x 330mm. S7P - Overall dimensions of the outer frame are 28mm larger than the window size. For example a 500x400 window will measure 528mm x 428mm.

  • comment-avatar

    Glenda

    Hi, we are new caravaners and our window dropped out. It’s a dometic blade . I just wanted to know how to fit it back in the window socket.

  • comment-avatar

    Helen

    Thanks you so much for this amazing info about the windows. It makes it so easy to determine the size and model. Fantastic service.

  • comment-avatar

    John C

    It’s boring dealing with Caravansplus - they know their products, the price is ok, and it’s all finished before you can say” thank you for a good job again”

  • comment-avatar

    Neil Gow

    We have a Jayco van with Dometic with S7P windows which I have scratched and wish to replace the blade 1300* 510 can you advise how easy or hard it is to remove and replace. Regards Neil

  • comment-avatar

    kitazawa

    My window number is MC583 1300x0520.domestic. What window can i replace?

  • comment-avatar

    Peter M

    What is the colour of the flyscreen on the Seitz Flyscreen on Roller product? Cheers Peter.

  • comment-avatar

    Peter

    Hi team good information on the site we have Jayco Silverline 2017. Unfortunately due being over enthusiastic I have cracked the inside of our large window on the door side of the van. Label indicates the blade needed is a 900x900 ( AGP70900x0900040). How is is to replace and are there any good guides or instructions in doing this. Many Thanks, Peter.

  • comment-avatar

    Peter

    Hi team good information on the site we have Jayco Silverline 2017. Unfortunately due being over enthusiastic I have cracked the inside of our large window on the door side of the van. Label indicates the blade needed is a 900x900 ( AGP70900x0900040). How easy is to replace and are there any good guides or instructions in doing this. Many Thanks, Peter.

  • comment-avatar

    Glenn

    I have s7p windows in a jayco journey would like to open the side front windows higher is this possible needing about 150mm to 200mm as keep walking into them thanks
